FOOTREST (SEE NOTE)

GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

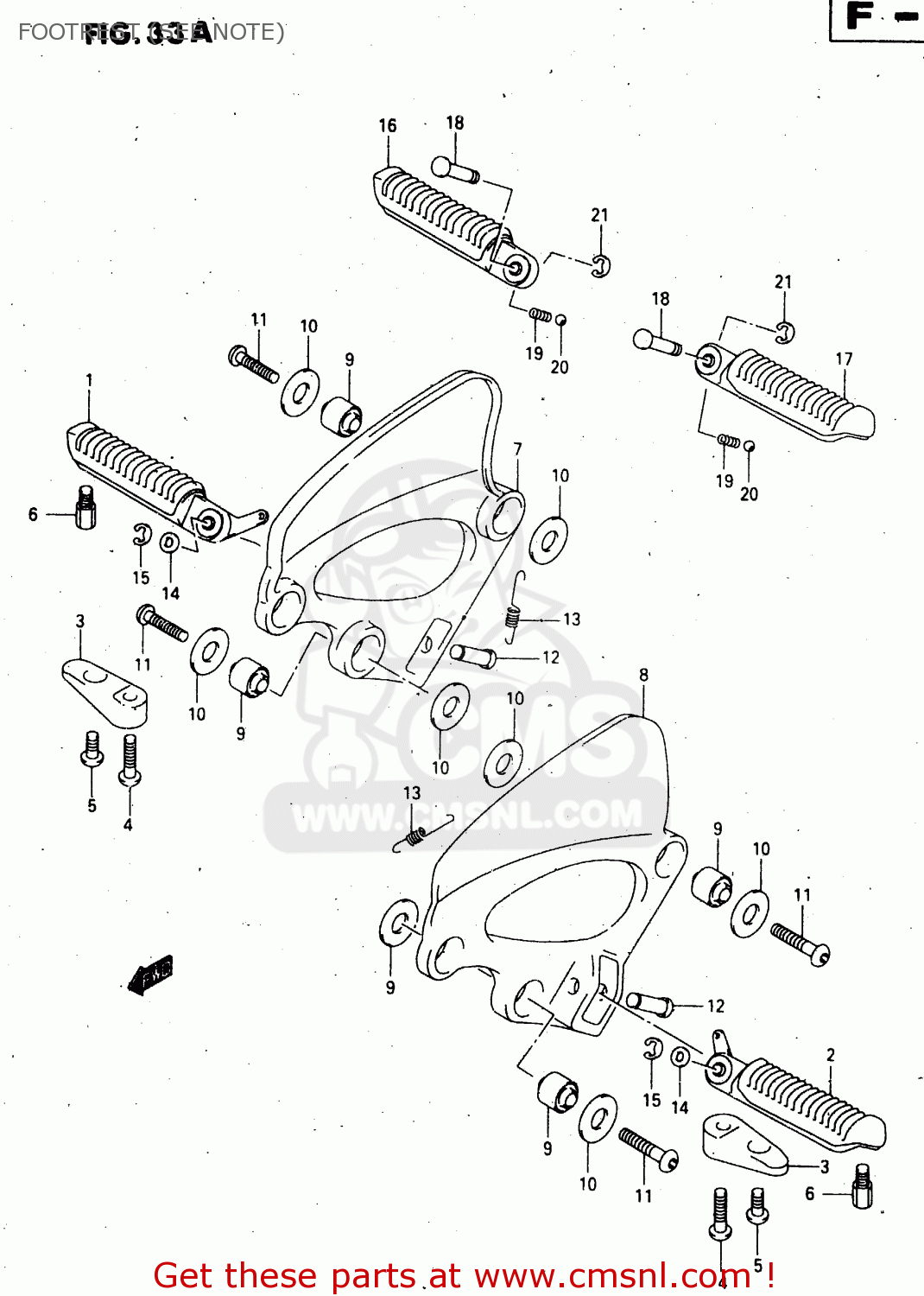

Footrest (see note) diagram GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

4351019C22
ref: 1

BAR,FR FOOTREST,R

€ 64.50

4352019C22
ref: 2

BAR,FR FOOTREST,L

€ 64.50

4353619C21
ref: 3

BALANCER,FR FOOTREST LWR

€ 36.50

0211205353
ref: 4

SCREW

€ 1.50

0211205203
ref: 5

SCREW

€ 2.50

4357607D01
ref: 6

BOLT,BANK SENSOR

€ 8.00

4351708FA0
ref: 7

HOLDER,FR FOOTREST,R

€ 71.50

4352708FA0
ref: 8

HOLDER,FR FOOTREST,L

€ 72.50

0931908036
ref: 9

BUSH(12X20X16)

€ 23.50

0916112009
ref: 10

WASHER(12.6X24X1.9)

€ 4.50

0910608080
ref: 11

BOLT L:30

€ 6.00

0920808010
ref: 12

PIN(8X33.2)

€ 3.00

0944310037
ref: 13

SPRING

€ 4.50

0832201083
ref: 14

WASHER

€ 1.50

0833211063
ref: 15

E.RING

€ 2.00

4361020C01
ref: 16

BAR,PILLION FOOTREST,R

€ 52.50

4371020C01
ref: 17

BAR,PILLION FOOTREST,L

€ 52.50

0920808011
ref: 18

PIN

€ 3.00

0944005005
ref: 19

SPRING

€ 1.50

0611107004
ref: 20

BALL

€ 1.50

0833211063
ref: 21

E.RING

€ 2.00

FOOTREST (SEE NOTE)

all assemblies
