TURN SIGNAL LAMP

GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

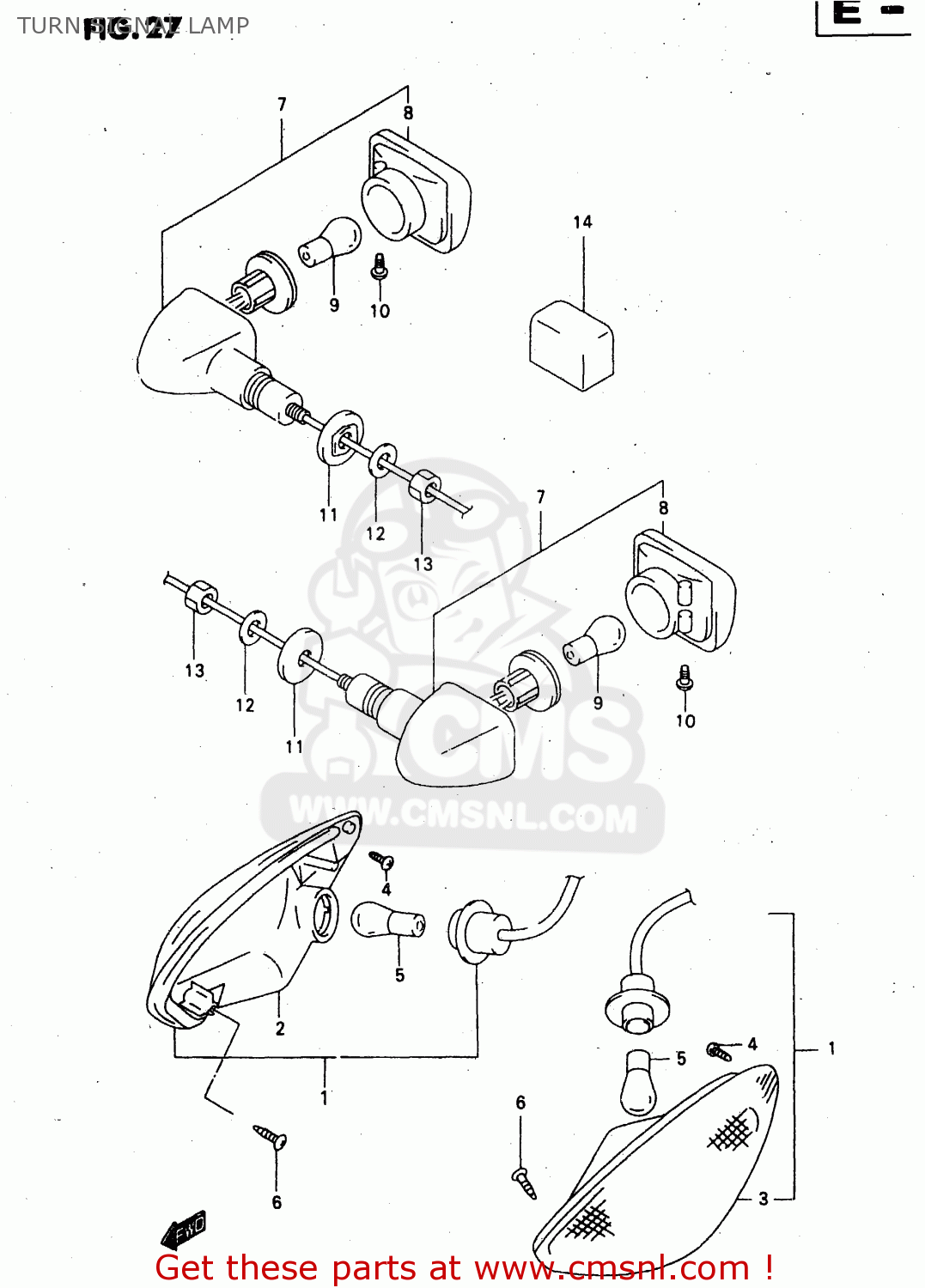

Turn signal lamp diagram GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

3560108F00
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 71.50

3560208F00
ref: 1

LAMP ASSY,FR TURN SIGNAL,L

€ 59.50

3561008F00
ref: 2

LAMP UNIT,R

€ 50.50

3563008F00
ref: 3

LAMP UNIT,L

€ 59.50

0913203012
ref: 4

SCREW(3X8)

€ 0.00

0947112045
ref: 5

BULB(12V21W)

€ 5.00

0354105163
ref: 6

SCREW

€ 1.50

3560333E30
ref: 7

LAMP ASSY,RR TURNSIGNAL,R

€ 70.50

3560433E30
ref: 7

LAMP ASSY,RR TURNSIGNAL,L

€ 70.50

3561033E00
ref: 8

LAMP UNIT

€ 31.00

0947112045
ref: 9

BULB(12V21W)

€ 5.00

0324204123
ref: 10

SCREW

€ 2.00

3569517C00
ref: 11

SPACER,RR TURNSIGNAL

€ 3.00

0916010501
ref: 12

WASHER(10.5X30X2.3)

€ 2.50

0831000103
ref: 13

NUT

€ 2.00

3861003F00
ref: 14

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

TURN SIGNAL LAMP

all assemblies
