REAR CUSHION LEVER

GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

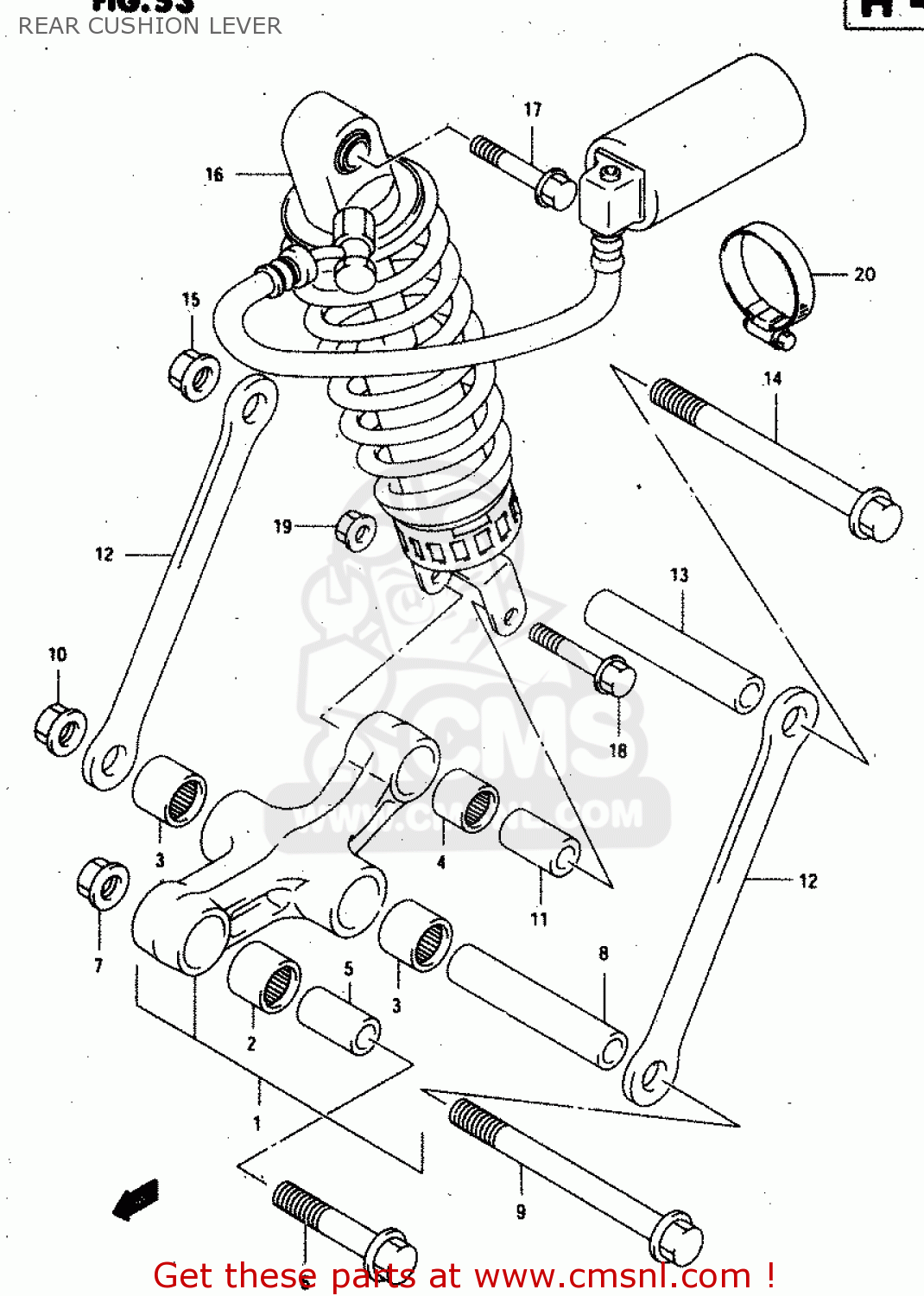

Rear cushion lever diagram GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

6260008810
ref: 1

LEVER SET,RR CUSHION

€ 350.00

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

0918014014
ref: 5

SPACER(14X20X34)

€ 11.50

0910314012
ref: 6

BOLT(14X62)

€ 6.00

0831931148
ref: 7

NUT

€ 9.00

6231740C10
ref: 8

SPACER,RR CUSHION ROD

€ 28.50

6265840C10
ref: 9

SHAFT,RR CUSHION ROD

€ 21.50

0831931148
ref: 10

NUT

€ 9.00

6268440A10
ref: 11

SPACER,RR CUSHION LEVER

€ 11.50

6264108F00
ref: 12

ROD,RR CUSHION

€ 25.00

6231740C10
ref: 13

SPACER,RR CUSHION ROD

€ 28.50

6265840C10
ref: 14

SHAFT,RR CUSHION ROD

€ 21.50

0831931148
ref: 15

NUT

€ 9.00

6210008FA0
ref: 16

ABSORBER,RR SH

€ 1,428.00

0910310213
ref: 17

BOLT(10X52)

€ 4.00

0910310086
ref: 18

BOLT(10X44)

€ 5.50

0831931103
ref: 19

NUT

€ 3.00

0940250511
ref: 20

CLAMP

€ 8.50
