OIL PUMP

GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

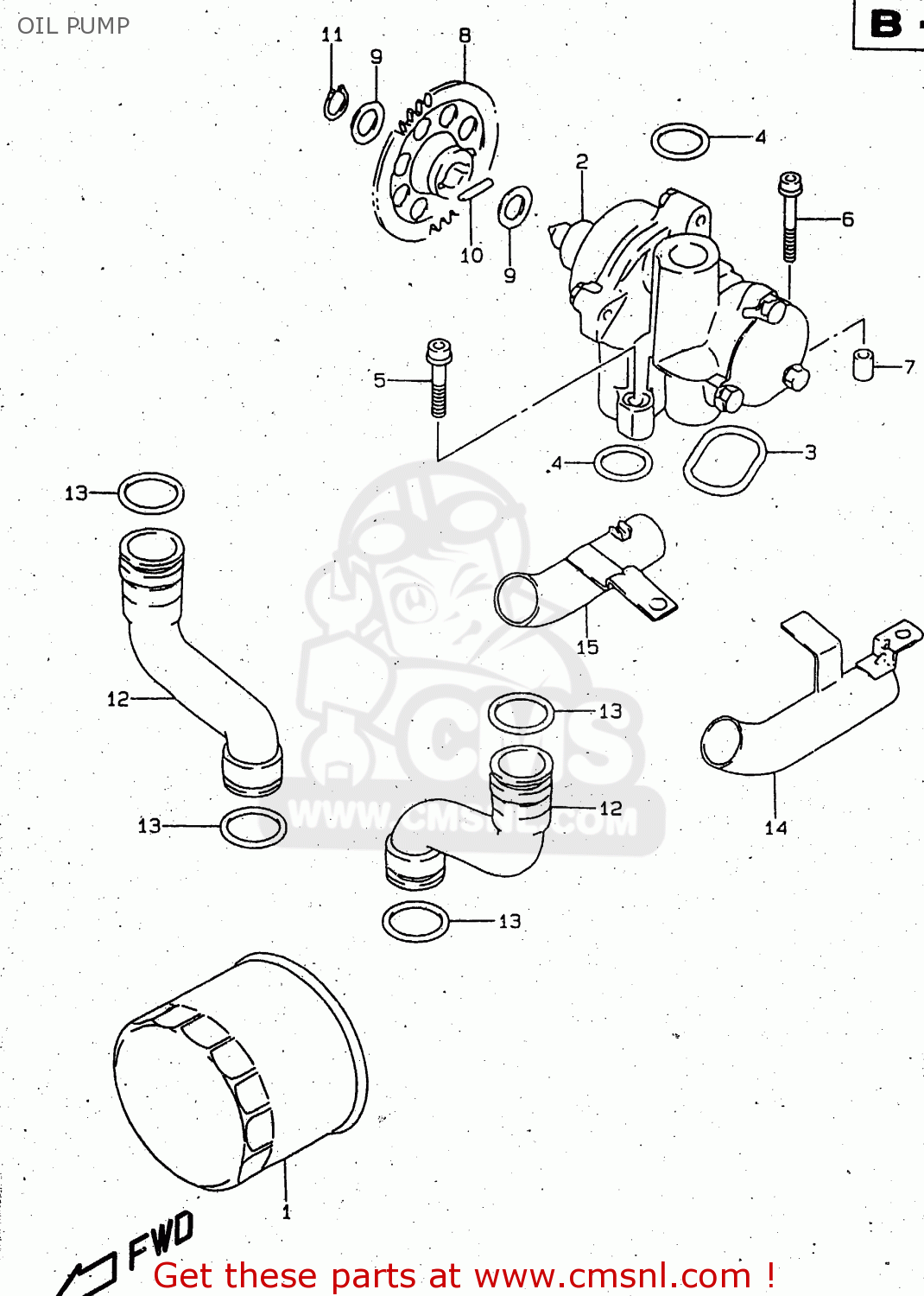

Oil pump diagram GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1651034E00
ref: 1

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

1640006B30
ref: 2

PUMP ASSY,OIL

€ 382.50

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

0910606089
ref: 5

BOLT(6X30)

€ 4.00

0910606088
ref: 6

BOLT(6X35)

€ 2.50

0421109129
ref: 7

PIN

€ 2.00

1633219C00
ref: 8

GEAR,OIL PUMP DRIVEN(NT:37)

€ 60.00

0822112205
ref: 9

SHIM

€ 1.50

0926105006
ref: 10

PIN(5X18)

€ 1.50

0833131126
ref: 11

CIRCLIP,12 MM

€ 2.00

1648117D00
ref: 12

PIPE,OIL OUTLET

€ 47.00

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

1653027A02
ref: 14

PIPE,OIL OUTLET UNDER,L

€ 22.00

1654027A02
ref: 15

PIPE,OIL OUTLET UNDER,R

€ 23.00
