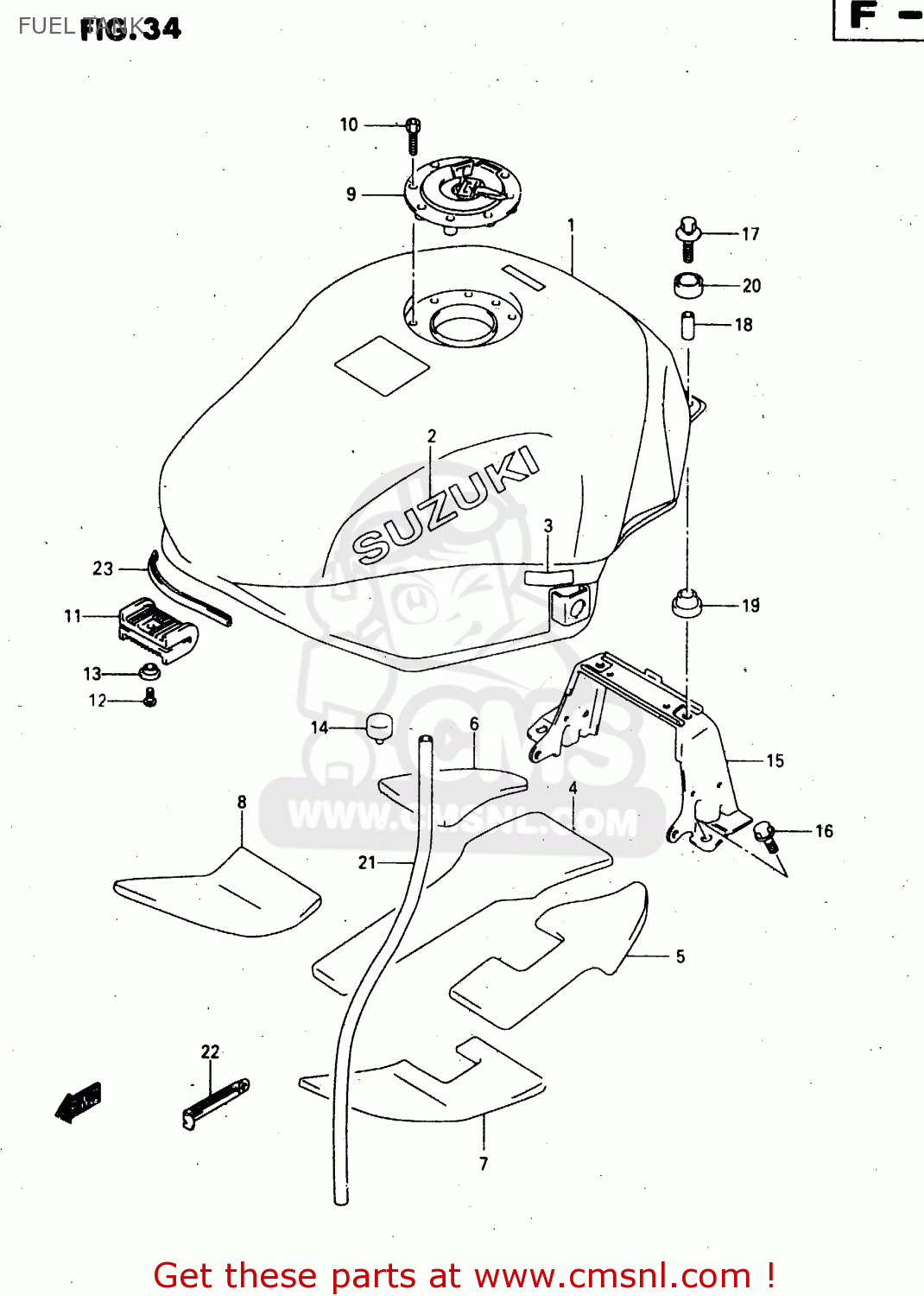

FUEL TANK

ref

part #

description

quantity

1

4410008F0033J
ref: 1

TANK ASSEMBLY,FUEL

€ 902.00

1

4410008F001UH
ref: 1
MODEL W

TANK ASSY,FUEL

€ 486.50

1

4410008F00Y4M
ref: 1

TANK ASSEMBLY,FUEL

€ 440.50

1

4410008F00Y7H
ref: 1
MODEL X

TANK ASSEMBLY,FUEL

€ 803.00

2

6811147C0020H
ref: 2

EMBLEM,FUEL TANK

€ 13.00

3

3285110D00
ref: 3

PROTECTOR(12X40)

€ 4.50

4

4419108F00
ref: 4

SHIELD,FUEL TANK HEAT NO.1

€ 35.00

5

4419208F00
ref: 5

SHIELD,FUEL TANK HEAT NO.2

€ 31.50

6

4419308F00
ref: 6

SHIELD,FUEL TANK HEAT NO.3

€ 15.50

7

4419408F00
ref: 7

SHIELD,FUEL TANK HEAT NO.4

€ 17.00

8

4419508F00
ref: 8

SHIELD,FUEL TANK HEAT NO.5

€ 19.00

9

4420033870
ref: 9

CAP SET,FUEL TANK

€ 253.50

10

0910605017
ref: 10

BOLT(5X20)

€ 3.00

11

4451033D00
ref: 11

CUSHION,FUEL TANK FR

€ 23.50

12

0214205123
ref: 12

SCREW 5X12

€ 1.50

13

0916905012
ref: 13

WASHER

€ 3.00

14

0932110011
ref: 14

CUSHION

€ 3.00

15

4455008F00
ref: 15

BRACKET,FUEL TANK RR

€ 38.50

16

0155008163
ref: 16

BOLT

€ 3.00

17

0911606172
ref: 17

BOLT(6X30)

€ 2.50

18

0918006271
ref: 18

SPACER(6.5X9X18)

€ 2.00

19

0932010038
ref: 19

CUSHION

€ 4.00

20

0932014017
ref: 20

CUSHION

€ 3.00

21

4442308F00
ref: 21

HOSE,FUEL TANK WATER DRAIN

€ 20.00

22

0940408420
ref: 22

CLAMP(L:120 T:1.0)

€ 3.50

23

6824108F00
ref: 23

MOLDING,FUEL TANK

€ 6.50
