OIL PAN

GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

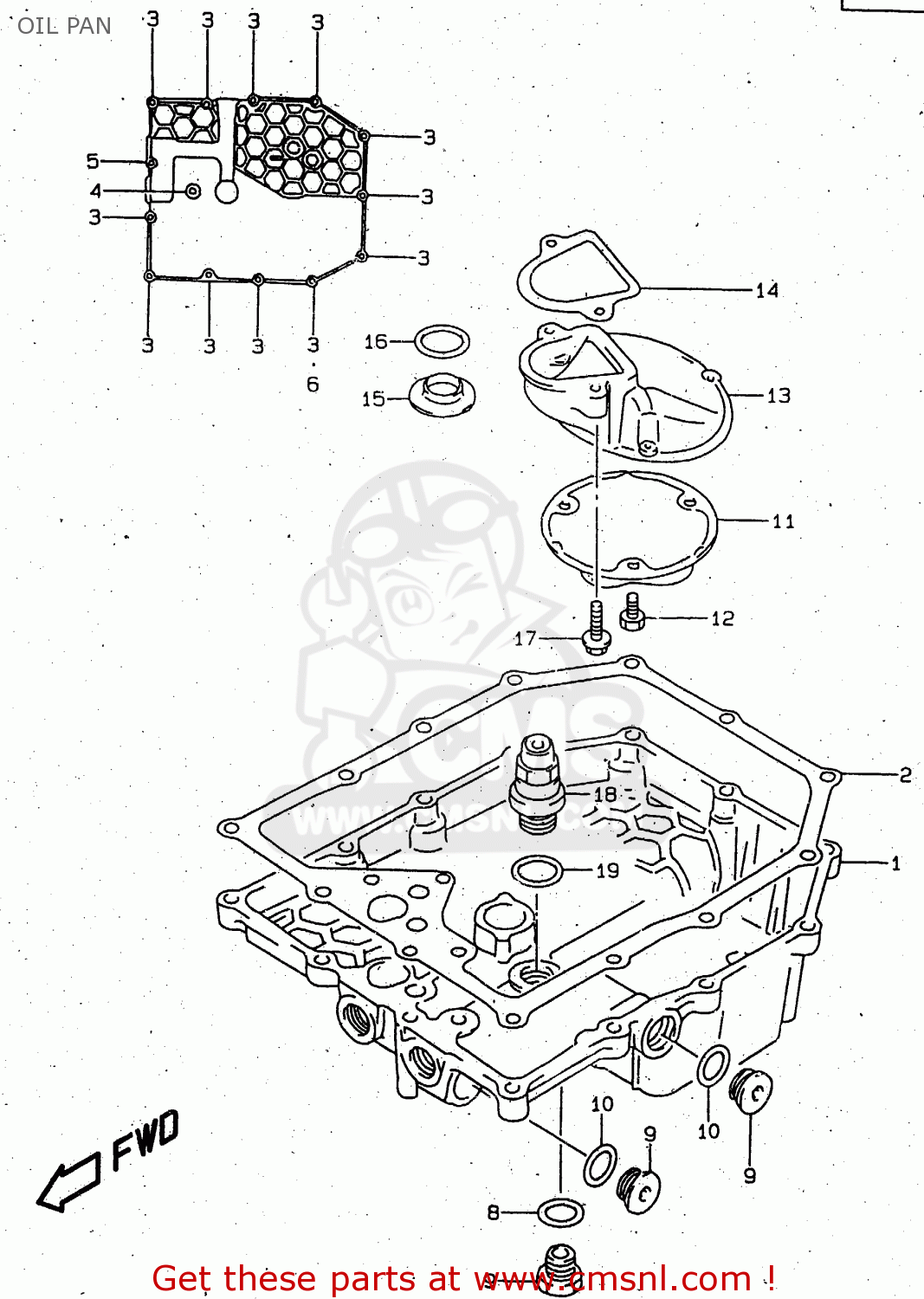

Oil pan diagram GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1151126E00
ref: 1

PAN,OIL

€ 260.50

1148927A20
ref: 2

GASKET,OIL PAN (NAS)

€ 23.00

0155006253
ref: 3

BOLT

€ 2.50

0155006303
ref: 4

BOLT

€ 2.50

0155006503
ref: 5

BOLT

€ 2.00

0916806024
ref: 6

GASKET(5.8X11X1.2) (NAS)

€ 2.00

0924714001
ref: 7

PLUG

€ 5.00

0916814002
ref: 8

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

0924816010
ref: 9

PLUG

€ 4.50

0916816002
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

1652009301
ref: 11

STRAINER,ENGINE OIL

€ 14.00

0157006123
ref: 12

BOLT

€ 1.50

1652506B00
ref: 13

PROTECTOR,OIL STRAINER

€ 33.50

1652827A20
ref: 14

GASKET,OIL STRAINER PROTECTOR (NAS)

€ 9.00

1652927A01
ref: 15

GASKET,OIL OUTLET (NAS)

€ 2.00

0928018009
ref: 16

O RING(D:3.2,ID:17.8)

€ 8.00

0155006253
ref: 17

BOLT

€ 2.50

1644017C01
ref: 18

VALVE ASSEMBLY,OIL RELIEF

€ 68.50

0916816002
ref: 19

GASKET(16X22X2) (NAS)

€ 2.00
