OIL COOLER

GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

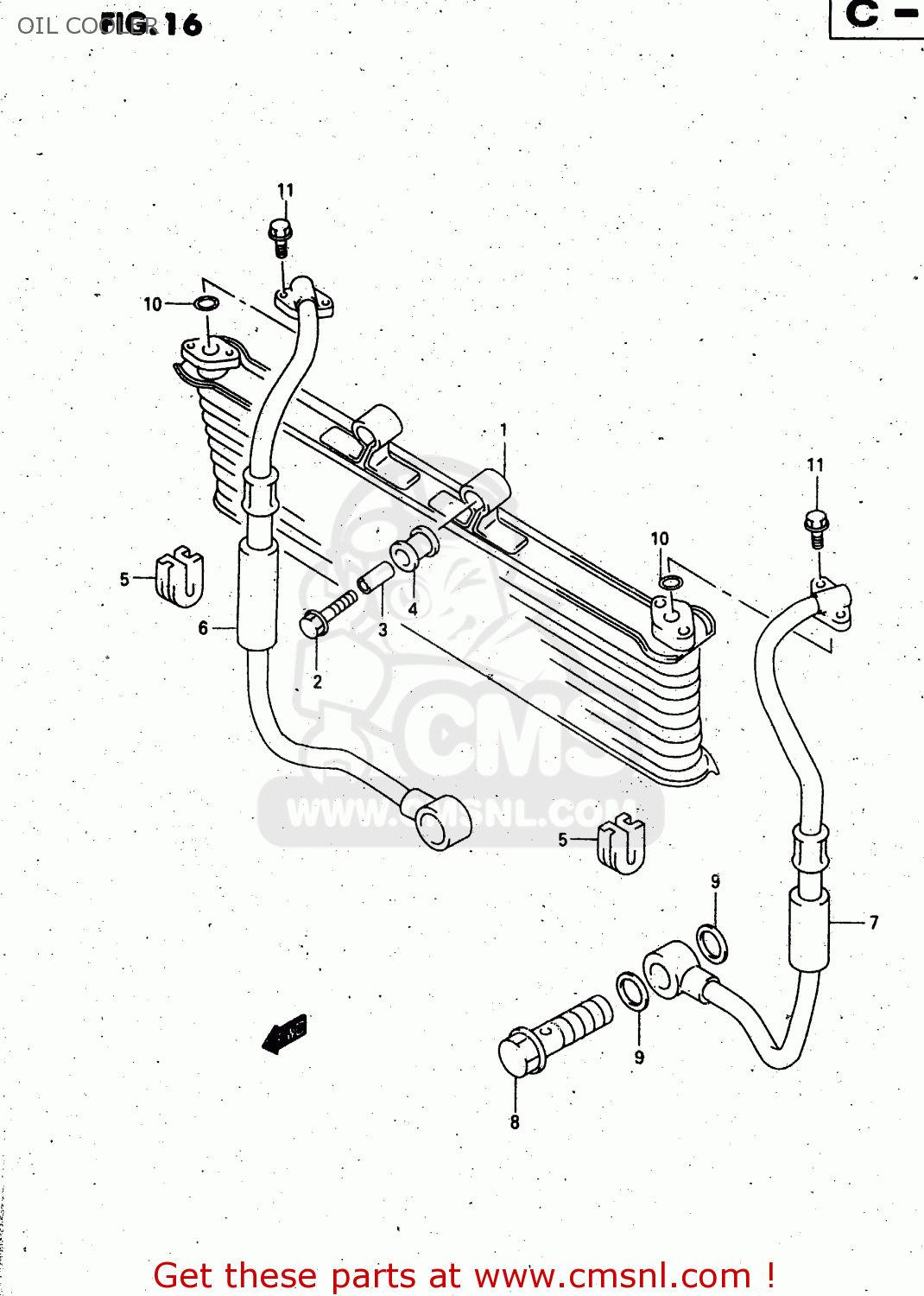

Oil cooler diagram GSX750F 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1660008F10
ref: 1

COOLER ASSY,OIL

€ 1,081.00

0911808131
ref: 2

BOLT(8X40)

€ 3.50

0918008304
ref: 3

SPACER(8.5X12X25)

€ 7.00

1662927A01
ref: 4

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 5

CUSHION,OIL COOLER NO.2

€ 3.00

1646008F00
ref: 6

HOSE COMP,OIL COOLER,RIGHT

€ 173.00

1647008F00
ref: 7

HOSE COMP,OIL COOLER,LEFT

€ 173.00

0936016002
ref: 8

BOLT UNION

€ 12.00

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

0928012012
ref: 10

O RING(D:2.4,ID:11.8)

€ 5.00

0713006163
ref: 11

BOLT,OIL FILLE

€ 3.00

all assemblies
