CARBURETOR
GSX750F 2000 (Y)

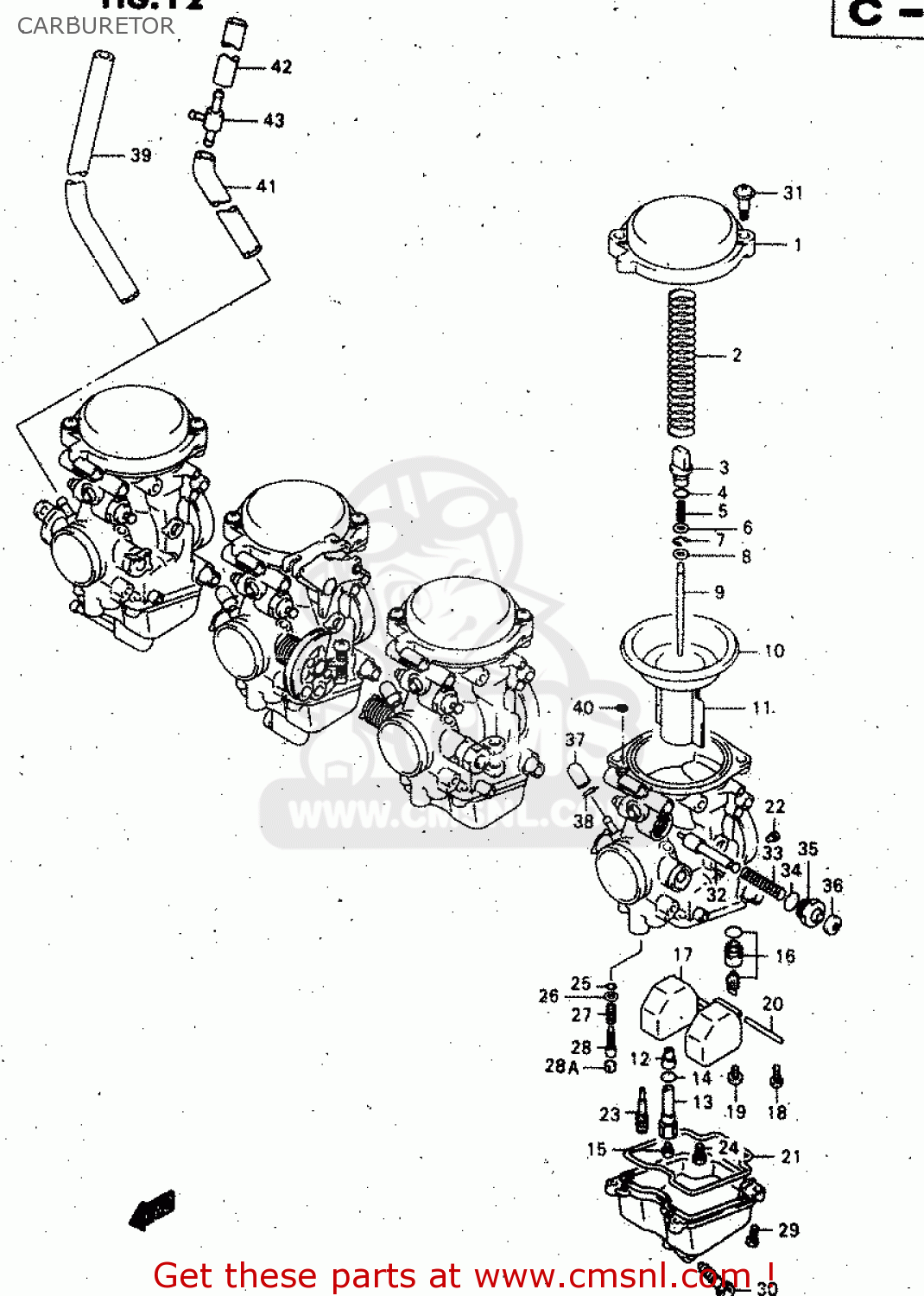

Carburetor diagram GSX750F 2000 (Y)
CARBURETOR GSX750F 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
0
1320108F00
ref: 0
CARBURETOR ASS
€ 543.50
0
1320108F10
ref: 0
E18
CARBURETOR ASSY, LH
€ 0.00
0
1320108F50
ref: 0
P37
CARBURETOR ASSY, LH
€ 0.00
0
1320208F00
ref: 0
CARBURETOR ASS
€ 576.50
0
1320208F10
ref: 0
E18
CARBURETOR ASSY, ML
€ 361.00
0
1320208F50
ref: 0
P37
CARBURETOR ASSY, ML
€ 0.00
0
1320308F00
ref: 0
CARBURETOR ASS
€ 644.50
0
1320308F10
ref: 0
E18
CARBURETOR ASSY, MR
€ 0.00
0
1320308F50
ref: 0
P37
CARBURETOR ASSY, MR
€ 0.00
0
1320408F00
ref: 0
CARBURETOR ASS
€ 543.50
0
1320408F10
ref: 0
E18
CARBURETOR ASSY, RH
€ 0.00
0
1320408F50
ref: 0
P37
CARBURETOR ASSY, RH
€ 0.00
1
1350208F00
ref: 1
COVER,DIAPHRAGM
€ 32.00
1
1350208F10
ref: 1
E18
COVER,DIAPHRAGM
€ 0.00
2
1357333E00
ref: 2
SPRING
€ 10.50
3
1341833E00
ref: 3
HOLDER
€ 4.50
4
0928005004
ref: 4
O RING(D:1.9,ID:4.8)
€ 2.00
5
1348133E00
ref: 5
SPRING
€ 3.00
6
1338219E00
ref: 6
WASHER
€ 3.00
7
1339417E60
ref: 7
E RING,MULTIPLE JET NOZZLE
€ 1.50
8
1338733E00
ref: 8
RING
€ 5.00
9
1338308F00
ref: 9
NEEDLE,JET
€ 19.00
9
1338308F10
ref: 9
E18
NEEDLE, JET (5DF19-53-3)
€ 0.00
10
1350717C01
ref: 10
DIAPHRAGM
€ 24.50
11
1350108F00
ref: 11
VALVE,PISTON
€ 83.50
12
0949400910
ref: 12
JET,NEEDLE(P-0)
€ 38.50
13
1338508F00
ref: 13
HOLDER,JET
€ 32.00
14
1324643010
ref: 14
O RING
€ 4.00
15
0949123019
ref: 15
JET,MAIN
€ 11.50
15
0949124026
ref: 15
E18
JET,MAIN(120)
€ 14.00
15
0949123019
ref: 15
E18
JET,MAIN
€ 11.50
16
1337008F00
ref: 16
VALVE ASSEMBLY,NEEDLE
€ 68.50
16
1337008F50
ref: 16
P37
VALVE ASSY,NEEDLE
€ 68.50
17
1325004F00
ref: 17
FLOAT ASSY
€ 27.50
18
0211204083
ref: 18
SCREW
€ 2.00
19
1360205A10
ref: 19
SCREW
€ 4.00
20
1325401010
ref: 20
PIN,FLOAT
€ 3.00
21
1325804F00
ref: 21
GASKET (NAS)
€ 9.00
22
0949226002
ref: 22
JET,POWER(130)
€ 16.50
22
0949328013
ref: 22
E18
JET,PILOT AIR(140)
€ 10.50
23
0949215017
ref: 23
JET,PILOT(15)
€ 19.50
23
0949212008
ref: 23
E18
JET,PILOT(12.5)
€ 14.00
24
0949150006
ref: 24
JET,STARTER(50)
€ 15.00
25
1329529900
ref: 25
O RING,PILOT AIR SCREW
€ 4.00
26
1329129900
ref: 26
WASHER
€ 2.00
27
1326848700
ref: 27
SPRING,THROTTLE SCREW
€ 3.50
28
1327933E00
ref: 28
ADJUSTER
€ 9.50
28
1327933E00
ref: 28
ADJUSTER
€ 9.50
28
1327933E00
ref: 28
E18
ADJUSTER
€ 9.50
28
1327933E00
ref: 28
P37
ADJUSTER
€ 9.50
28A
1328105A00
ref: 28A
E18
PLUG
€ 3.50
29
0211204107
ref: 29
SCREW
€ 2.00
30
1324713A00
ref: 30
SCREW,DRAIN
€ 5.50
31
1324733E00
ref: 31
SCREW
€ 3.00
32
1341105300
ref: 32
PLUNGER
€ 23.50
33
1341726D00
ref: 33
SPRING
€ 5.50
34
1327847090
ref: 34
O RING
€ 2.00
35
1341844080
ref: 35
GUIDE SCREW,PLUNGER
€ 8.00
36
1368231210
ref: 36
CAP,STARTER VALVE
€ 5.00
37
1327484000
ref: 37
LH, ML, MR
CAP
€ 5.50
38
0940106101
ref: 38
LH, ML, MR
CLIP
€ 2.50
39
1368319E10
ref: 39
RH, EXCEPT E18
HOSE
€ 22.00
40
1329533010
ref: 40
O RING
€ 4.50
41
1368319E40
ref: 41
E18
HOSE
€ 22.00
42
1368319E30
ref: 42
E18
HOSE
€ 0.00
43
1368548B00
ref: 43
E18
NIPPLE
€ 9.00
