STARTING MOTOR

GSX750F 2000 (Y)

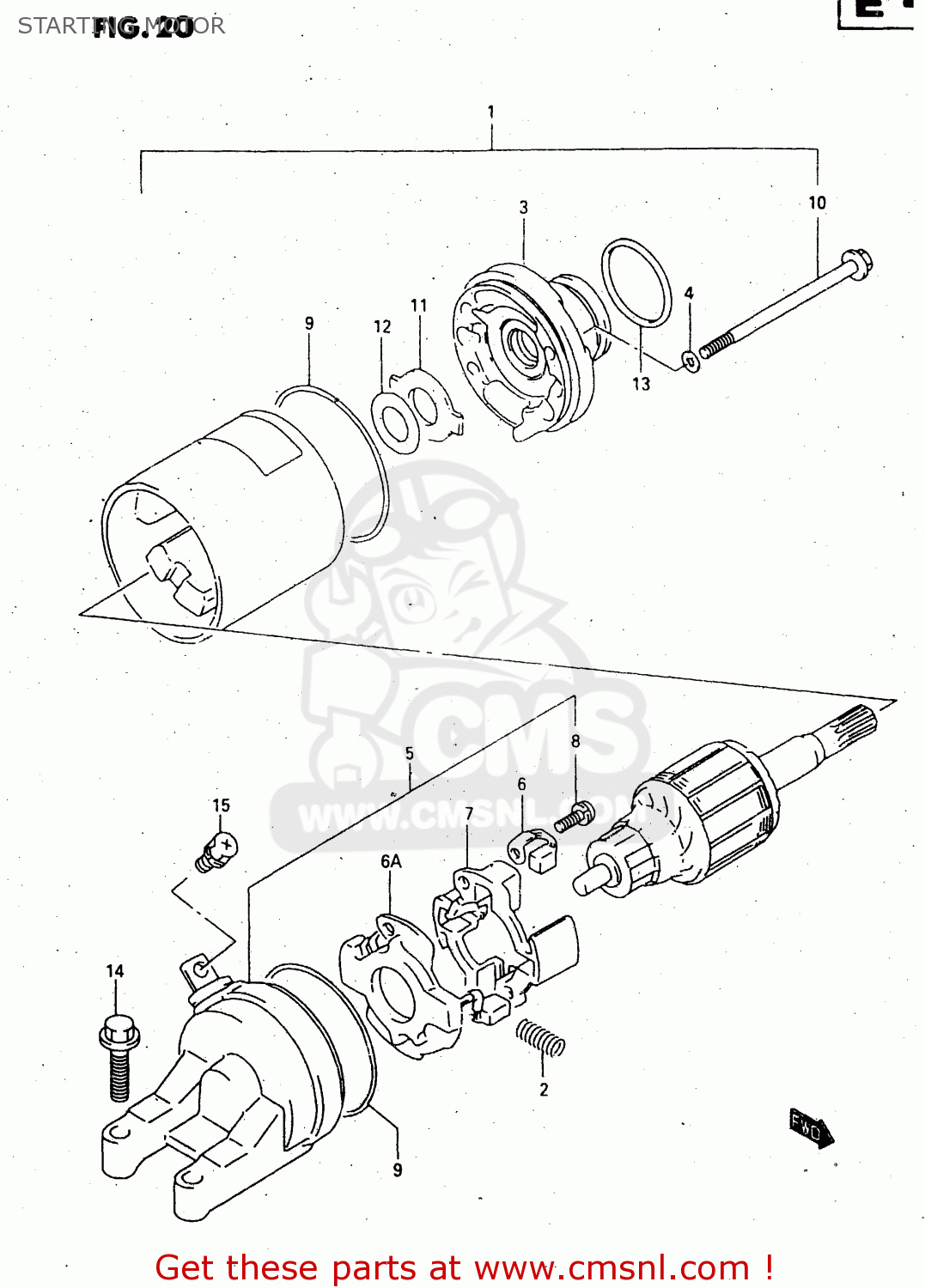

Starting motor diagram GSX750F 2000 (Y)

STARTING MOTOR GSX750F 2000 (Y)

STARTING MOTOR GSX750F 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

3110008F00
ref: 1

MOTOR ASSY,STARTING

€ 999.00

2

3113532C10
ref: 2

SPRING

€ 3.50

3

3115008F00
ref: 3

BRACKET

€ 87.50

4

3115638300
ref: 4

O RING

€ 3.00

5

3117508F00
ref: 5

FRAME ASSY,COMMUTATOR

€ 143.50

6

3113232C10
ref: 6

BRUSH

€ 14.50

6A

3113032C20
ref: 6A

BRUSH SUB ASSY,STARTER

€ 28.00

7

3113332C10
ref: 7

HOLDER,BRUSH

€ 9.00

8

0211234123
ref: 8

SCREW

€ 2.00

9

3126432C10
ref: 9

O RING

€ 9.00

10

3128132C10
ref: 10

BOLT

€ 8.50

11

3136132C10
ref: 11

PLATE,LOCK

€ 2.50

12

3136138300
ref: 12

SHIM

€ 1.50

13

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

14

0912806024
ref: 14

SCREW (6X25)

€ 2.50

15

0913705004
ref: 15

SCREW(5X8)

€ 2.00
