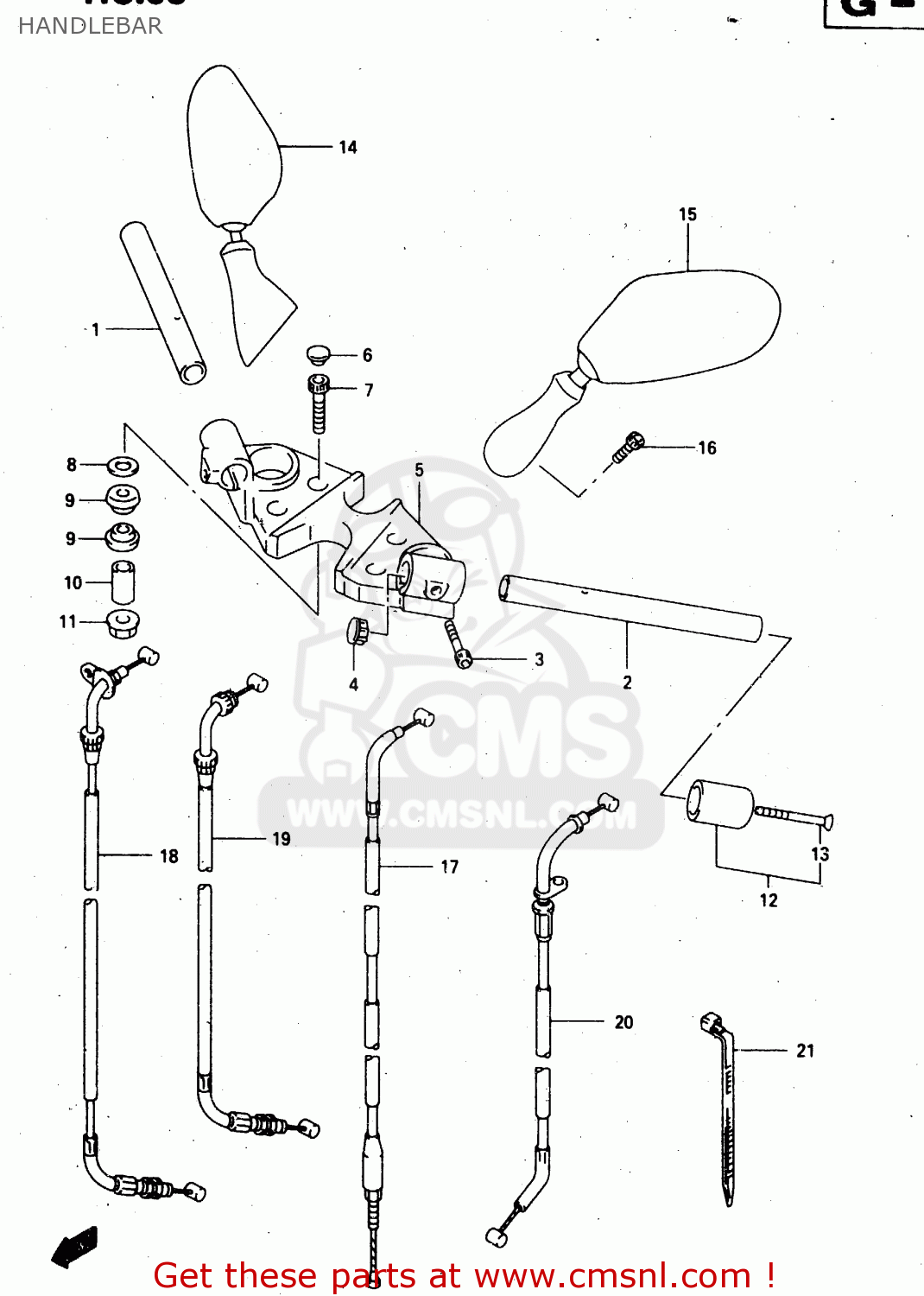

HANDLEBAR

ref

part #

description

quantity

1

5611008F00
ref: 1

HANDLEBAR COMP,RIGHT

€ 34.00

2

5615008F00
ref: 2

HANDLEBAR COMP,LEFT

€ 34.00

3

0713008303
ref: 3

BOLT

€ 3.00

4

5721533400
ref: 4

CAP,HANDLEBAR

€ 4.00

5

5621108F00
ref: 5

HOLDER,HANDLEBAR,R

€ 346.50

6

0925008014
ref: 6

CAP(OD:12)

€ 3.50

7

0713010707
ref: 7

BOLT

€ 4.50

8

0916010094
ref: 8

WASHER(10.5X30X3.2)

€ 3.50

9

5624042A00
ref: 9

RUBBER,HANDLE HOLDER

€ 23.00

10

5624320C00
ref: 10

SPACER,HANDLEBAR BRACKET

€ 5.50

11

0831931107
ref: 11

NUT

€ 3.00

12

5620008830
ref: 12

BALANCER SET,HANDLEBAR

€ 47.50

13

0212206603
ref: 13

SCREW

€ 3.00

14

5650008F10
ref: 14

MIRROR ASSY,RR VIEW,R

€ 376.00

15

5660008F10
ref: 15

MIRROR ASSY,RR VIEW,L

€ 289.50

16

0713006163
ref: 16

BOLT,OIL FILLE

€ 3.00

17

5820008F00
ref: 17

CABLE ASSY,CLUTCH

€ 37.50

18

5830008F00
ref: 18

CABLE ASSY,THROTTLE NO.1

€ 43.00

19

5830008F10
ref: 19

CABLE ASSY,THROTTLE NO.2

€ 41.00

20

5841008F00
ref: 20

CABLE,STARTER

€ 33.50

21

0940725401
ref: 21

CLAMP(L:235)

€ 4.00

all assemblies
