MUFFLER

GSX750F 2000 (Y)

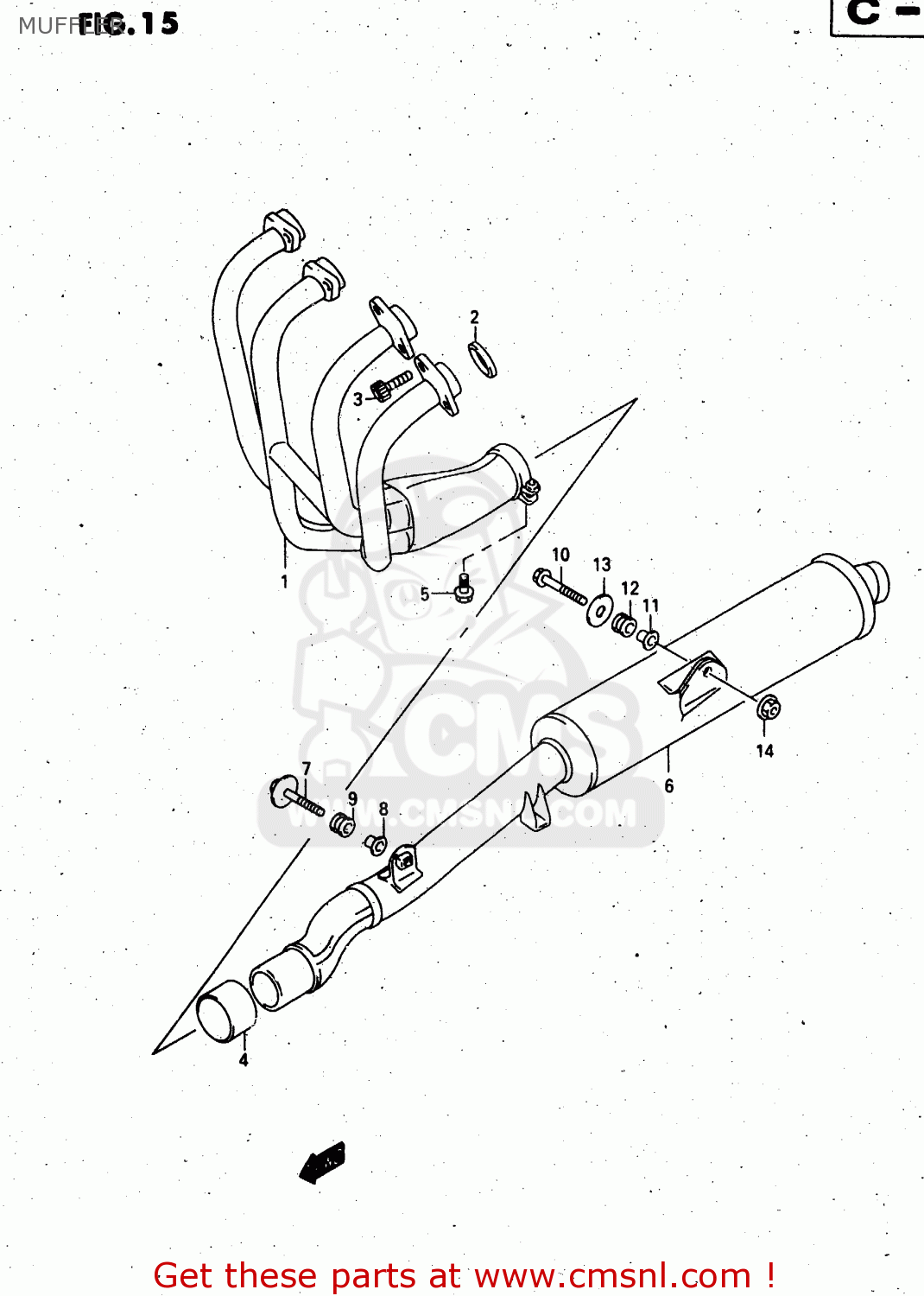

Muffler diagram GSX750F 2000 (Y)

MUFFLER GSX750F 2000 (Y)

MUFFLER GSX750F 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1410019E10
ref: 1

EXHAUST

€ 721.50

2

1418118C00
ref: 2

GASKET,EXHAUST (NAS)

€ 6.50

3

0713008257
ref: 3

BOLT

€ 3.50

4

1477127E00
ref: 4

CONNECTOR,MUFFLER

€ 29.00

5

0155008403
ref: 5

BOLT

€ 3.50

6

1431019E10H01
ref: 6

BODY,MUFFLER

€ 957.00

7

0911808068
ref: 7

BOLT 8X40

€ 7.50

8

0918008152
ref: 8

SPACER(8.6X12X24.2)

€ 6.00

9

0932012048
ref: 9

CUSHION

€ 5.00

10

0155008457
ref: 10

BOLT

€ 4.00

11

0918008156
ref: 11

SPACER(8.6X12X27.1)

€ 6.50

12

0932012049
ref: 12

CUSHION

€ 9.00

13

0916008140
ref: 13

WASHER (8.5X33X1.6)

€ 3.00

14

0836125088
ref: 14

NUT

€ 2.50
