SIGNAL GENERATOR

GSX750F 2000 (Y)

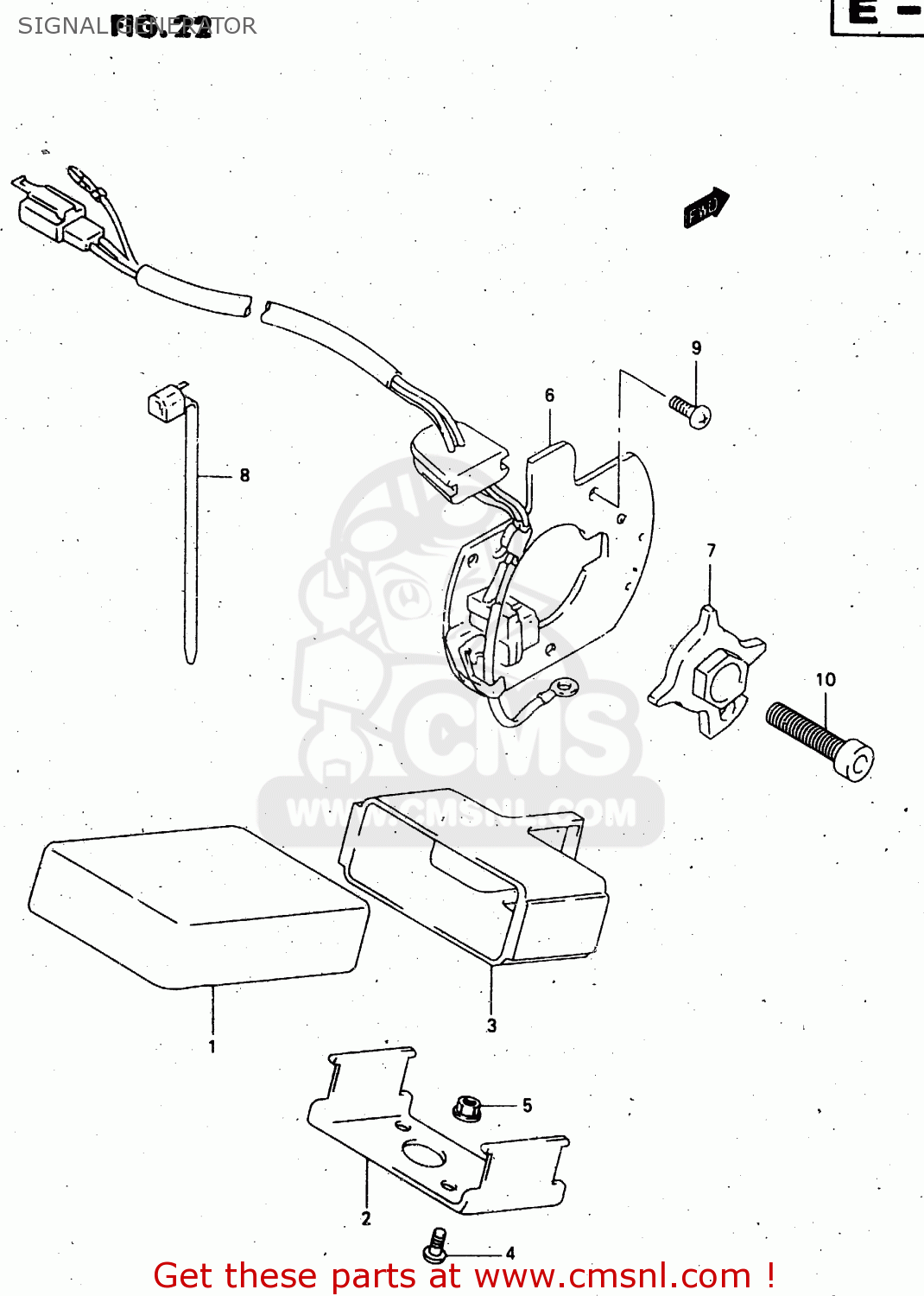

Signal generator diagram GSX750F 2000 (Y)

SIGNAL GENERATOR GSX750F 2000 (Y)

SIGNAL GENERATOR GSX750F 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

3290008F10
ref: 1

IGNITOR ASSY

€ 508.00

1

3290008F50
ref: 1
E18

IGNITER ASSY

€ 0.00

2

3293308F00
ref: 2

BRACKET,IGNITOR

€ 4.50

3

3298040C01
ref: 3

CUSHION,IGNITOR

€ 9.50

4

0214205123
ref: 4

SCREW 5X12

€ 1.50

5

0831610053
ref: 5

NUT

€ 2.50

6

3311017C00
ref: 6

GENERATOR ASSY,SIGNAL

€ 324.00

7

3312019C20
ref: 7

ROTOR,SIGNAL GENERATOR

€ 182.00

8

0940714403
ref: 8

CLAMP(L:125)

€ 2.50

9

0211205103
ref: 9

SCREW

€ 2.00

10

0713008303
ref: 10

BOLT

€ 3.00
