FRAME

GSX750F 2000 (Y)

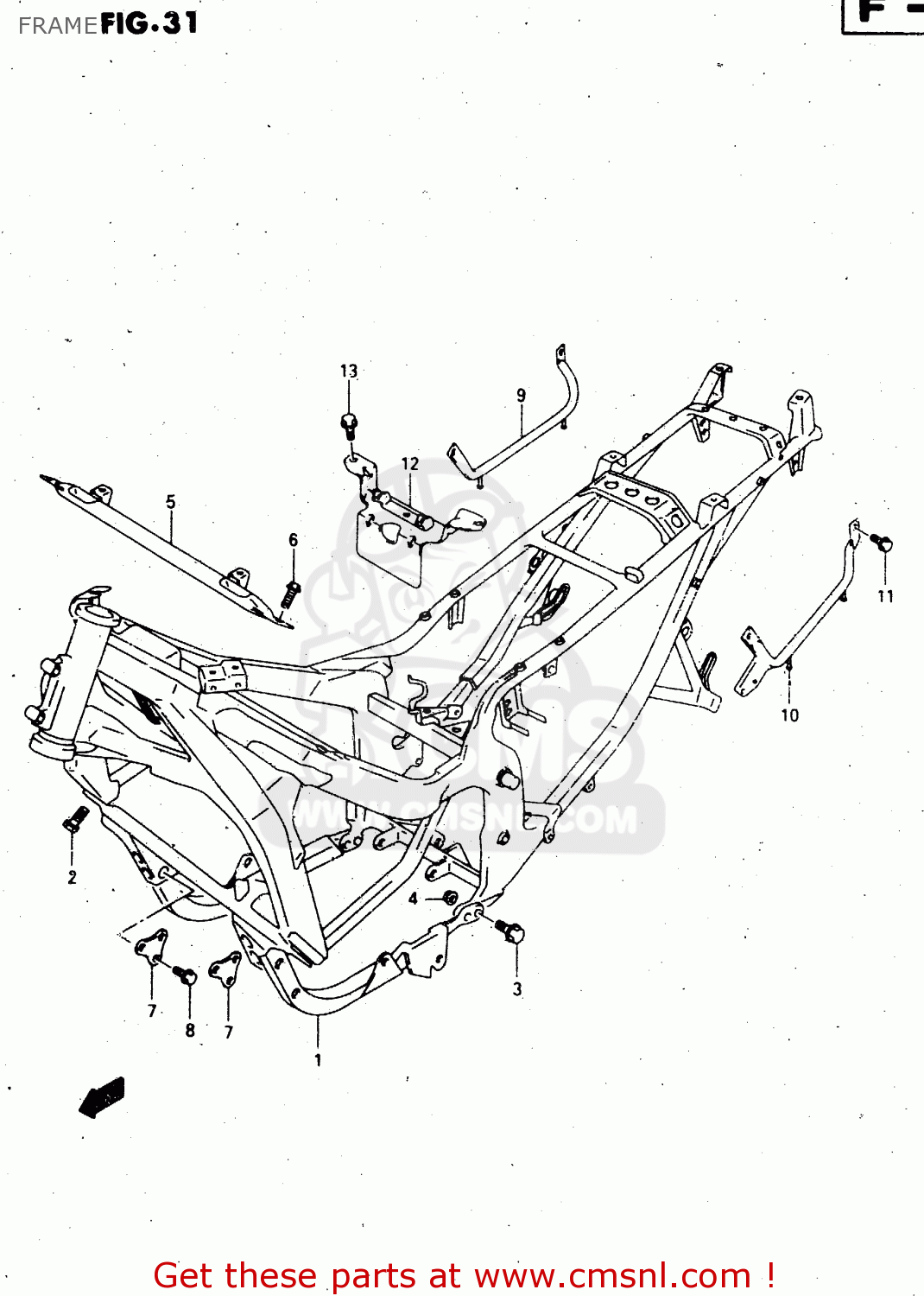

Frame diagram GSX750F 2000 (Y)

FRAME GSX750F 2000 (Y)

FRAME GSX750F 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

4110008FA0019
ref: 1

FRAME (BLACK)

€ 2,951.50

1

4110008FB0019
ref: 1
E18

FRAME (BLACK)

€ 2,951.50

2

0157008253
ref: 2

BOLT

€ 2.50

3

0155008303
ref: 3

BOLT

€ 3.00

4

0831931083
ref: 4

NUT

€ 2.50

5

4175034C00
ref: 5

TUBE,FRAME BRIDGE NO.2

€ 44.00

6

0910308266
ref: 6

BOLT(8X20)

€ 2.50

7

4191119C00019
ref: 7

PLATE,ENG MTG NO.1

€ 5.00

8

0157008163
ref: 8

BOLT, UPPER

€ 2.00

9

4397008F00
ref: 9

GRIP,RR,R

€ 31.50

10

4398008F00
ref: 10

GRIP,RR,L

€ 36.50

11

0155008163
ref: 11

BOLT

€ 3.00

12

4741008F01
ref: 12

PLATE,ELECTRIC PARTS HOLDER

€ 25.00

13

0155006163
ref: 13

BOLT

€ 2.50
