STEERING STEM

GSX750F 2000 (Y)

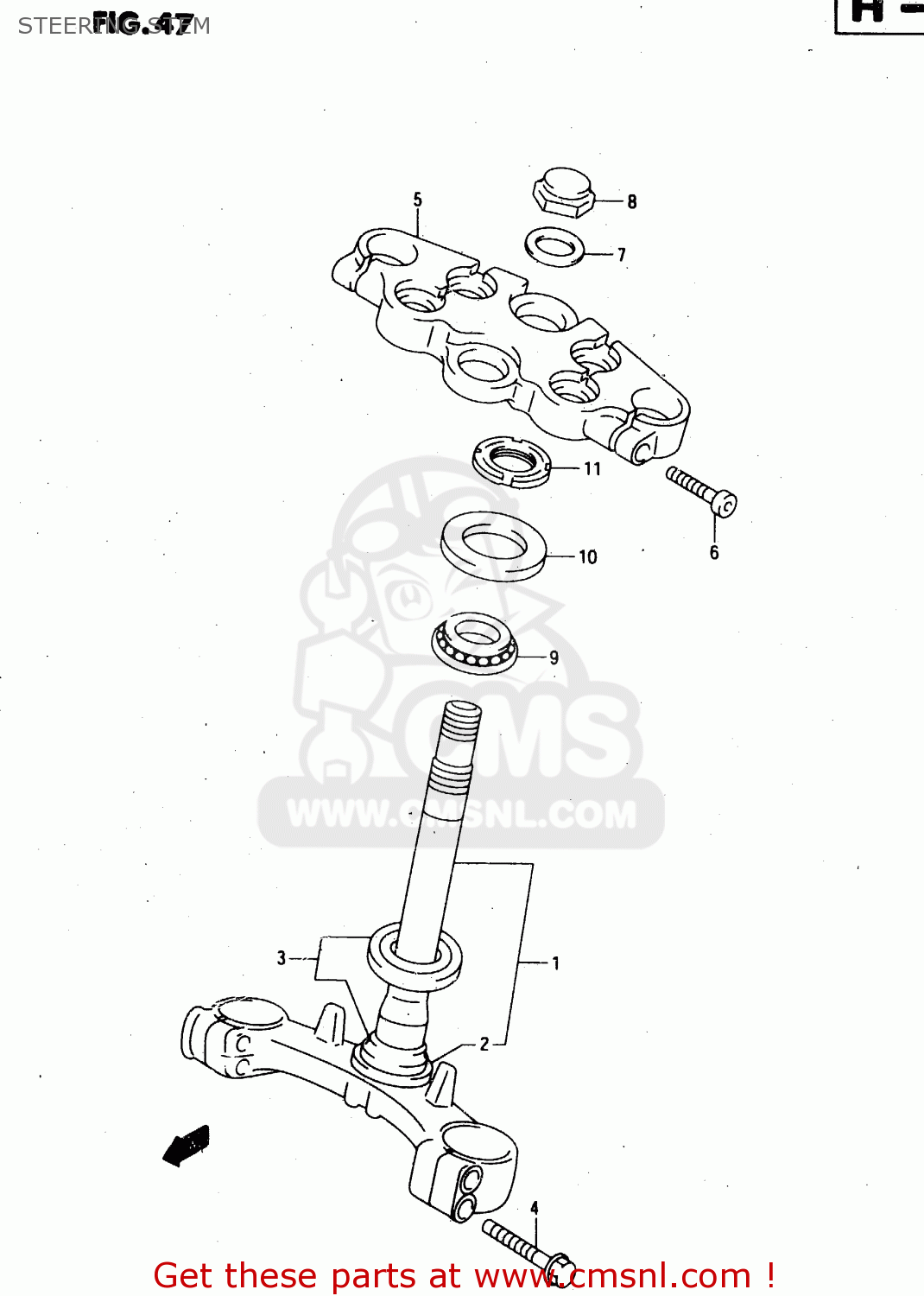

Steering stem diagram GSX750F 2000 (Y)

STEERING STEM GSX750F 2000 (Y)

STEERING STEM GSX750F 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

5141008F00
ref: 1

STEM,STEERING

€ 400.50

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

0155008403
ref: 4

BOLT

€ 3.50

5

5131108FA0
ref: 5

HEAD,STEERING STEM

€ 287.50

6

0713008353
ref: 6

BOLT

€ 4.00

7

5135624B01
ref: 7

WASHER(22.5X32X1.6)

€ 3.00

8

5135324B00
ref: 8

NUT,CAP

€ 21.50

9

0926725009
ref: 9

BEARING(25X47X15)

€ 40.00

10

5164340502
ref: 10

DUST SEAL,STEERING UPR

€ 8.00

11

5163128000
ref: 11

NUT,STEERING STEM(25X44X10)

€ 12.50
