CLUTCH
GSX750F KATANA 1994 (R) USA (E03)

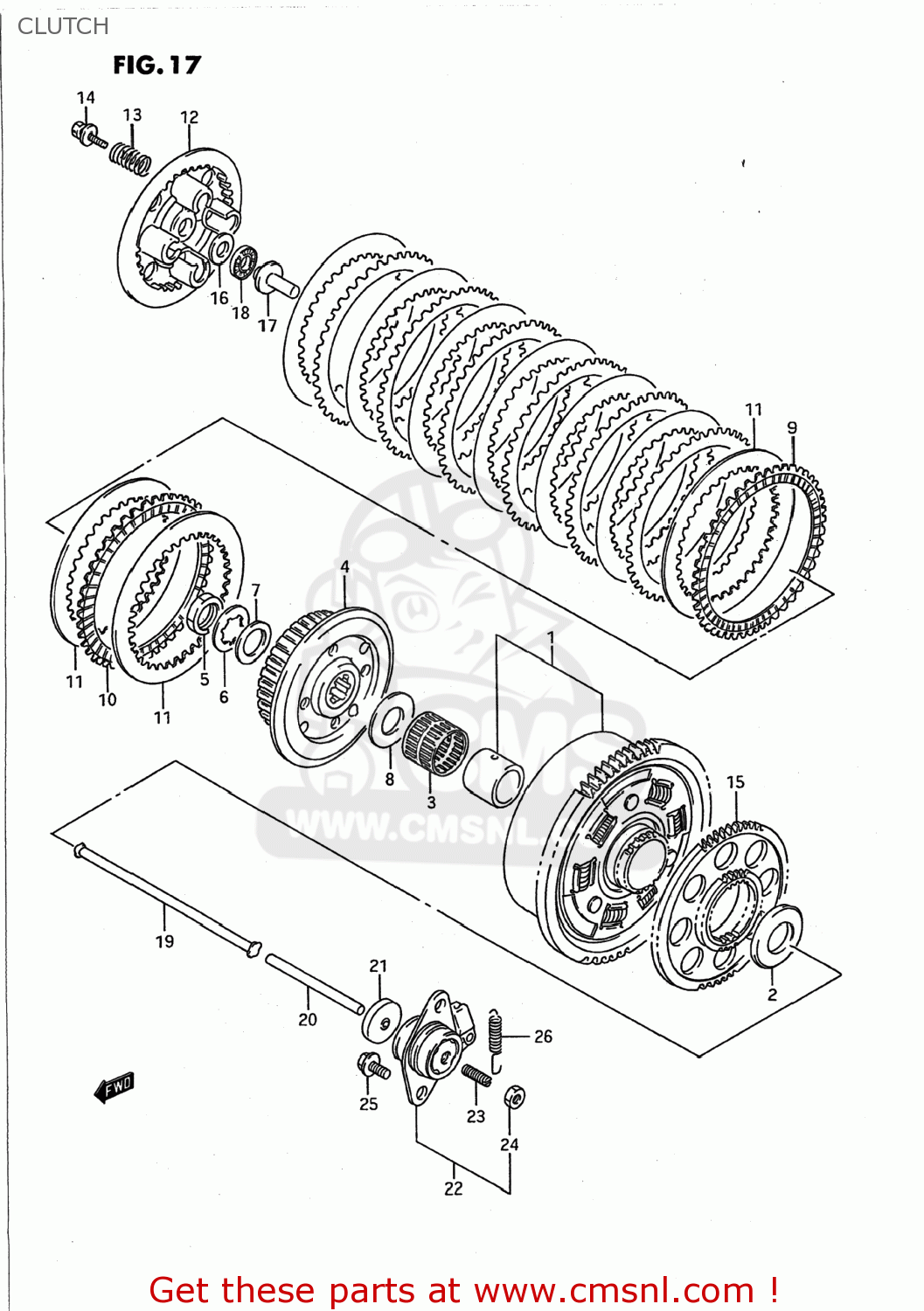

Clutch diagram GSX750F KATANA 1994 (R) USA (E03)
CLUTCH GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120017831
ref: 1-1
21200-17835
GEAR ASSEMBLY,PRIMARY DRIVE
€ 341.00
1-2
2120017832
ref: 1-2
21200-17835
GEAR ASSEMBLY,PRIMARY DRIVE
€ 341.00
1-3
2120017834
ref: 1-3
21200-17835
GEAR ASSEMBLY,PRIMARY DRIVE
€ 341.00
2
0916025067
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4-1
2141017C01
ref: 4-1
21410-07D00
HUB,CLUTCH SLEEVE
€ 121.50
4-2
2141007D00
ref: 4-2
HUB,CLUTCH SLEEVE
€ 121.50
5
0914024012
ref: 5
NUT
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
€ 7.50
7
0916424006
ref: 7
WASHER
€ 4.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
€ 9.50
9
2144120C00
ref: 9
PLATE,CLUTCH DRIVE (NAS)
€ 23.50
10
2144217C00
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 19.00
11
2145117C00
ref: 11
PLATE,CLUTCH DRIVEN (NAS)
€ 9.50
12
2146217C01
ref: 12
DISC,CLUTCH PRESSURE
€ 73.50
13
0944020018
ref: 13
SPRING
€ 6.00
14-1
0911606016
ref: 14-1
09116-06168
BOLT
€ 2.50
14-2
0911606168
ref: 14-2
BOLT(6X16)
€ 2.50
15-1
2272117C00
ref: 15-1
22721-17C02
GEAR,GENERATOR DRIVE
€ 118.50
15-1
2272117C00
ref: 15-1
22721-17C02
GEAR,GENERATOR DRIVE
€ 118.50
15-2
2272117C01
ref: 15-2
22721-17C02
GEAR,GENERATOR DRIVE
€ 118.50
15-2
2272117C01
ref: 15-2
22721-17C02
GEAR,GENERATOR DRIVE
€ 118.50
16-1
0916015015
ref: 16-1
09160-15045
WASHER
€ 4.00
16-2
0916015045
ref: 16-2
WASHER(15.5X28X1)
€ 4.00
17
2312107A00
ref: 17
23121-31E00
PIECE,CLUTCH PUSH
€ 18.50
18
0926315003
ref: 18
BEARING(15X28X2)
€ 7.00
19
2311020C00
ref: 19
ROD,CLUTCH PUSH,R
€ 23.00
20
2311131301
ref: 20
ROD,CLUTCH PUSH,L
€ 14.50
21
0928506015
ref: 21
SEAL,OIL(6X34X5.5)
€ 8.50
22
2320020C00
ref: 22
SCREW ASSY,CLUTCH RELEASE
€ 74.50
23
0913406010
ref: 23
SCREW(6X25)
€ 3.00
24
0831000067
ref: 24
NUT
€ 2.50
25-1
0151706167
ref: 25-1
01550-06167
BOLT 6X16
€ 1.50
25-2
0155006163
ref: 25-2
01550-0616A
BOLT
€ 2.50
26
0944307038
ref: 26
SPRING
€ 4.00
