OIL PUMP
GSX750F KATANA 1994 (R) USA (E03)

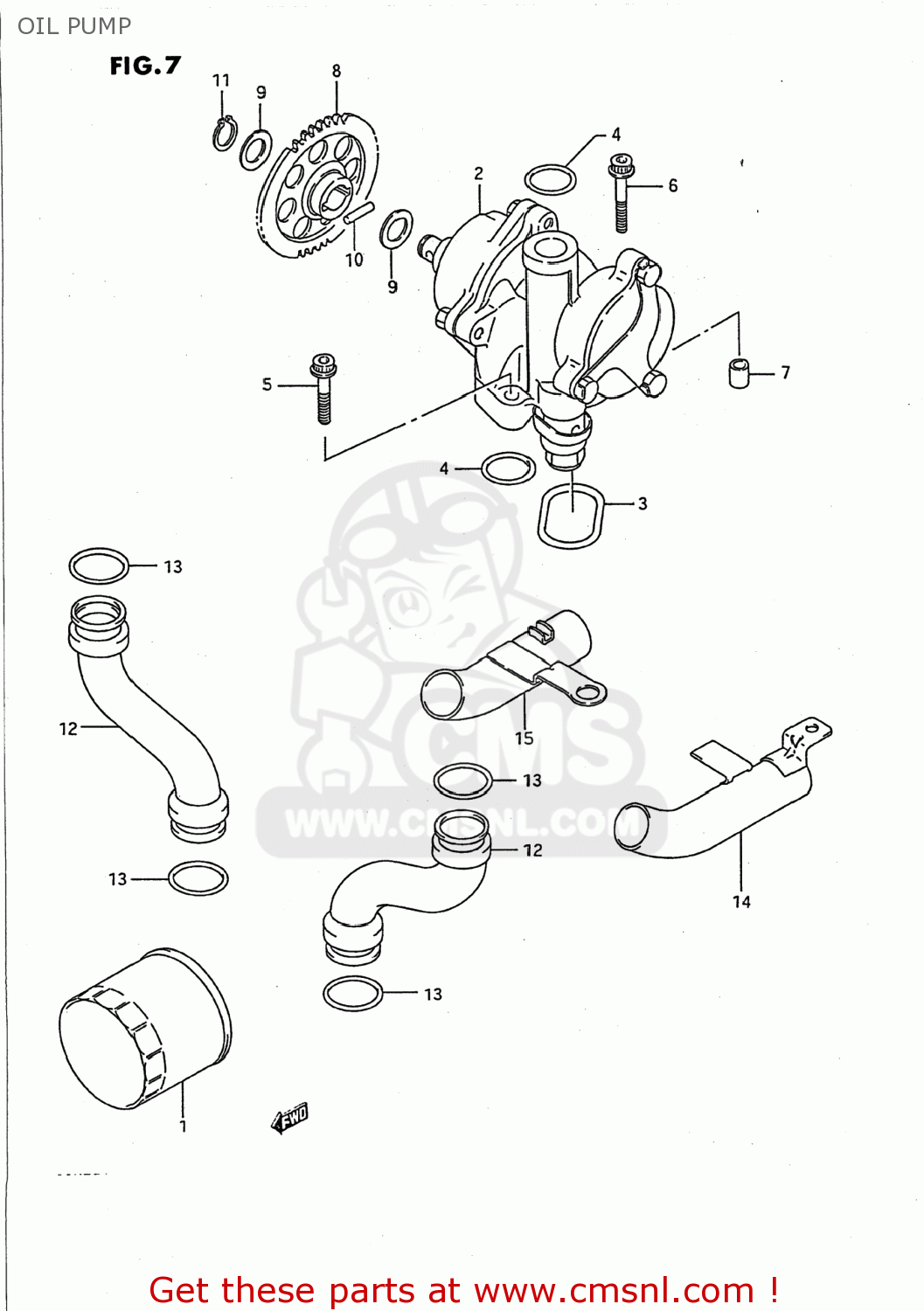

Oil pump diagram GSX750F KATANA 1994 (R) USA (E03)
OIL PUMP GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1651006B00
ref: 1-1
16510-07J00
FILTER,OIL
€ 12.50
1-2
1651006B01
ref: 1-2
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
2-1
1640006B10
ref: 2-1
16400-06B01
PUMP ASSEMBLY,OIL
€ 348.50
2-2
1640006B01
ref: 2-2
PUMP ASSY,OIL
€ 348.50
3
1649127A01
ref: 3
O RING,OIL PUMP
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
€ 8.00
5-1
0712006308
ref: 5-1
07120-06307
BOLT
€ 2.50
5-2
0713006303
ref: 5-2
07130-0630B
BOLT
€ 3.00
6-1
0712006358
ref: 6-1
07120-0635B
BOLT
€ 3.50
6-2
0713006353
ref: 6-2
07130-0635B
BOLT
€ 3.50
7
0421109129
ref: 7
PIN
€ 2.00
8
1633106B010B1
ref: 8
GEAR,OIL PUMP DRIVEN
€ 37.00
9
0822112205
ref: 9
SHIM
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
€ 1.50
11
0833131126
ref: 11
08331-3112A
CIRCLIP,12 MM
€ 2.00
12
1648117C00
ref: 12
PIPE,OIL OUTLET
€ 34.50
13
0928022016
ref: 13
O RING(D:3.7,ID:21.7)
€ 5.50
14
1653027A02
ref: 14
PIPE,OIL OUTLET UNDER,L
€ 22.00
15
1654027A02
ref: 15
PIPE,OIL OUTLET UNDER,R
€ 23.00
