WIRING HARNESS
GSX750F KATANA 1994 (R) USA (E03)

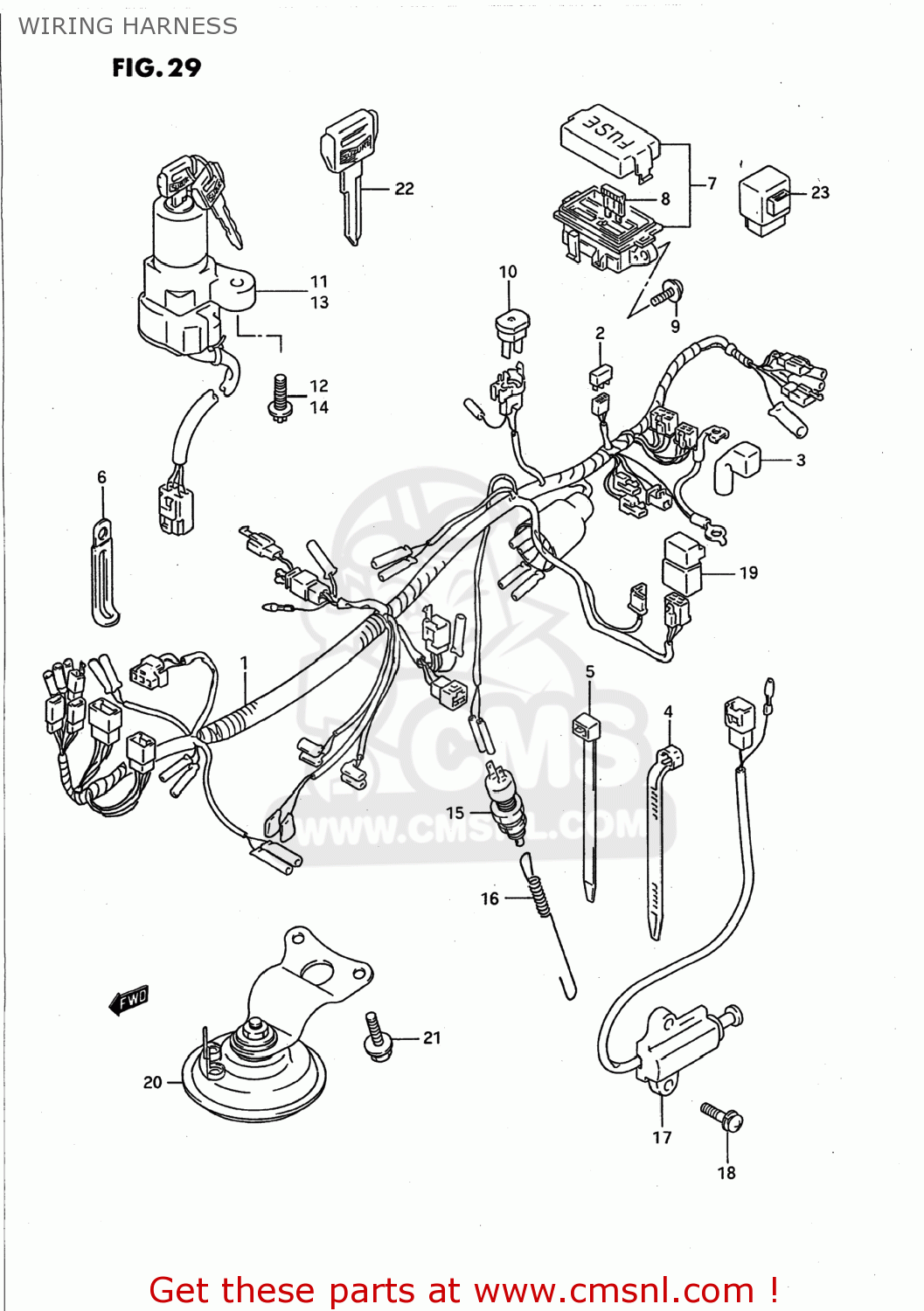

Wiring harness diagram GSX750F KATANA 1994 (R) USA (E03)
WIRING HARNESS GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661020C00
ref: 1-1
36610-20CK0
HARNESS,WIRING
€ 257.50
1-2
3661020C02
ref: 1-2
36610-20CK0
HARNESS,WIRING
€ 257.50
1-3
3661020C40
ref: 1-3
HARNESS,WIRING
€ 277.00
1-4
3661020C60
ref: 1-4
HARNESS,WIRING
€ 257.50
1-5
3661020C10
ref: 1-5
HARNESS,WIRING
€ 257.50
1-6
3661020C30
ref: 1-6
HARNESS,WIRING
€ 161.50
1-7
3661020C50
ref: 1-7
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3-1
3362427A00
ref: 3-1
33624-43500
CAP,BATTERY PLUS
€ 3.50
3-2
3362443500
ref: 3-2
CAP,BATTERY PLUS TERMINAL
€ 3.50
4-1
0940714403
ref: 4-1
CLAMP(L:125)
€ 2.50
4-2
0940711401
ref: 4-2
CLAMP(L:95)
€ 2.50
4-3
0940718403
ref: 4-3
09407-18402
CLAMP L:165
€ 2.50
4-4
0940725401
ref: 4-4
CLAMP(L:235)
€ 4.00
5
0940710403
ref: 5
CLAMP(L:95)
€ 2.50
6
0940408420
ref: 6
CLAMP(L:120 T:1.0)
€ 3.50
7-1
3674020C01
ref: 7-1
BOX ASSY,FUSE
€ 48.00
7-2
3674034C01
ref: 7-2
36740-10D10
BOX ASSEMBLY,FUSE
€ 58.50
7-3
3674010D10
ref: 7-3
BOX ASSY,FUSE
€ 58.50
8-1
0948110101
ref: 8-1
FUSE(10A)
€ 2.50
8-2
0948110101
ref: 8-2
FUSE(10A)
€ 2.50
8-3
0948125101
ref: 8-3
09481-25103
FUSE (25A)
€ 2.50
9
0214206163
ref: 9
02142-0616A
SCREW
€ 2.50
10
3675005A00
ref: 10
BREAKER ASSY,CIRCUT
€ 36.50
11
3710017C00
ref: 11
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
12
0913906026
ref: 12
SCREW(6X18)
€ 2.50
13-1
3710017C02
ref: 13-1
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
13-2
3710033D00
ref: 13-2
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
13-3
3710026D01
ref: 13-3
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
13-4
3710026D02
ref: 13-4
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
14
0913906026
ref: 14
SCREW(6X18)
€ 2.50
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306005
ref: 16
SPRING
€ 6.00
17-1
3784020A11
ref: 17-1
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
17-2
3784044X50
ref: 17-2
SWITCH ASSY,SIDE STAND
€ 75.50
18-1
0211236205
ref: 18-1
02112-3620A
SCREW
€ 2.00
18-2
0155006203
ref: 18-2
01550-0620A
BOLT
€ 2.50
19-1
3874024B10
ref: 19-1
38740-24X50
RELAY ASSEMBLY
€ 37.50
19-2
3874024X50
ref: 19-2
RELAY ASSY
€ 37.50
20-1
3850019C00
ref: 20-1
38500-19C01
HORN ASSEMBLY
€ 54.00
20-2
3850019C01
ref: 20-2
HORN ASSY
€ 54.00
21-1
0111706165
ref: 21-1
01550-0616A
BOLT
€ 2.50
21-2
0155006163
ref: 21-2
01550-0616A
BOLT
€ 2.50
22
3714626D10
ref: 22
KEY,BLANK
€ 41.50
23
3887048B00
ref: 23
CONTROLLER ASSY,FAN MOTOR
€ 145.50
