SPEEDOMETER
GSX750F KATANA 1994 (R) USA (E03)

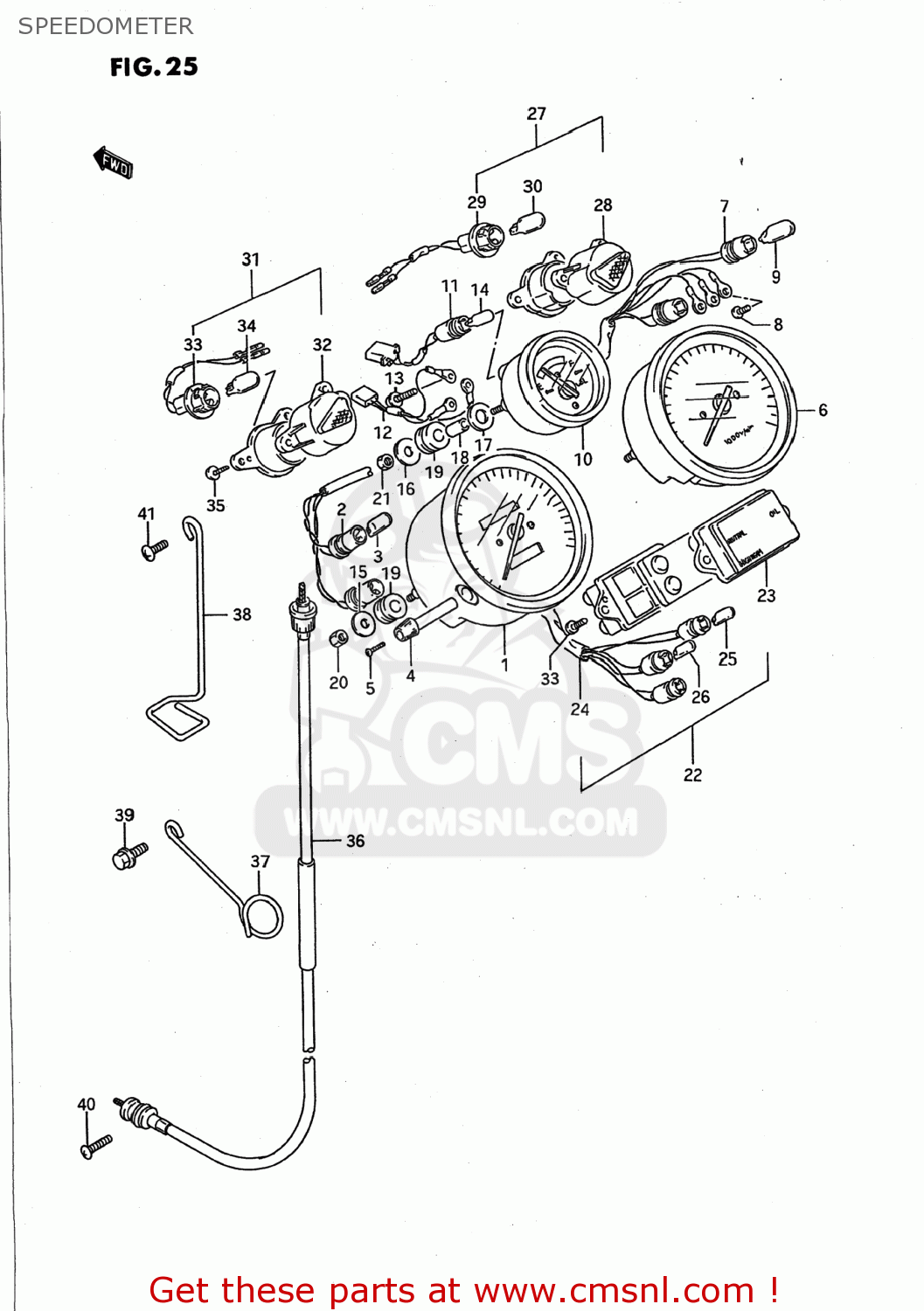

Speedometer diagram GSX750F KATANA 1994 (R) USA (E03)
SPEEDOMETER GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3410020C30
ref: 1
SPEEDOMETER ASSEMBLY
€ 0.00
2
3417120C20
ref: 2
SOCKET
€ 16.50
3
0947112077
ref: 3
BULB(12V1.7W,T10,WB121)
€ 1.00
4
3412420C00
ref: 4
KNOB,TRIP
€ 4.00
5-1
3498113A00
ref: 5-1
09139-02003
ROTOR,SPEED
€ 2.00
5-2
0913902003
ref: 5-2
SCREW(2X6)
€ 2.00
6
3420020C00
ref: 6
TACHOMETER ASSEMBLY
€ 385.50
7
3427520C00
ref: 7
SOCKET
€ 25.50
8
0211233123
ref: 8
02112-3312A
SCREW
€ 1.50
9
0947112077
ref: 9
BULB(12V1.7W,T10,WB121)
€ 1.00
10
3430020C00
ref: 10
METER ASSY,FUEL
€ 166.00
11
3437120C00
ref: 11
SOCKET
€ 15.50
12
3437120C10
ref: 12
CORD ASSEMBLY
€ 14.50
13
3438309400
ref: 13
SCREW(3X22)
€ 2.50
14
0947112108
ref: 14
BULB(12V1.7W,T6.5)
€ 2.00
15-1
0916005017
ref: 15-1
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
15-2
0916005037
ref: 15-2
WASHER(5.5X16X1.2)
€ 1.50
16
0916004014
ref: 16
09160-04026
WASHER (4X16X1.2)
€ 1.50
17
0916108011
ref: 17
WASHER(8.2X18X1.2)
€ 2.50
18
0918004014
ref: 18
SPACER (4.5X7.5X15)
€ 2.00
19
3418920C00
ref: 19
CUSHION,TACHOMETER
€ 4.00
20
0831000053
ref: 20
08310-0005A
NUT
€ 2.50
21
0831000043
ref: 21
08310-0004A
NUT
€ 2.00
22
3638020C10
ref: 22
BOX ASSY,PILOT LAMP
€ 77.50
23
3638120C10
ref: 23
CASE,PILOT LAMP UPR
€ 13.50
24
3417020C10
ref: 24
CORD ASSY
€ 25.00
25
0947112108
ref: 25
BULB(12V1.7W,T6.5)
€ 2.00
26
0947112103
ref: 26
BULB(12V3W,T6.5)
€ 2.50
27
3634020C00
ref: 27
LAMP ASSEMBLY,TURN SIGNAL P
€ 0.00
28
3634220C00
ref: 28
LENS,PILOT LAMP,R
€ 0.00
29-1
3634820C00
ref: 29-1
35618-37B00
SOCKET
€ 9.50
29-2
3561810B02
ref: 29-2
35618-37B00
SOCKET,TURN SIGNAL
€ 9.50
30
0947112082
ref: 30
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
31
3635020C00
ref: 31
LAMP ASSY,TURNSIGNAL PILOT,L
€ 0.00
32
3635220C00
ref: 32
LENS,PILOT LAMP,LEFT
€ 0.00
33-1
3634820C00
ref: 33-1
35618-37B00
SOCKET
€ 9.50
33-2
3561810B02
ref: 33-2
35618-37B00
SOCKET,TURN SIGNAL
€ 9.50
34
0947112082
ref: 34
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
35
0354104163
ref: 35
03541-0416A
SCREW
€ 1.50
36
3491019C01
ref: 36
CABLE ASSY,SPEEDOMETER
€ 27.50
37
3493845100
ref: 37
CLAMP,SPEEDOMETER CABLE
€ 14.50
38
3493834C01
ref: 38
34938-34C0V
CLAMP,SPEEDOMETER CABLE
€ 4.50
39-1
0155006167
ref: 39-1
BOLT
€ 1.50
39-2
0155006163
ref: 39-2
01550-0616A
BOLT
€ 2.50
40-1
0211205164
ref: 40-1
SCREW
€ 2.00
40-2
0211205163
ref: 40-2
02112-0516A
SCREW
€ 2.00
41-1
0214205124
ref: 41-1
02142-0512A
SCREW, FRONT & REAR
€ 1.50
41-2
0214205123
ref: 41-2
02142-0512A
SCREW 5X12
€ 1.50
