CRANKSHAFT
GSX750F KATANA 1994 (R) USA (E03)

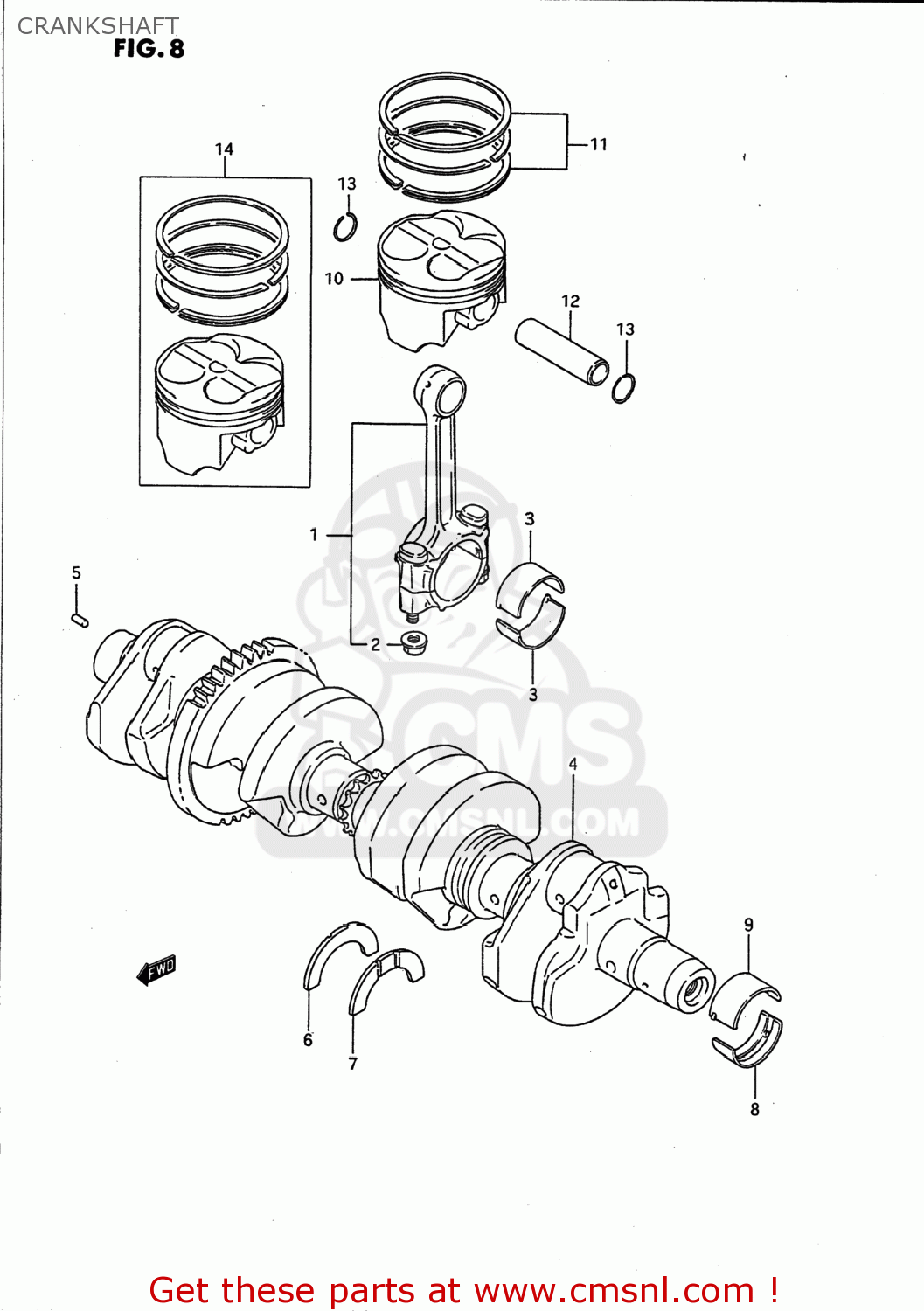

Crankshaft diagram GSX750F KATANA 1994 (R) USA (E03)
CRANKSHAFT GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216017C00
ref: 1
CONNECTING ROD ASSY
€ 107.00
2
0915909001
ref: 2
NUT
€ 4.50
3-1
1216417C000A0
ref: 3-1
12164-31E00-0A0
BEARING,CRANK PIN
€ 19.00
3-2
1216417C000B0
ref: 3-2
12164-31E00-0B0
BEARING,CRANK PIN
€ 19.00
3-3
1216417C000C0
ref: 3-3
12164-31E00-0C0
BEARING,CRANK PIN
€ 19.00
3-4
1216417C000D0
ref: 3-4
12164-31E00-0D0
BEARING,CRANK PIN
€ 19.00
3-5
1216431E000A0
ref: 3-5
BEARING,CRANK PIN
€ 19.00
3-6
1216431E000B0
ref: 3-6
BEARING,CRANK PIN
€ 19.00
3-7
1216431E000C0
ref: 3-7
BEARING,CRANK PIN
€ 19.00
3-8
1216431E000D0
ref: 3-8
BEARING,CRANK PIN
€ 19.00
4-1
1200017810
ref: 4-1
CRANKSHAFT SET
€ 1,332.50
4-2
1200017840
ref: 4-2
CRANKSHAFT SET
€ 706.50
5
0422104089
ref: 5
PIN
€ 1.50
6
1222848B000E0
ref: 6
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-1
1222848B000C0
ref: 7-1
BEARING,CRANK THRUST(RED)
€ 7.50
7-2
1222848B000E0
ref: 7-2
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-3
1222848B000H0
ref: 7-3
BEARING,CRANK THRUST(BLACK)
€ 7.50
8-1
1222906B000A0
ref: 8-1
BEARING,CRANKSHAFT LWR
€ 12.00
8-2
1222906B000B0
ref: 8-2
BEARING,CRANKSHAFT LWR
€ 12.50
8-3
1222906B000C0
ref: 8-3
BEARING,CRANKSHAFT LWR
€ 12.00
8-4
1222906B000D0
ref: 8-4
BEARING,CRANKSHAFT LWR
€ 12.50
9-1
1222906B100A0
ref: 9-1
BEARING,CRANKSHAFT UPR
€ 12.00
9-2
1222906B100B0
ref: 9-2
BEARING,CRANKSHAFT UPR
€ 12.50
9-3
1222906B100C0
ref: 9-3
BEARING,CRANKSHAFT UPR
€ 12.00
9-4
1222906B100D0
ref: 9-4
BEARING,CRANKSHAFT UPR
€ 11.50
10
1211120C010F0
ref: 10
12111-20C11-0F0
PISTON
€ 632.50
11-1
1214017C12
ref: 11-1
RING SET,PISTON
€ 80.00
11-2
1214020C10
ref: 11-2
12140-17C12
RING SET,PISTON
€ 80.00
12
1215117C00
ref: 12
PIN,PISTON
€ 15.50
13
0938119001
ref: 13
RING,SNAP
€ 2.50
14-1
1210020C00050
ref: 14-1
PISTON SET(OS:0.5)
€ 109.00
14-2
1210020C00100
ref: 14-2
PISTON SET (OS:1.0)
€ 110.00
