FOOTREST
GSX750F KATANA 1994 (R) USA (E03)

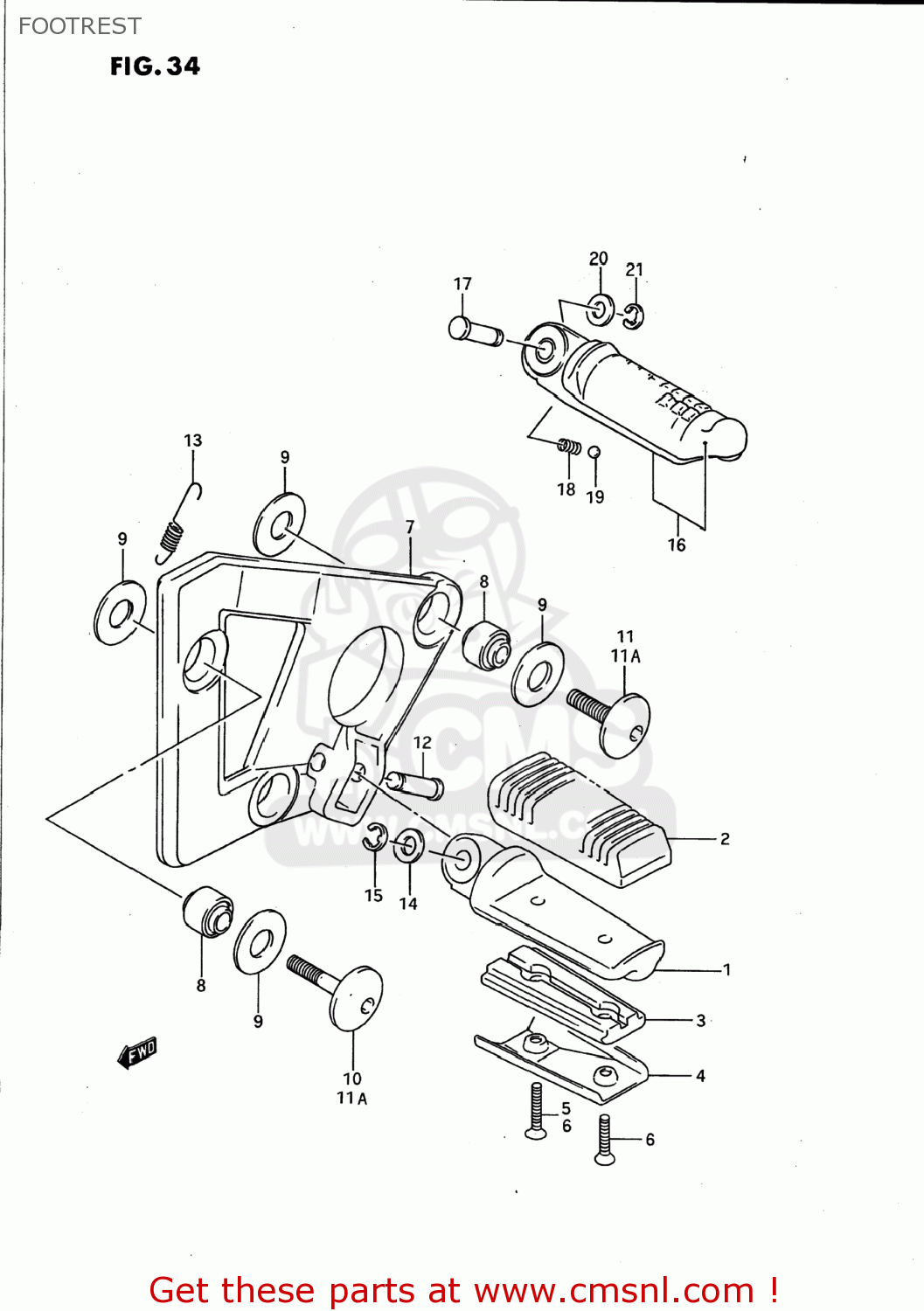

Footrest diagram GSX750F KATANA 1994 (R) USA (E03)
FOOTREST GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351020C00
ref: 1-1
BAR,FR FOOTREST,R
€ 64.50
1-2
4352020C00
ref: 1-2
BAR,FR FOOTREST,L
€ 64.50
2
4355048B10
ref: 2
RUBBER,FR FOOTREST
€ 31.00
3
4353320C00
ref: 3
BAR,FRONT FOOTREST NO
€ 34.50
4
4353420C00
ref: 4
COVER,FOOTREST BAR
€ 9.50
5
0212205208
ref: 5
02122-0520A
SCREW
€ 2.00
6-1
0212205258
ref: 6-1
02122-05253
SCREW
€ 1.00
6-2
0212205258
ref: 6-2
02122-05253
SCREW
€ 1.00
6-3
0212205253
ref: 6-3
SCREW
€ 1.00
7-1
4351720C00
ref: 7-1
43517-20C01
HOLDER,FRONT FOOTREST
€ 37.00
7-2
4351720C01
ref: 7-2
HOLDER,FRONT FOOTREST
€ 37.00
7-3
4352720C00
ref: 7-3
43527-20C01
HOLDER,FRONT FOOTREST
€ 92.00
7-4
4352720C01
ref: 7-4
HOLDER,FR FOOTREST
€ 92.00
8
0931908036
ref: 8
BUSH(12X20X16)
€ 23.50
9
0916112007
ref: 9
09161-12009
WASHER (12X24X1.7)
€ 4.00
10
0910608080
ref: 10
09106-08147
BOLT L:30
€ 6.00
11
0910608089
ref: 11
BOLT(8X25)
€ 9.00
11A
0910608080
ref: 11A
09106-08147
BOLT L:30
€ 6.00
12-1
0920808012
ref: 12-1
09208-08010
PIN
€ 3.00
12-2
0920808010
ref: 12-2
PIN(8X33.2)
€ 3.00
13
0944310037
ref: 13
SPRING
€ 4.50
14-1
0832201087
ref: 14-1
WASHER
€ 2.00
14-2
0832201083
ref: 14-2
08322-0108A
WASHER
€ 1.50
15
0833211063
ref: 15
08332-1106A
E.RING
€ 2.00
16-1
4361020C00
ref: 16-1
43610-20C01
BAR,PILLION FOOTREST,RIGHT
€ 52.50
16-2
4371020C00
ref: 16-2
43710-20C01
BAR,PILLION FOOTREST,LEFT
€ 52.50
17
0920808011
ref: 17
PIN
€ 3.00
18
0944005005
ref: 18
SPRING
€ 1.50
19
0611107004
ref: 19
BALL
€ 1.50
20-1
0832211084
ref: 20-1
08322-0108A
WASHER
€ 1.50
20-2
0832201083
ref: 20-2
08322-0108A
WASHER
€ 1.50
21
0833211063
ref: 21
08332-1106A
E.RING
€ 2.00
