HEADLAMP

GSX750F KATANA 1994 (R) USA (E03)

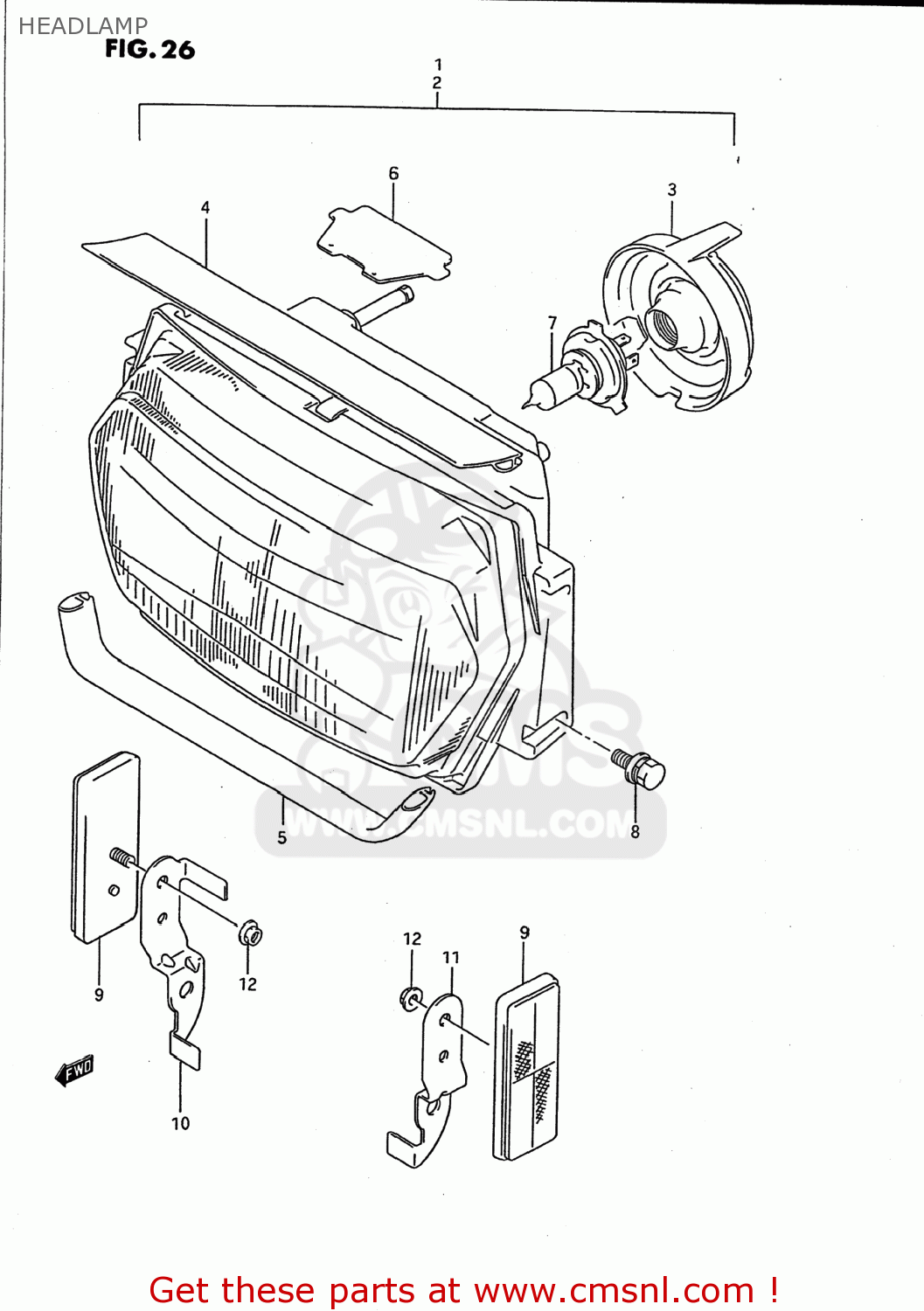

Headlamp diagram GSX750F KATANA 1994 (R) USA (E03)

HEADLAMP GSX750F KATANA 1994 (R) USA (E03)

HEADLAMP GSX750F KATANA 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510020C10
ref: 1
35100-20C10-999

HEADLAMP ASSEMBLY

€ 189.50

2

3510020C10999
ref: 2

HEADLAMP ASSY

€ 189.50

3

3517348B00
ref: 3

COVER,SOCKET

€ 10.50

4

3524219C00
ref: 4

GASKET,HEADLAMP (NAS)

€ 10.50

5

3524319C00
ref: 5

GASKET,HEADLAMP (NAS)

€ 8.00

6

3524419C00
ref: 6

GASKET (NAS)

€ 3.50

7

0947112060
ref: 7

BULB(12V60/55W,H4)

€ 8.00

8

0158006163
ref: 8
01580-0616A

BOLT

€ 2.50

9

3595043431
ref: 9

REFLEX REFLECTOR,FR SIDE

€ 12.00

10

3595619C00
ref: 10

BRACKET,FR SIDE RR,R

€ 4.50

11

3595719C00
ref: 11

BRACKET,FR SIDE RR,L

€ 5.50

12-1

0831626055
ref: 12-1
08316-2005A

NUT

€ 2.00

12-2

0831000053
ref: 12-2
08310-0005A

NUT

€ 2.50
