REAR WHEEL
GSX750F KATANA 1994 (R) USA (E03)

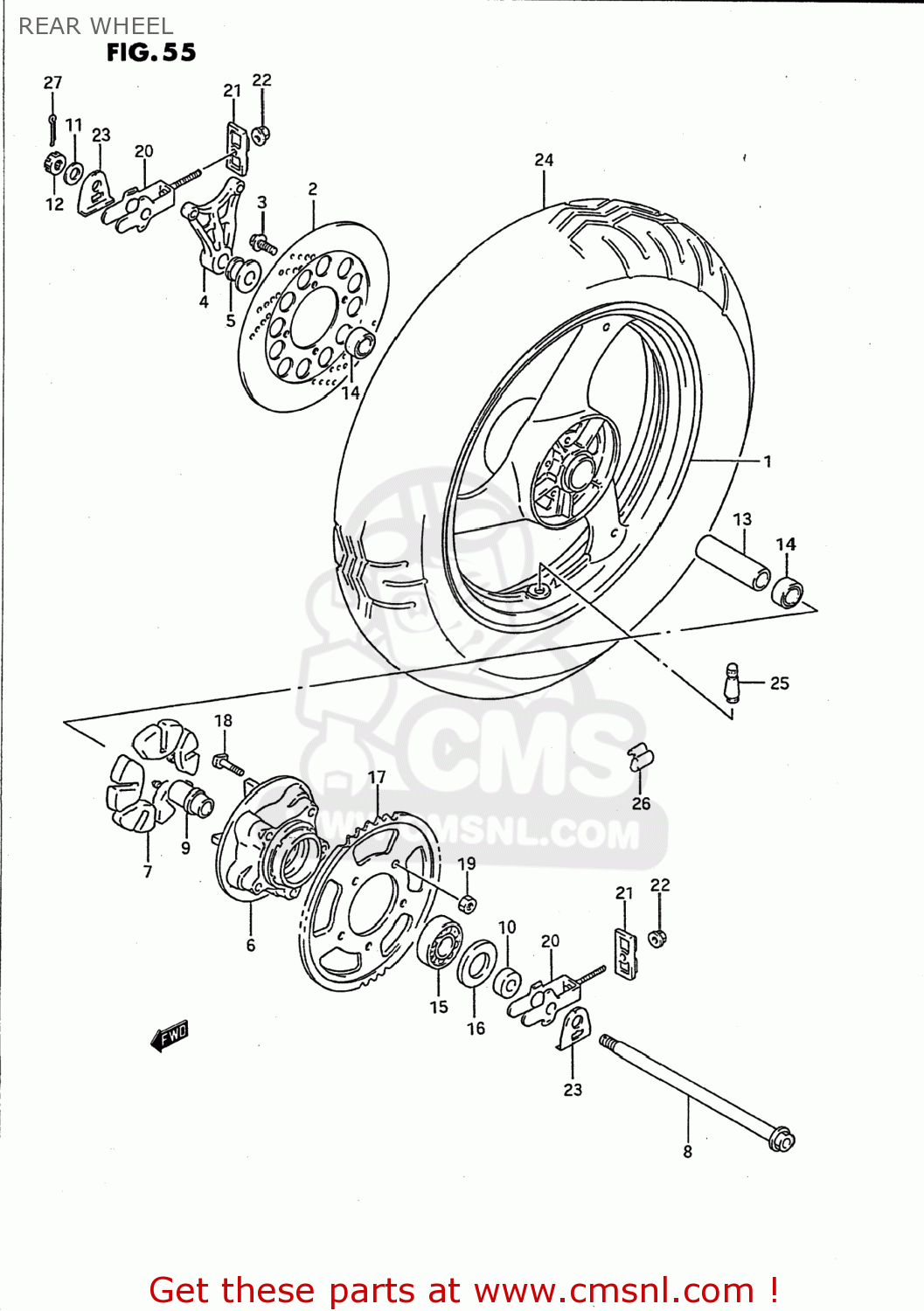

Rear wheel diagram GSX750F KATANA 1994 (R) USA (E03)
REAR WHEEL GSX750F KATANA 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411134C0012Z
ref: 1-1
WHEEL,REAR (MT3.50X17)
€ 596.00
1-2
6411134C0012R
ref: 1-2
64111-34C01-12R
WHEEL,REAR (MT3.50X17)
€ 733.50
1-2
6411134C0012R
ref: 1-2
64111-34C01-12R
WHEEL,REAR (MT3.50X17)
€ 733.50
1-2
6411134C0012R
ref: 1-2
64111-34C01-12R
WHEEL,REAR (MT3.50X17)
€ 733.50
1-3
6411134C0035B
ref: 1-3
WHEEL,REAR (MT3.50X17)
€ 608.50
1-4
6411134C001DR
ref: 1-4
WHEEL,REAR (MT3.50X17)
€ 608.50
1-5
6411134C001TU
ref: 1-5
64111-34C01-1TU
WHEEL,REAR (MT3.50X17)
€ 575.50
2-1
6921134C00
ref: 2-1
69211-01D00
DISC,REAR BRAKE
€ 232.50
2-2
6921101D00
ref: 2-2
DISC,RR BRAKE
€ 232.50
3-1
0712008305
ref: 3-1
07120-0830A
BOLT
€ 3.50
3-2
0910608131
ref: 3-2
BOLT(8X30)
€ 3.50
4
6972143400
ref: 4
BRACKET,RR,CALIPER
€ 51.50
5
6474019C00
ref: 5
SPACER,RR AXLE,R
€ 19.00
6
6461117C01
ref: 6
DRUM,RR SPROCKET MOUNTING
€ 159.00
7
6465127A01
ref: 7
ABSORBER,RR HUB SHOCK
€ 6.00
8
6471119C00
ref: 8
64711-19C0V
AXLE,REAR
€ 48.50
9
6473334C00
ref: 9
RETAINER,RR SPROCKET DRUM
€ 27.50
10
6475134C00
ref: 10
SPACER,RR AXLE,L
€ 28.00
11
0916017013
ref: 11
09160-17050
WASHER (17X30X3.2)
€ 2.00
12-1
0831441168
ref: 12-1
08314-4016A
NUT
€ 4.50
12-2
0831440163
ref: 12-2
08314-4016A
NUT
€ 4.50
13
0918017067
ref: 13
SPACER(17.5X25X88)
€ 13.50
14
0814363037
ref: 14
BEARING
€ 23.00
15
0926225073
ref: 15
BEARING(25X62X17)
€ 21.50
16
0928535001
ref: 16
SEAL,OIL(35X62X8)
€ 9.00
17
6451120C11
ref: 17
SPROCKET,RR(NT:47-530)
€ 99.50
18
0911910037
ref: 18
BOLT
€ 6.00
19
0831931107
ref: 19
NUT
€ 3.00
20-1
6141020C00
ref: 20-1
61410-20C02
ADJUSTER,CHAIN
€ 22.00
20-2
6141020C02
ref: 20-2
ADJUSTER,CHAIN
€ 22.00
21-1
6142120C00
ref: 21-1
PLATE,CHAIN ADJUSTER GUIDE
€ 6.50
21-2
6142120C01
ref: 21-2
PLATE,CHAIN ADJUSTER GUIDE
€ 6.50
22-1
0831931085
ref: 22-1
08319-3108A
NUT
€ 2.50
22-2
0831931087
ref: 22-2
NUT
€ 2.50
23-1
6144520C00
ref: 23-1
61445-20C01
WASHER,CHAIN ADJUSTER
€ 7.00
23-1
6144520C00
ref: 23-1
61445-20C01
WASHER,CHAIN ADJUSTER
€ 7.00
23-2
6144520C01
ref: 23-2
WASHER,CHAIN ADJUSTER
€ 7.00
24-1
6510020CA0
ref: 24-1
65100-20CB0
TIRE
€ 0.00
24-1
6510020CA0
ref: 24-1
65100-20CB0
TIRE
€ 0.00
24-1
6510020CA0
ref: 24-1
65100-20CB0
TIRE
€ 0.00
24-2
6510020CB0
ref: 24-2
TIRE
€ 0.00
24-2
6510020CB0
ref: 24-2
TIRE
€ 0.00
24-2
6510020CB0
ref: 24-2
TIRE
€ 0.00
24-3
6511020CB0
ref: 24-3
65100-20CB0
TIRE 150/70VB17 (69V) V2
€ 0.00
24-3
6511020CB0
ref: 24-3
65100-20CB0
TIRE 150/70VB17 (69V) V2
€ 0.00
24-3
6511020CB0
ref: 24-3
65100-20CB0
TIRE 150/70VB17 (69V) V2
€ 0.00
25-1
4313024A00
ref: 25-1
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
25-2
4313024A11
ref: 25-2
43130-24A00
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
26-1
5541100A00
ref: 26-1
BALANCER,WHEEL (10G)
€ 6.50
26-2
5541200A01
ref: 26-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
26-3
5541300A01
ref: 26-3
BALANCER,WHEEL
€ 4.00
27
0411140308
ref: 27
04111-4030A
PIN,COTTER
€ 1.50
