2ND AIR (E33)
GSX750F KATANA 1998 (W) USA (E03)

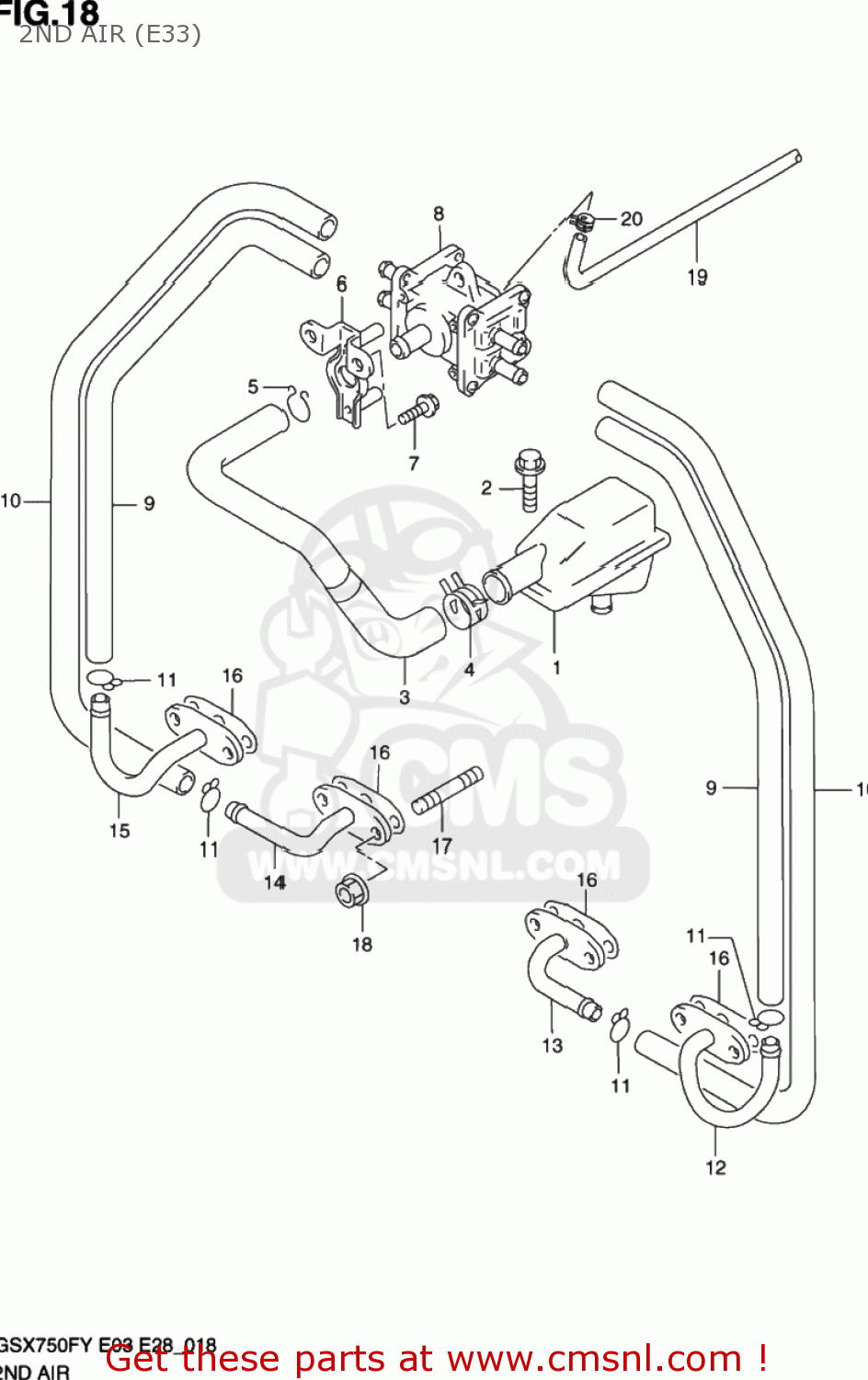

2nd air (e33) diagram GSX750F KATANA 1998 (W) USA (E03)
2ND AIR (E33) GSX750F KATANA 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1380027E00
ref: 1
CLEANER ASSY,2ND AIR
€ 36.00
2
0155006163
ref: 2
01550-0616A
BOLT
€ 2.50
3
1871108F00
ref: 3
HOSE,2ND AIR CLEANER
€ 15.00
4
0940118404
ref: 4
CLIP
€ 2.00
5
0940115401
ref: 5
CLIP
€ 2.50
6
1861008F00
ref: 6
BRACKET,2ND AIR VALVE
€ 21.50
7
0155006163
ref: 7
01550-0616A
BOLT
€ 2.50
8-1
1845033E10
ref: 8-1
18450-33E12
VALVE ASSEMBLY,SECOND AIR
€ 180.00
8-2
1845033E12
ref: 8-2
VALVE ASSY,2ND AIR
€ 180.00
9
1846108F00
ref: 9
HOSE,2ND AIR VALVE OUTER
€ 15.50
10
1847108F00
ref: 10
HOSE,2ND AIR VALVE INNER
€ 24.00
11
0940113409
ref: 11
CLIP
€ 2.50
12
1841020C00
ref: 12
PIPE,2ND AIR NO.1
€ 36.00
13
1842019C02
ref: 13
PIPE,2ND AIR NO.2
€ 34.50
14
1843019C02
ref: 14
PIPE,2ND AIR NO.3
€ 34.50
15
1844020C00
ref: 15
PIPE,2ND AIR NO.4
€ 36.00
16-1
1844117C10
ref: 16-1
18441-17C11
GASKET,SECOND AIR PIPE (NAS)
€ 7.00
16-2
1844117C11
ref: 16-2
GASKET,2ND AIR PIPE (NAS)
€ 7.00
17
0142106163
ref: 17
01421-0616A
STUD BOLT
€ 2.00
18
0831610063
ref: 18
08316-1006B
NUT
€ 2.50
19
0935945852600
ref: 19
HOSE(4.5X8.5X600)
€ 9.00
20
0940107402
ref: 20
CLIP
€ 2.00
