STAND
GSX750F KATANA 1998 (W) USA (E03)

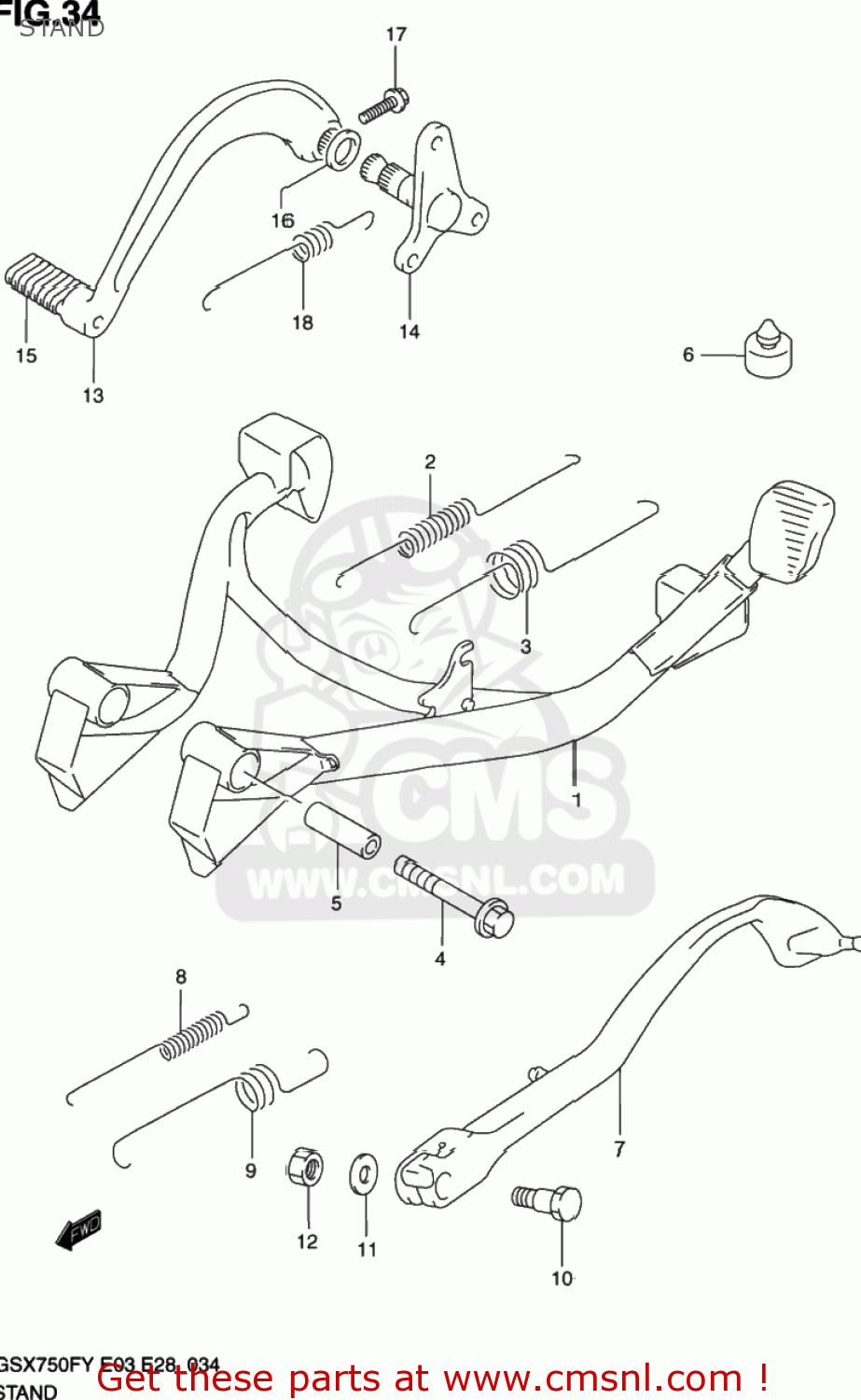

Stand diagram GSX750F KATANA 1998 (W) USA (E03)
STAND GSX750F KATANA 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210008F00
ref: 1
STAND,CTR
€ 215.00
2
0944314059
ref: 2
SPRING
€ 9.50
3
0944322013
ref: 3
SPRING OUTER
€ 7.00
4
0158010603
ref: 4
01580-1060B
BOLT
€ 3.50
5
0918010040
ref: 5
SPACER(10X16X38.8)
€ 3.00
6
0932110017
ref: 6
CUSHION
€ 5.50
7-1
4231008F00
ref: 7-1
42310-08F01
STAND COMP,PROP
€ 158.00
7-2
4231008F01
ref: 7-2
STAND,PROP
€ 158.00
8
0944312036
ref: 8
SPRING
€ 7.50
9
0944319010
ref: 9
SPRING
€ 6.00
10
0911110036
ref: 10
BOLT(10X38)
€ 5.50
11
0822112224
ref: 11
SHIM
€ 2.00
12
0915910097
ref: 12
NUT
€ 5.00
13
4311019C02
ref: 13
PEDAL,BRAKE
€ 115.00
14
4312019C00
ref: 14
BOSS,BRAKE ROD
€ 30.00
15
4315104701
ref: 15
RUBBER,BRAKE PEDAL
€ 6.00
16
4321204A00
ref: 16
WASHER,BRAKE PEDAL
€ 2.00
17
0154706253
ref: 17
01547-0625B
SCREW
€ 2.50
18
0944313028
ref: 18
SPRING
€ 20.50
