FRONT WHEEL (MODEL W/X/Y/K1/K2)

GSX750F KATANA 1998 (W) USA (E03)

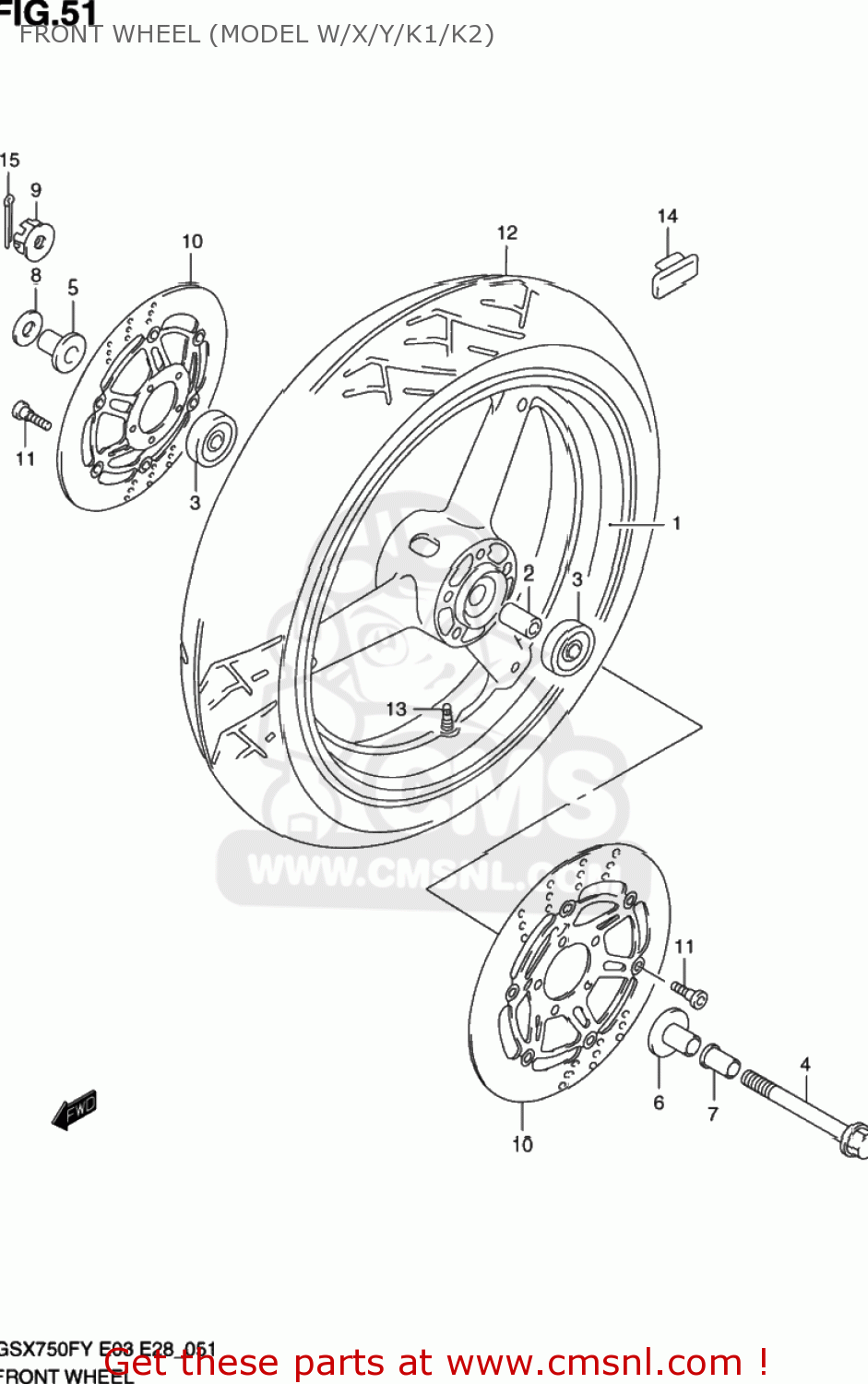

Front wheel (model w/x/y/k1/k2) diagram GSX750F KATANA 1998 (W) USA (E03)

FRONT WHEEL (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)

FRONT WHEEL (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5411108F10Y6G
ref: 1-1

WHEEL,FR(17XMT3.50)

€ 683.50

1-1

5411108F10Y6G
ref: 1-1

WHEEL,FR(17XMT3.50)

€ 683.50

1-2

5411108F1035W
ref: 1-2

WHEEL,FR(17XMT3.50)

€ 652.50

1-2

5411108F1035W
ref: 1-2

WHEEL,FR(17XMT3.50)

€ 652.50

1-3

5411108F10019
ref: 1-3

WHEEL,FR(17XMT3.50)

€ 652.50

1-3

5411108F10019
ref: 1-3

WHEEL,FR(17XMT3.50)

€ 652.50

2

0918015011
ref: 2

SPACER(15.3X21.7X63)

€ 7.50

3

0812363027
ref: 3

BEARING

€ 19.00

4

5471119C00
ref: 4

AXLE,FR

€ 45.00

5

5474033410
ref: 5

SPACER,FR AXLE

€ 15.50

6

5475008F00
ref: 6

SPACER,FR AXLE,L

€ 14.50

7

5474119C00
ref: 7

SPACER,FR AXLE,L

€ 13.00

8

0832201127
ref: 8

WASHER

€ 2.00

9

0915912027
ref: 9

NUT

€ 9.00

10

5921008F00
ref: 10

DISC,FR BRAKE

€ 356.00

11

0910608125
ref: 11
09106-08148

BOLT 8X33

€ 6.00

12

5511008F10
ref: 12

TIRE,FR(120/70 ZR17 58W)

€ 139.00

12

5511008F10
ref: 12

TIRE,FR(120/70 ZR17 58W)

€ 139.00

13-1

4313024A11
ref: 13-1
43130-24A00

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

13-2

4313024A00
ref: 13-2

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

14-1

5541100A00
ref: 14-1

BALANCER,WHEEL (10G)

€ 6.50

14-2

5541200A01
ref: 14-2
55412-17G00

BALANCER,WHEEL (20G)

€ 7.00

15

0411130308
ref: 15
04111-3030A

COTTER PIN

€ 1.50
