FRONT DAMPER (MODEL W/X/Y/K1/K2)

GSX750F KATANA 1998 (W) USA (E03)

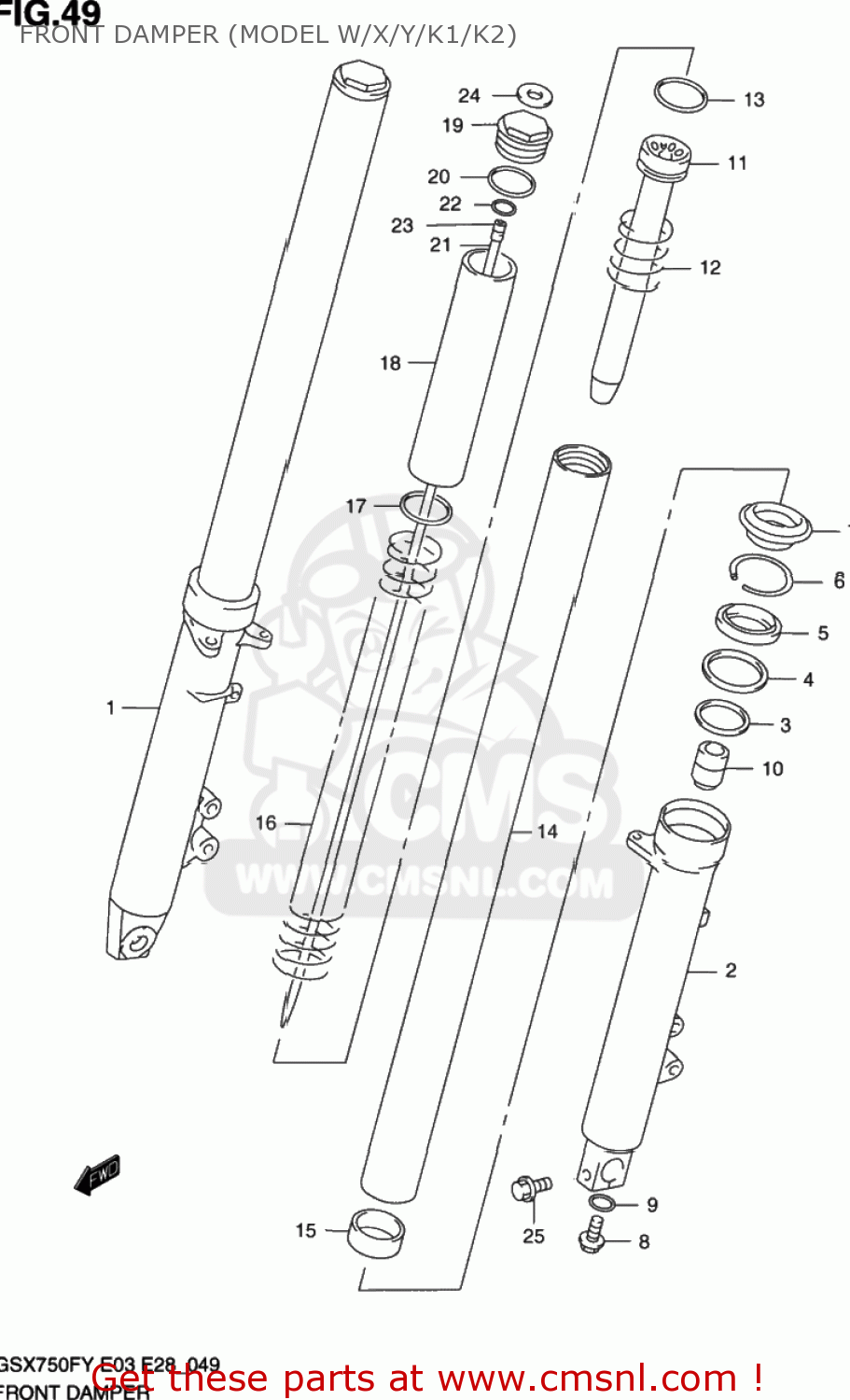

Front damper (model w/x/y/k1/k2) diagram GSX750F KATANA 1998 (W) USA (E03)

FRONT DAMPER (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)

FRONT DAMPER (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110308FA0
ref:

DAMPER ASSY,FR FORK,R

€ 808.50



5110408FA0
ref:

DAMPER ASSY,FR FORK,L

€ 808.50

1

5113008F00
ref: 1

TUBE,OUTER,R

€ 375.00

2

5114008F00
ref: 2

TUBE,OUTER,L

€ 375.00

3

5115211D60
ref: 3

BUSH,GUIDE

€ 12.00

4

5116838B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115308D00
ref: 5

SEAL,OIL

€ 15.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157147D50
ref: 7

SEAL,DUST

€ 18.00

8

5114748130
ref: 8

BOLT(8X27)

€ 3.50

9

5114836011
ref: 9

GASKET (NAS)

€ 4.00

10

5119510F00
ref: 10

PIECE,OIL LOCK

€ 18.50

11

5119408FA0
ref: 11

SEAT,UNDER

€ 85.00

12

5117748B31
ref: 12

SPRING,REBOUND

€ 12.00

13

5119612C00
ref: 13

RING,PISTON

€ 5.50

14

5111008FA0
ref: 14

TUBE,INNER

€ 402.50

15

5112148B31
ref: 15

BUSH,SLIDE

€ 15.50

16

5117108FA0
ref: 16

SPRING,FR

€ 68.50

17

5119219C00
ref: 17

JOINT,SPRING

€ 3.50

18

5117619C00
ref: 18

COLLAR,SPRING

€ 8.50

19

5135120C20
ref: 19

BOLT,FORK

€ 48.00

20

5111712C00
ref: 20

O RING

€ 3.00

21

5211108F00
ref: 21

ROD,DAMPER

€ 75.00

22

0928003002
ref: 22

O RING(D:1.9,ID:3.8)

€ 2.00

23

5116920C20
ref: 23

RING,STOPPER(ID:6.1,D:0.6)

€ 4.00

24

5114920C20
ref: 24

LABEL,S-H

€ 5.00

25

0155008407
ref: 25

BOLT

€ 3.50
