HANDLE SWITCH

GSX750F KATANA 1998 (W) USA (E03)

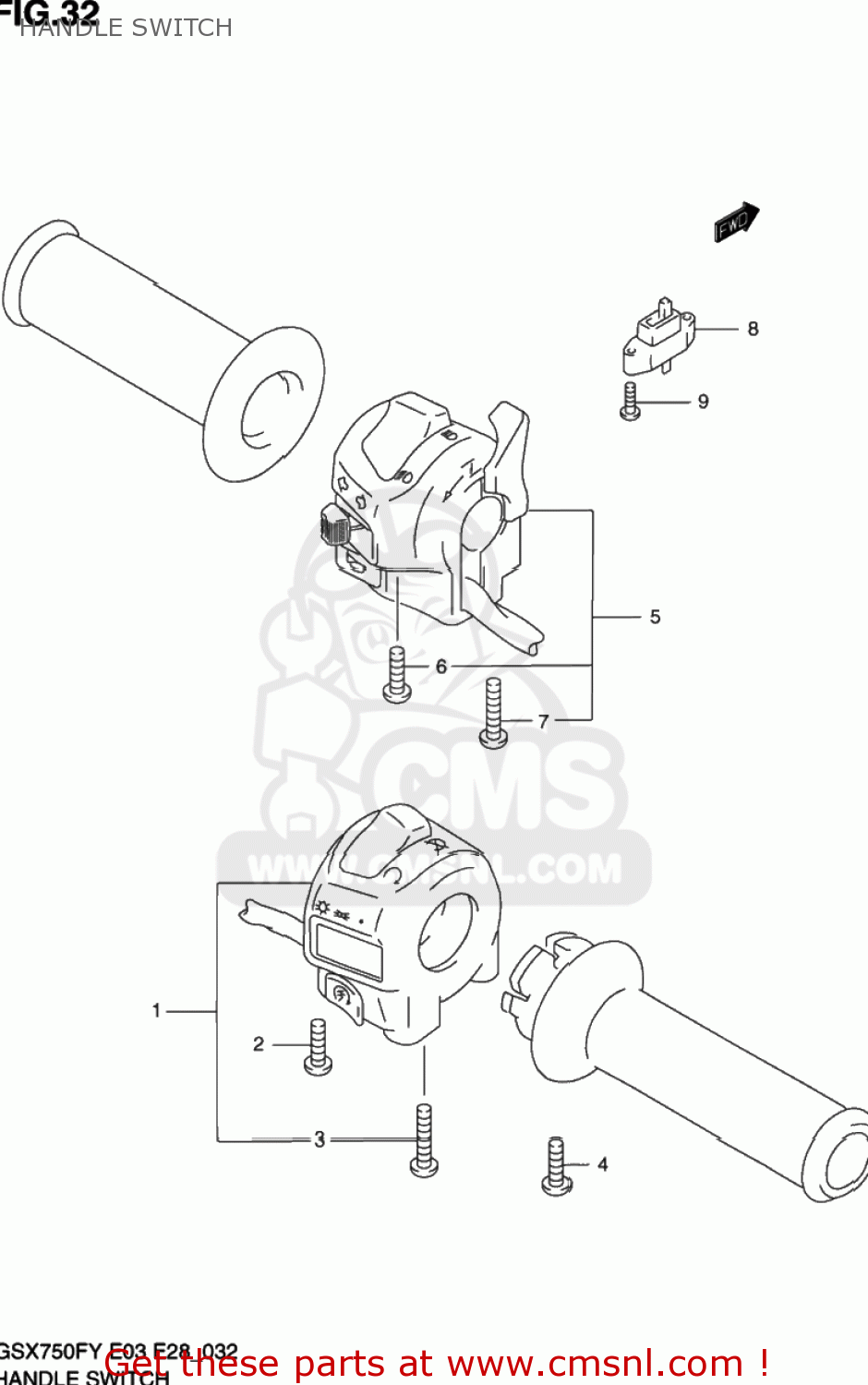

Handle switch diagram GSX750F KATANA 1998 (W) USA (E03)

HANDLE SWITCH GSX750F KATANA 1998 (W) USA (E03)
HANDLE SWITCH GSX750F KATANA 1998 (W) USA (E03)
HANDLE SWITCH GSX750F KATANA 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3720033E31
ref: 1
SWITCH ASSY,HANDLE,R
3720033E31
€ 135.00
2
0211205303
ref: 2
02112-0530A
SCREW
0211205303
€ 1.50
3
0211205503
ref: 3
02112-0550B
SCREW
0211205503
€ 2.00
4
0211205103
ref: 4
02112-0510A
SCREW
0211205103
€ 2.00
5
3740026E31
ref: 5
SWITCH ASSY,HANDLE,L
€ 133.00
6
0211205253
ref: 6
02112-0525A
SCREW
0211205253
€ 1.50
7
0211205453
ref: 7
02112-0545B
SCREW
0211205453
€ 4.00
8
3756038A00
ref: 8
SWITCH ASSY,CLUTCH
3756038A00
€ 20.00
9-1
3756426E00
ref: 9-1
09132-03017
SCREW
3756426E00
€ 3.00
9-2
0913203017
ref: 9-2
SCREW(3X14)
0913203017
€ 3.00
