COWLING BODY INSTALLATION PARTS

GSX750F KATANA 1998 (W) USA (E03)

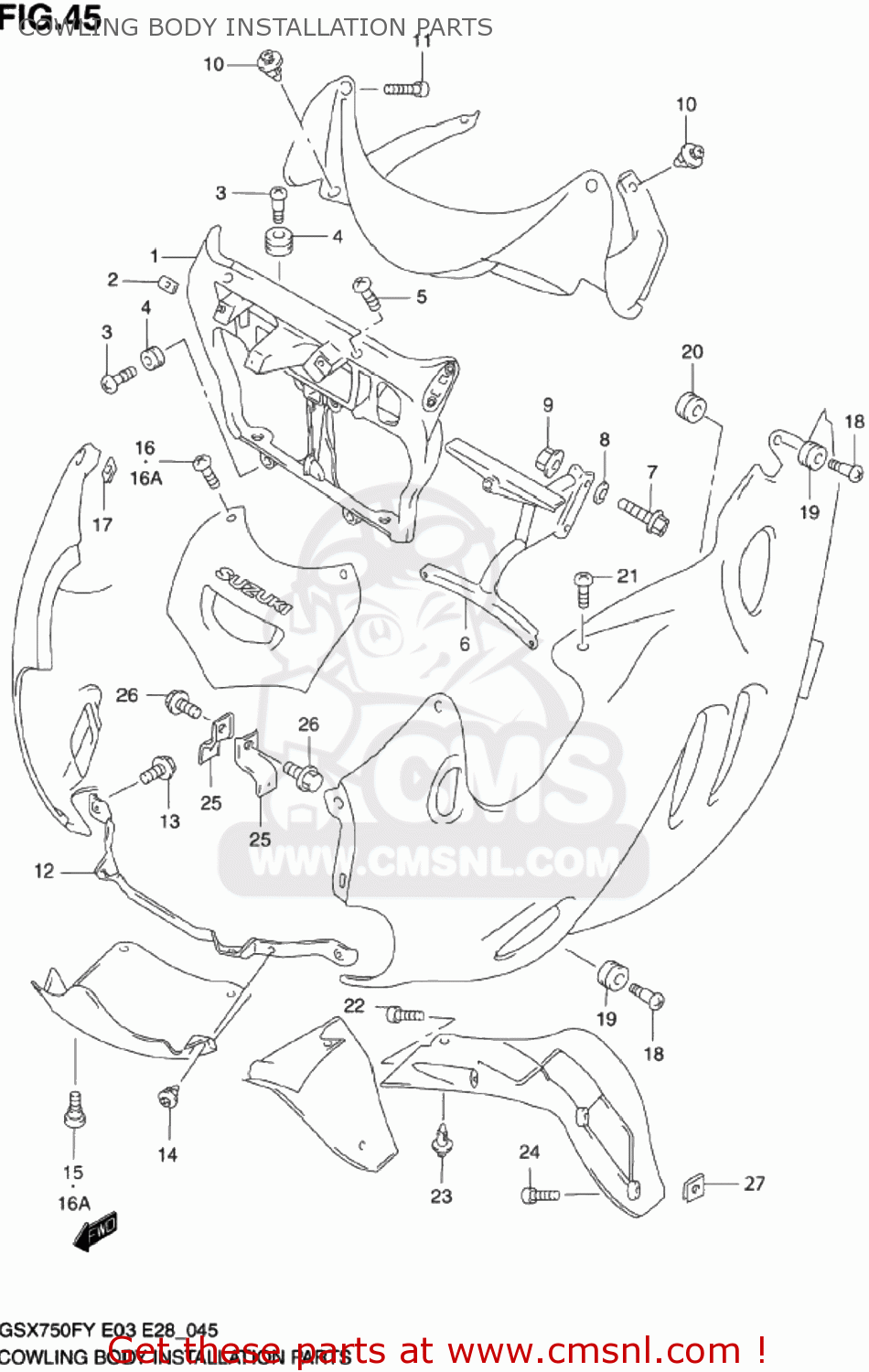

Cowling body installation parts diagram GSX750F KATANA 1998 (W) USA (E03)

COWLING BODY INSTALLATION PARTS GSX750F KATANA 1998 (W) USA (E03)
COWLING BODY INSTALLATION PARTS GSX750F KATANA 1998 (W) USA (E03)
COWLING BODY INSTALLATION PARTS GSX750F KATANA 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9452008F00
ref: 1
BRACE,COWLING FR
9452008F00
€ 355.50
2-1
9448432B00
ref: 2-1
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
2-2
9448424F00
ref: 2-2
NUT,COWL
9448424F00
€ 4.00
3-1
0913906087
ref: 3-1
09139-06126
SCREW(6X20)
0913906087
€ 4.00
3-2
0913906126
ref: 3-2
SCREW(6X20)
0913906126
€ 4.00
4
0932009016
ref: 4
CUSHION
0932009016
€ 2.50
5
0214205163
ref: 5
02142-0516A
SCREW
0214205163
€ 2.50
6-1
9451008F00
ref: 6-1
94510-08F10
BRACE COMP,COWLING,REAR
€ 124.50
6-2
9451008F10
ref: 6-2
BRACE,COWLING RR
€ 124.50
7
0910308222
ref: 7
BOLT(8X40)
0910308222
€ 3.00
8
0916408020
ref: 8
WASHER
0916408020
€ 2.50
9
0831610083
ref: 9
08316-1008B
NUT
0831610083
€ 3.00
10
09409083085ES
ref: 10
CLIP(BLACK)
09409083085ES
€ 2.00
11
0354105163
ref: 11
03541-0516A
SCREW
0354105163
€ 1.50
12
9454008F00
ref: 12
BRACKET,PANEL CTR LWR
9454008F00
€ 19.50
13
0158006163
ref: 13
01580-0616A
BOLT
0158006163
€ 2.50
14
09409063225PK
ref: 14
CLIP(BLACK)
09409063225PK
€ 3.00
15
0913905025
ref: 15
SCREW(5X14)
0913905025
€ 2.00
16
0913905025
ref: 16
SCREW(5X14)
0913905025
€ 2.00
16A
0913905042
ref: 16A
SCREW(5X16)
0913905042
€ 2.50
17
0914805038
ref: 17
NUT
0914805038
€ 2.50
18-1
0913906087
ref: 18-1
09139-06126
SCREW(6X20)
0913906087
€ 4.00
18-2
0913906126
ref: 18-2
SCREW(6X20)
0913906126
€ 4.00
19
0932009016
ref: 19
CUSHION
0932009016
€ 2.50
20
0932008018
ref: 20
CUSHION
0932008018
€ 4.00
21
0913905054
ref: 21
SCREW(5X16)
0913905054
€ 6.00
22
0913604003
ref: 22
SCREW(4X10)
0913604003
€ 4.50
23
09409083085ES
ref: 23
CLIP(BLACK)
09409083085ES
€ 2.00
24-1
0354115163
ref: 24-1
03541-1516A
SCREW
0354115163
€ 2.00
24-2
0214215163
ref: 24-2
02142-1516A
SCREW
€ 3.00
25
9453008F00
ref: 25
BRACKET,COWLING SIDE LWR
9453008F00
€ 6.00
26-1
0911606039
ref: 26-1
09116-06109
BOLT 6X12
€ 1.50
26-2
0911606109
ref: 26-2
BOLT(6X12)
0911606109
€ 1.50
27
0914805038
ref: 27
NUT
0914805038
€ 2.50
