WIRING HARNESS (MODEL W/X/Y/K1/K2)

GSX750F KATANA 1998 (W) USA (E03)

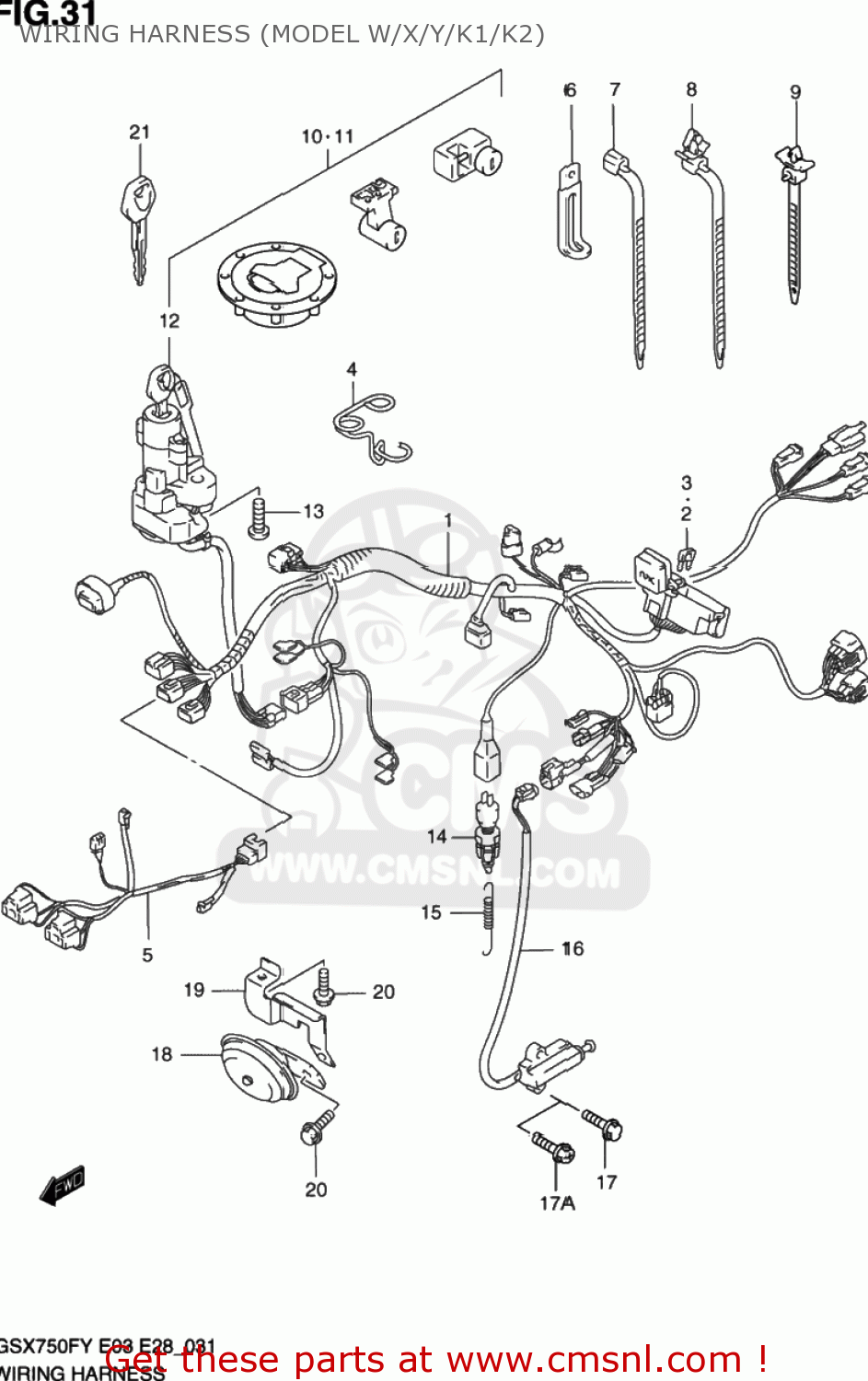

Wiring harness (model w/x/y/k1/k2) diagram GSX750F KATANA 1998 (W) USA (E03)

WIRING HARNESS (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)
WIRING HARNESS (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)
WIRING HARNESS (MODEL W/X/Y/K1/K2) GSX750F KATANA 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661008F10
ref: 1-1
HARNESS,WIRING NO.1
€ 485.00
1-2
3661008F20
ref: 1-2
HARNESS,WIRING
€ 485.00
1-3
3661008F30
ref: 1-3
HARNESS,WIRING
€ 485.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
3661908F00
ref: 4
GUIDE,WIRING HARNESS
€ 9.00
5
3662008F10
ref: 5
HARNESS,WIRING NO.2
3662008F10
€ 57.00
6
3685308F00
ref: 6
WIRE,LEAD
3685308F00
€ 33.50
7-1
0940406433
ref: 7-1
CLAMP(L:80)
0940406433
€ 3.00
7-2
0940406435
ref: 7-2
CLAMP(L:135)
0940406435
€ 2.50
8-1
0940714403
ref: 8-1
CLAMP(L:125)
0940714403
€ 2.50
8-2
0940718402
ref: 8-2
CLAMP(L:165)
0940718402
€ 2.50
9-1
0940711402
ref: 9-1
CLAMP(L:90)
0940711402
€ 2.50
9-2
0940714408
ref: 9-2
09407-17402
CLAMP(L:120)
0940714408
€ 5.00
9-3
0940717401
ref: 9-3
09407-17402
CLAMP
0940717401
€ 5.00
10
3710333810
ref: 10
37103-33811
LOCK SET
€ 410.50
11
3710333820
ref: 11
LOCK SET
€ 141.50
12
3710033E20
ref: 12
LOCK ASSY,STEERING
3710033E20
€ 223.50
13
0913908016
ref: 13
BOLT(8X20)
0913908016
€ 3.50
14
3774024A00
ref: 14
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
15
0944306005
ref: 15
SPRING
0944306005
€ 6.00
16
3784044X50
ref: 16
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
17A
0216206163
ref: 17A
02162-0616B
SCREW
0216206163
€ 2.50
17-1
0155006203
ref: 17-1
01550-0620A
BOLT
0155006203
€ 2.50
17-2
0155006163
ref: 17-2
01550-0616A
BOLT
0155006163
€ 2.50
18
3850008F10
ref: 18
HORN ASSY
3850008F10
€ 75.50
19
3859008F00
ref: 19
BRACKET,HORN
€ 7.00
20
0155008123
ref: 20
01550-0812A
BOLT
0155008123
€ 3.50
21
3714633E00
ref: 21
KEY,BLANK
3714633E00
€ 13.00
