CARBURETOR FITTINGS
GSX750FSK 1996 (T) BRAZIL (E37)

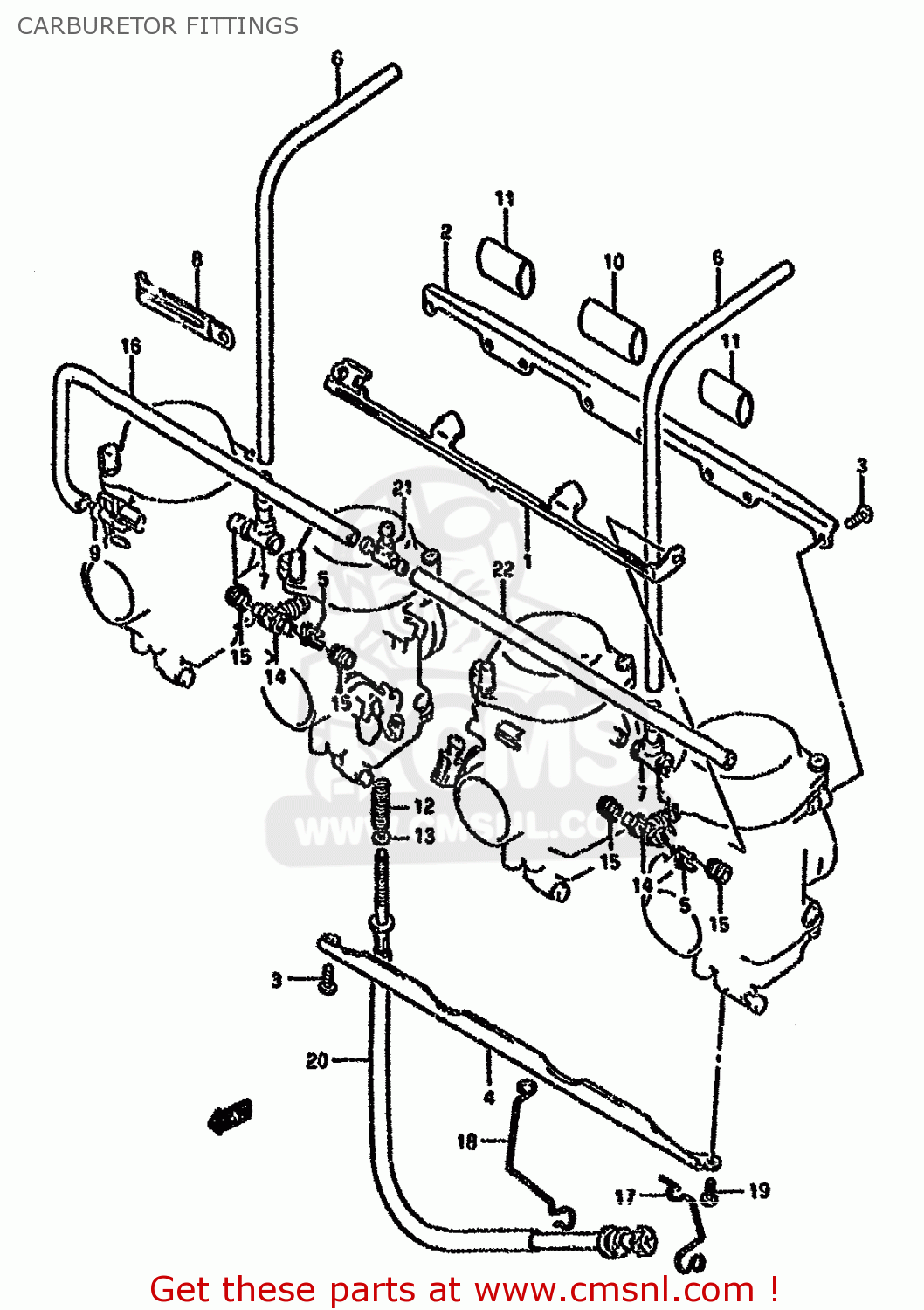

Carburetor fittings diagram GSX750FSK 1996 (T) BRAZIL (E37)
CARBURETOR FITTINGS GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
1341320C00
ref: 1
LEVER
€ 24.50
2
1362817C10
ref: 2
PLATE
€ 29.50
3
0211205127
ref: 3
13602-05128
SCREW
€ 2.50
4
1362817C00
ref: 4
PLATE
€ 28.50
5
1343917C00
ref: 5
HOLDER
€ 12.00
6
0935270103600
ref: 6
13684-20C20
HOSE(7X10.2X600)
€ 8.00
7
1368420C10
ref: 7
HOSE
€ 7.00
8-1
0940406433
ref: 8-1
MODEL K/L/M/N/P/R/S
CLAMP(L:80)
€ 3.00
8-2
0940406431
ref: 8-2
MODEL T
CLAMP(L:65)
€ 2.50
9-1
1367105A30
ref: 9-1
MODEL K/L/M/N/P/R/S
CLIP
€ 2.50
9-2
0940108410
ref: 9-2
MODEL T
CLIP
€ 3.00
10
1368443440
ref: 10
13684-17C00
HOSE(16X19X100)
€ 6.50
11
1368443440
ref: 11
13684-17C10
HOSE(16X19X100)
€ 6.50
12
1337514D10
ref: 12
13268-43410
SPRING
€ 6.50
13
1342738300
ref: 13
WASHER
€ 1.50
14
1368544B00
ref: 14
NIPPLE
€ 10.00
15
1367344B00
ref: 15
SEAL
€ 6.00
16
1368420C00
ref: 16
HOSE
€ 20.00
17
1367120C00
ref: 17
CLIP
€ 10.50
18
1367120C10
ref: 18
CLIP
€ 10.50
19
1360105148
ref: 19
SCREW(5X14)
€ 3.00
20
1327920C00
ref: 20
ADJUSTER
€ 54.50
21
1368548B00
ref: 21
E18,E39
NIPPLE
€ 9.00
22
1368717C00
ref: 22
E18,E39
HOSE
€ 28.50
4-4
1320420C60
ref: 4-4
MODEL S E22
CARBURETOR ASSY, RH
€ 428.50
4-5
1320420CD0
ref: 4-5
MODEL T E22
CARBURETOR ASSY, RH
€ 403.00
4-6
1320420C70
ref: 4-6
E24
CARBURETOR ASSY, RH
€ 428.50
4-7
1320420C90
ref: 4-7
E37
CARBURETOR ASSY, RH
€ 0.00
5
1350717C01
ref: 5
DIAPHRAGM
€ 24.50
6
1350117C00
ref: 6
VALVE,PISTON
€ 69.50
7
1339431210
ref: 7
CLIP,NEEDLE
€ 3.50
8
1338242A00
ref: 8
RING
€ 3.50
9
1338744030
ref: 9
RING
€ 5.00
10-1
1341742A00
ref: 10-1
MODEL S
SPRING
€ 6.00
10-2
1341707C30
ref: 10-2
MODEL T
SPRING
€ 9.00
11-1
1338320C00
ref: 11-1
NEEDLE,JET
€ 16.50
11-2
1338320C30
ref: 11-2
E18
NEEDLE,JET
€ 11.50
12
1326744B00
ref: 12
ML:2,MR:1
SCREW
€ 3.50
13
1325844B00
ref: 13
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
14-1
0949235010
ref: 14-1
JET,PILOT(37.5)
€ 10.50
14-2
0949232006
ref: 14-2
E18
JET,PILOT(32.5)
€ 8.50
15-1
0949400630
ref: 15-1
JET,NEEDLE(Y-2)
€ 24.50
15-2
0949400633
ref: 15-2
E18
JET,NEEDLE (Y-1)
€ 30.00
16
1350917C00
ref: 16
O RING
€ 4.50
17-1
0949121016
ref: 17-1
JET,MAIN(105)
€ 9.50
17-2
0949121014
ref: 17-2
MODEL T E22
JET,MAIN(107.5)
€ 8.50
18-1
0949121016
ref: 18-1
LH,ML,RH E24
JET,MAIN(105)
€ 9.50
18-2
0949122016
ref: 18-2
MR E24
JET,MAIN(110)
€ 7.00
19
1324724500
ref: 19
LH,RH
PLUG,DRAIN
€ 12.00
20-1
1325020C00
ref: 20-1
FLOAT/NEEDLE VALVE ASSEMBLY
€ 115.50
20-2
1325020C10
ref: 20-2
E37
FLOAT/NEEDLE VALVE ASSY
€ 115.50
21
1337446710
ref: 21
O RING
€ 4.50
22
1337444080
ref: 22
O-RING,NEEDLE VALVE
€ 6.00
23
1360234390
ref: 23
LH,ML,RH:2,MR:1
SCREW
€ 2.50
24
0211205127
ref: 24
SCREW
€ 2.50
25
1327144B00
ref: 25
ML:2,MR:1
SPRING
€ 4.00
26
1326817C10
ref: 26
ML:2,MR:1
SPRING
€ 7.00
27
1350817C00
ref: 27
CAP
€ 4.50
28
1367105A40
ref: 28
MODEL S
CLIP
€ 4.00
29
1324713A00
ref: 29
ML,MR
SCREW,DRAIN
€ 5.50
30
1350217C00
ref: 30
COVER,DIAPHRAGM
€ 38.50
31
1341817C00
ref: 31
CAP,STARTER
€ 5.00
32
1341817C10
ref: 32
HOLDER,GUIDE
€ 14.00
33
1341709110
ref: 33
SPRING
€ 6.00
34
1341120C00
ref: 34
PLUNGER ASSEMBLY
€ 18.00
35-1
1327947070
ref: 35-1
MODEL S EXCEPT E18
SCREW,PILOT
€ 11.50
35-2
1327947070
ref: 35-2
MODEL S E22,E24
SCREW,PILOT
€ 11.50
35-3
1327947070
ref: 35-3
MODEL T EXCEPT E18
SCREW,PILOT
€ 11.50
35-4
1327947070
ref: 35-4
MODEL T E22
SCREW,PILOT
€ 11.50
35-5
1327947070
ref: 35-5
MODEL T E24
SCREW,PILOT
€ 11.50
36
1326847070
ref: 36
EXCEPT E18
SPRING
€ 5.00
37
1329129900
ref: 37
EXCEPT E18
WASHER
€ 2.00
38
1329529900
ref: 38
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
39
0211205164
ref: 39
MR
SCREW
€ 2.00
40
1335734C00
ref: 40
PLUG
€ 4.50
41
0832201053
ref: 41
MR
WASHER
€ 2.50
42
1367120C20
ref: 42
MR
CLIP
€ 5.50
43
0949327002
ref: 43
E18
JET,AIR(1.35)
€ 15.50
43-3
0949328007
ref: 43-3
E30
JET,AIR
€ 15.50
44
0949350004
ref: 44
MODEL L/M/N/P E17
JET,AIR(0.5)
€ 10.50
