ELECTRICAL
GSX750FSK 1996 (T) BRAZIL (E37)

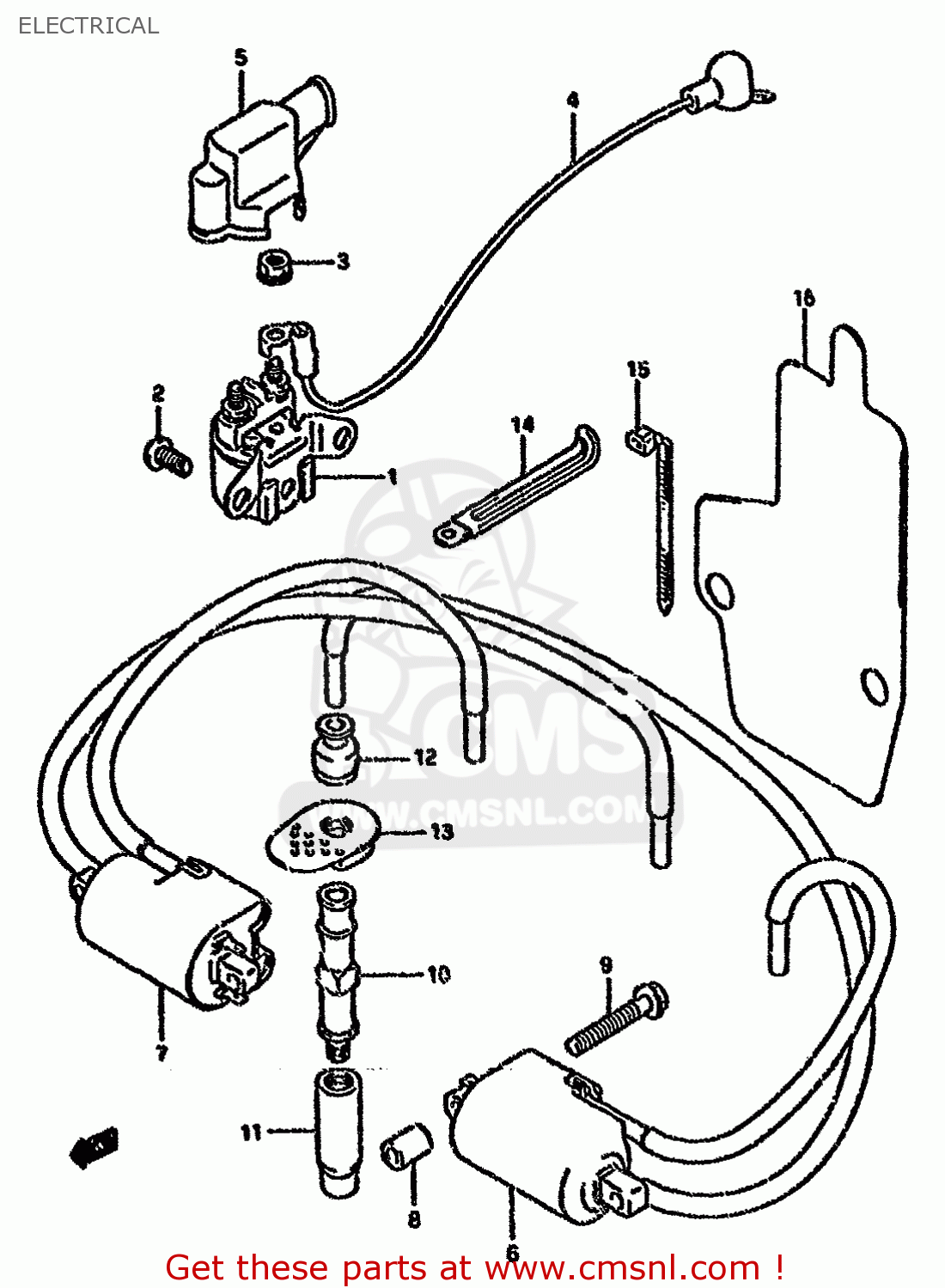

Electrical diagram GSX750FSK 1996 (T) BRAZIL (E37)
ELECTRICAL GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0211206103
ref: 2
SCREW
€ 1.50
3
0836135063
ref: 3
NUT
€ 2.00
4
3381041C00
ref: 4
33850-19C00
WIRE,STARTER MOTOR LEAD
€ 29.00
5
3186110D10
ref: 5
31861-19C00
CAP,STARTER RELAY
€ 6.50
6
3341019C00
ref: 6
COIL ASSEMBLY,IGNITION NO
€ 147.00
7
3342019C00
ref: 7
COIL ASSEMBLY,IGNITION NO
€ 162.50
8
0918006198
ref: 8
SPACER(6.2X12X16)
€ 3.50
9
0155006453
ref: 9
BOLT (6X45)
€ 2.50
10
3351020C02
ref: 10
33510-20C01
CAP,SPARK PLUG
€ 37.50
11
3354120C00
ref: 11
SEAL,SPARK PLUG
€ 19.50
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
€ 4.50
13
3354348B00
ref: 13
COVER,SPARK PLUG CAP
€ 12.50
14-1
0940406403
ref: 14-1
CLAMP
€ 2.50
14-2
0940406431
ref: 14-2
CLAMP(L:65)
€ 2.50
15
0940718402
ref: 15
CLAMP(L:165)
€ 2.50
16
3341120C00
ref: 16
MODEL S/T
COVER,IGNITION COIL
€ 7.00
