HANDLE LEVER
GSX750FSK 1996 (T) BRAZIL (E37)

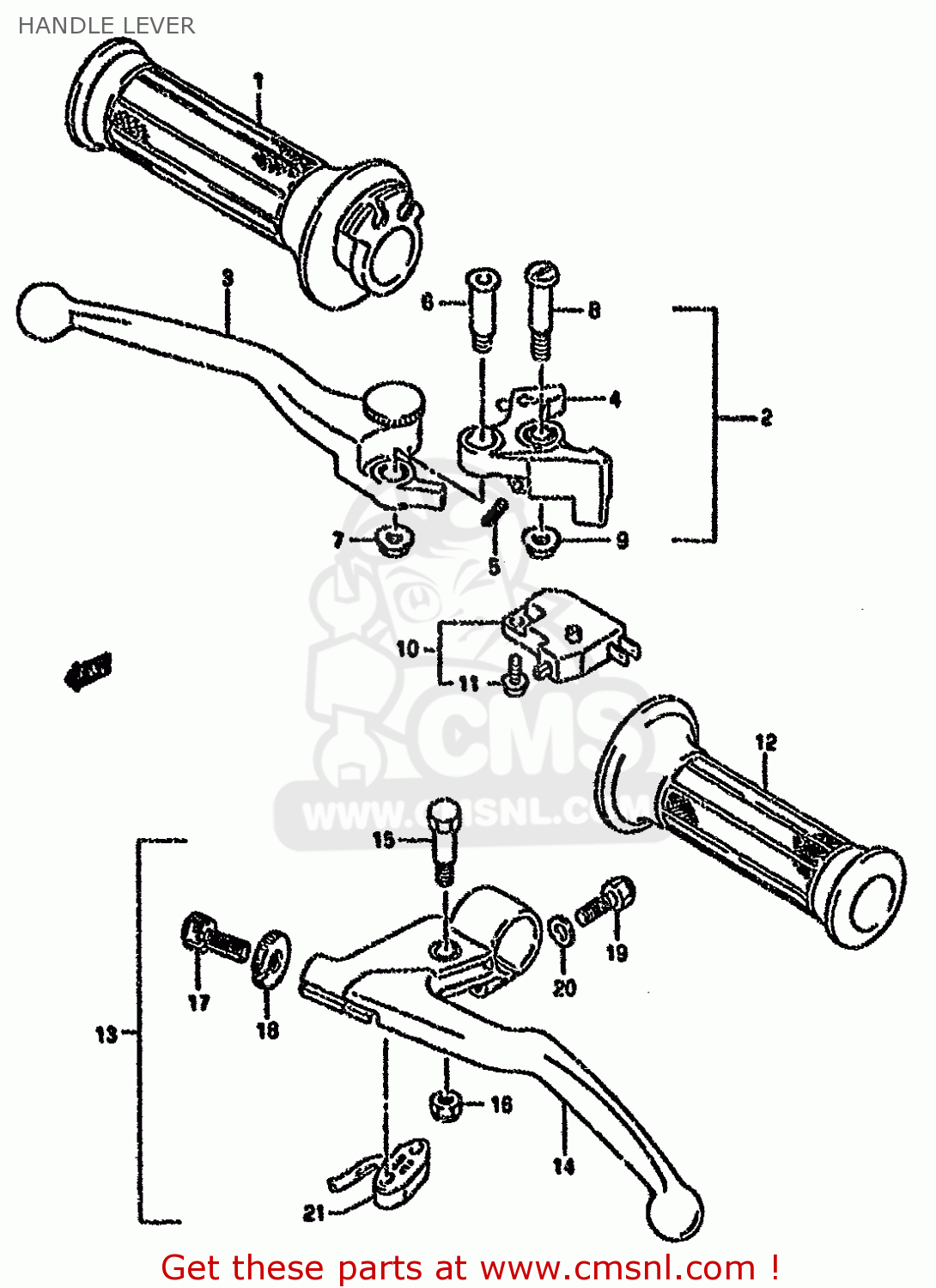

Handle lever diagram GSX750FSK 1996 (T) BRAZIL (E37)
HANDLE LEVER GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
5711049501
ref: 1
GRIP,THROTTLE
€ 26.00
2
5730040C01
ref: 2
LEVER ASSEMBLY,BRAKE
€ 75.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4
5743040C00
ref: 4
KNOCKER
€ 51.00
5
5743832C00
ref: 5
SPRING
€ 4.00
6-1
5743732C00
ref: 6-1
MODEL K/L/M/N/P/R/S
BOLT,LEVER
€ 6.50
6-2
5743732C01
ref: 6-2
MODEL T
BOLT,LEVER
€ 6.50
7
0831931065
ref: 7
NUT
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
€ 8.00
9
0831616064
ref: 9
NUT 6MM
€ 2.50
10
5746017C00
ref: 10
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12
5721149500
ref: 12
GRIP,L
€ 9.00
13-1
5750019C11
ref: 13-1
LEVER ASSY,CLUTCH
€ 54.00
13-2
5750019C01
ref: 13-2
E30 WITH SWITCH 5756
LEVER ASSY,CLUTCH
€ 48.00
14
5762019C01
ref: 14
LEVER,CLUTCH
€ 34.00
15
5743149110
ref: 15
BOLT,LEVER PIVOT
€ 5.00
16
0831921065
ref: 16
NUT
€ 2.50
17
5744144400
ref: 17
ADJUSTER,CABLE
€ 5.50
18
5744211010
ref: 18
57442-44400
NUT,CABLE ADJUSTER
€ 4.00
19
0120406204
ref: 19
BOLT
€ 2.00
20
0832221064
ref: 20
WASHER
€ 2.00
