HANDLEBAR (MODEL T)
GSX750FSK 1996 (T) BRAZIL (E37)

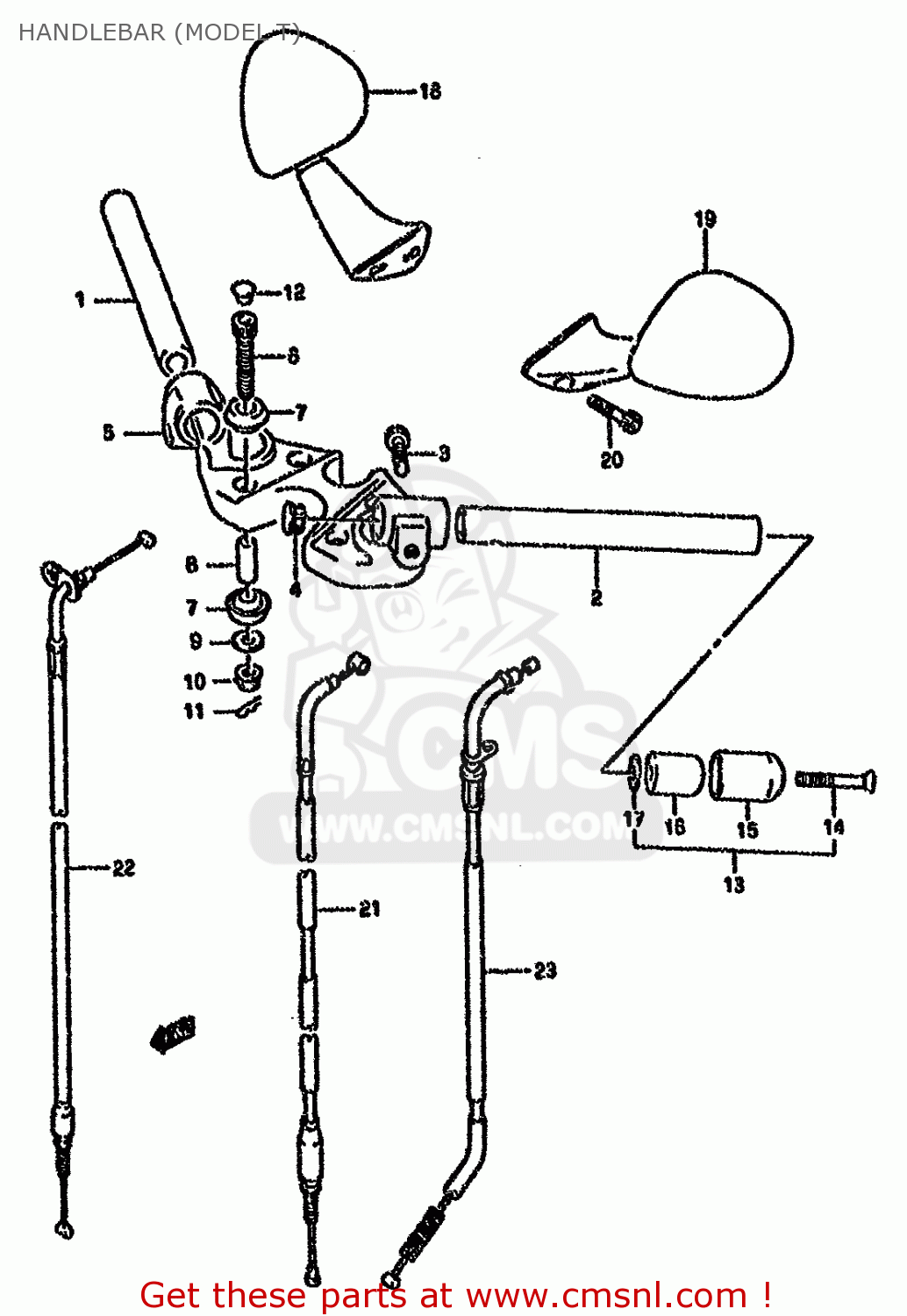

Handlebar (model t) diagram GSX750FSK 1996 (T) BRAZIL (E37)
HANDLEBAR (MODEL T) GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
5611020C00
ref: 1
HANDLEBAR,R
€ 36.50
2
5615020C00
ref: 2
HANDLEBAR,L
€ 35.50
3
0713008303
ref: 3
BOLT
€ 3.00
4
5721533400
ref: 4
CAP,HANDLEBAR
€ 4.00
5
5621120C20
ref: 5
HOLDER,HANDLEBAR
€ 327.50
6
0910610054
ref: 6
BOLT(10X77)
€ 5.00
7
5624042A00
ref: 7
RUBBER,HANDLE HOLDER
€ 23.00
8
5624320C00
ref: 8
SPACER,HANDLEBAR BRACKET
€ 5.50
9
0916010094
ref: 9
WASHER(10.5X30X3.2)
€ 3.50
10
0831931105
ref: 10
NUT 10MM
€ 3.00
11
0938510005
ref: 11
CLIP
€ 1.50
12
0925006008
ref: 12
CAP(OD:10)
€ 3.00
13
5620001831
ref: 13
BALANCER SET,HANDLEBAR
€ 55.00
14
0212206603
ref: 14
SCREW
€ 3.00
15
5627449310
ref: 15
CAP,HANDLE BALANCER
€ 141.00
16
5627149310
ref: 16
BALANCER,HANDLEBAR
€ 15.50
17
5627534401
ref: 17
SPACER,BALANCER
€ 2.50
18-1
5650019C00
ref: 18-1
E18,E25
MIRROR ASSEMBLY,REAR VIEW
€ 95.50
18-2
5650019C10
ref: 18-2
MIRROR ASSY,RH
€ 147.50
18-3
5650019C20
ref: 18-3
E24
MIRROR ASSY,RR
€ 95.50
19-1
5660019C00
ref: 19-1
E18,E25
MIRROR ASSEMBLY,REAR VIEW
€ 95.50
19-2
5660019C10
ref: 19-2
MIRROR ASSY,LH
€ 147.50
19-3
5660019C20
ref: 19-3
E24
MIRROR ASSY,LH
€ 95.50
20
0713006403
ref: 20
BOLT
€ 3.50
21
5820020C00
ref: 21
CABLE ASSY,CLUTCH
€ 36.00
22
5830020C00
ref: 22
CABLE ASSY,THROTTLE
€ 30.50
23
5841020C02
ref: 23
CABLE,STARTER
€ 34.50
21
5820020C00
ref: 21
CABLE ASSY,CLUTCH
€ 36.00
22
5830020C00
ref: 22
CABLE ASSY,THROTTLE
€ 30.50
23
5841020C02
ref: 23
CABLE,STARTER
€ 34.50
24
5841020C02
ref: 24
58410-20C01
CABLE,STARTER
€ 34.50
