CRANKCASE COVER
GSX750FSK 1996 (T) BRAZIL (E37)

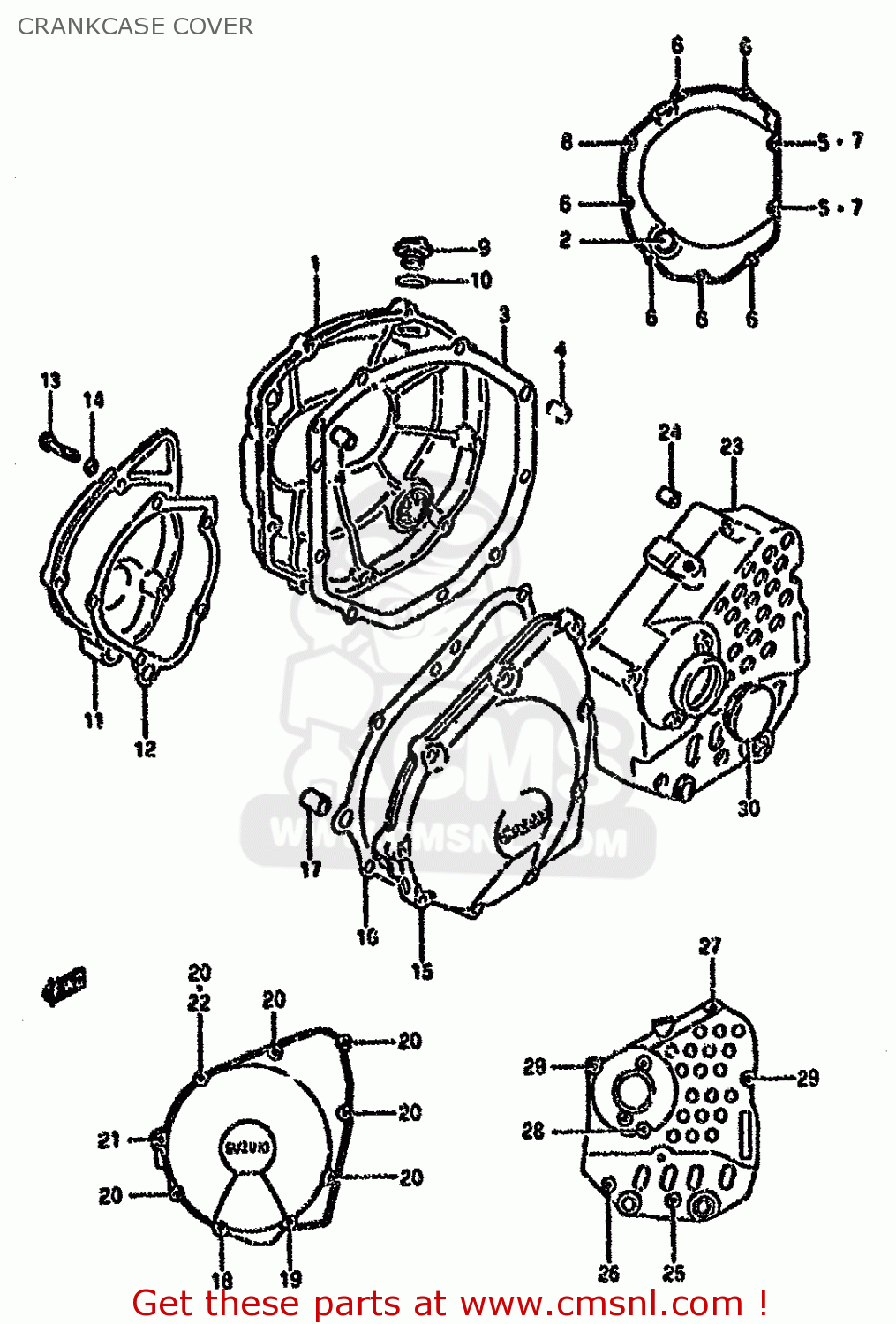

Crankcase cover diagram GSX750FSK 1996 (T) BRAZIL (E37)
CRANKCASE COVER GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
1134020C00
ref: 1
COVER COMP,CLUTCH
€ 183.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148227A20
ref: 3
11482-27A10
GASKET,CL COVER (NAS)
€ 18.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6-1
0713006255
ref: 6-1
MODEL K/L/M/N/P
BOLT
€ 3.00
6-2
0713006253
ref: 6-2
MODE R/S/T
BOLT,CL.COVER
€ 3.00
7-1
0711006305
ref: 7-1
MODEL K/L/M/N/P
BOLT
€ 3.00
7-2
0713006303
ref: 7-2
MODEL R/S/T
BOLT
€ 3.00
8-1
0713006355
ref: 8-1
MODEL K/L/M/N/P
BOLT
€ 3.50
8-2
0713006353
ref: 8-2
MODEL R/S/T
BOLT
€ 3.50
9
0925920015
ref: 9
PLUG
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11
1138148B01
ref: 11
11381-48B00
COVER,SIGNAL GENERATOR
€ 72.00
12-1
1149127A20
ref: 12-1
11491-27A10 MODEL K/
GASKET,SIGNAL GENERATOR COVER (NAS)
€ 8.00
12-2
1149127A30
ref: 12-2
MODEL S/T
GASKET,SIGNAL GEN COVER (NAS)
€ 8.00
13-1
0910606059
ref: 13-1
MODEL K/L/M/N/P
BOLT
€ 3.00
13-2
0910606082
ref: 13-2
MODEL R/S/T
BOLT(6X22)
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
€ 2.00
15
1135120C00
ref: 15
COVER,STARTER GEAR
€ 159.50
16
1148327A20
ref: 16
11483-27A10
GASKET,STARTER GEAR COVER (NAS)
€ 14.50
17
0920611005
ref: 17
PIN (11X20)(SUS)
€ 6.50
18-1
0711006165
ref: 18-1
MODEL K/L/M/N/P
BOLT
€ 3.00
18-2
0713006163
ref: 18-2
MODEL R/S/T
BOLT,OIL FILLE
€ 3.00
19-1
0713006205
ref: 19-1
MODEL K/L/M/N/P
BOLT
€ 3.00
19-2
0713006203
ref: 19-2
MODEL R/S/T
BOLT,CRKCASE,R
€ 3.00
20-1
0711006255
ref: 20-1
MODEL K/L/M/N/P
BOLT
€ 3.00
20-2
0713006253
ref: 20-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
21-1
0713006405
ref: 21-1
MODEL K/L/M/N/P
BOLT
€ 3.50
21-2
0713006403
ref: 21-2
MODEL R/S/T
BOLT
€ 3.50
22
0916806024
ref: 22
GASKET(5.8X11X1.2) (NAS)
€ 2.00
23
1136120C01
ref: 23
11361-20C00
COVER,ENGINE SPROCKET
€ 136.00
24
0421109129
ref: 24
PIN
€ 2.00
25-1
0713006405
ref: 25-1
MODEL K/L/M/N/P
BOLT
€ 3.50
25-2
0713006403
ref: 25-2
MODEL R/S/T
BOLT
€ 3.50
26-1
0711006305
ref: 26-1
MODEL K/L/M/N/P
BOLT
€ 3.00
26-2
0713006303
ref: 26-2
MODEL R/S/T
BOLT
€ 3.00
27-1
0711006505
ref: 27-1
MODEL K/L/M/N/P
BOLT
€ 3.00
27-2
0713006503
ref: 27-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
28-1
0711006655
ref: 28-1
MODEL K/L/M/N/P
BOLT
€ 4.00
28-2
0713006653
ref: 28-2
MODEL R/S/T
BOLT
€ 4.00
29-1
0711006705
ref: 29-1
MODEL K/L/M/N/P
BOLT
€ 4.00
29-2
0713006703
ref: 29-2
MODEL R/S/T
BOLT
€ 4.00
30
0925030003
ref: 30
CAP(OD:36)
€ 4.00
