FUEL TANK (MODEL T)
GSX750FSK 1996 (T) BRAZIL (E37)

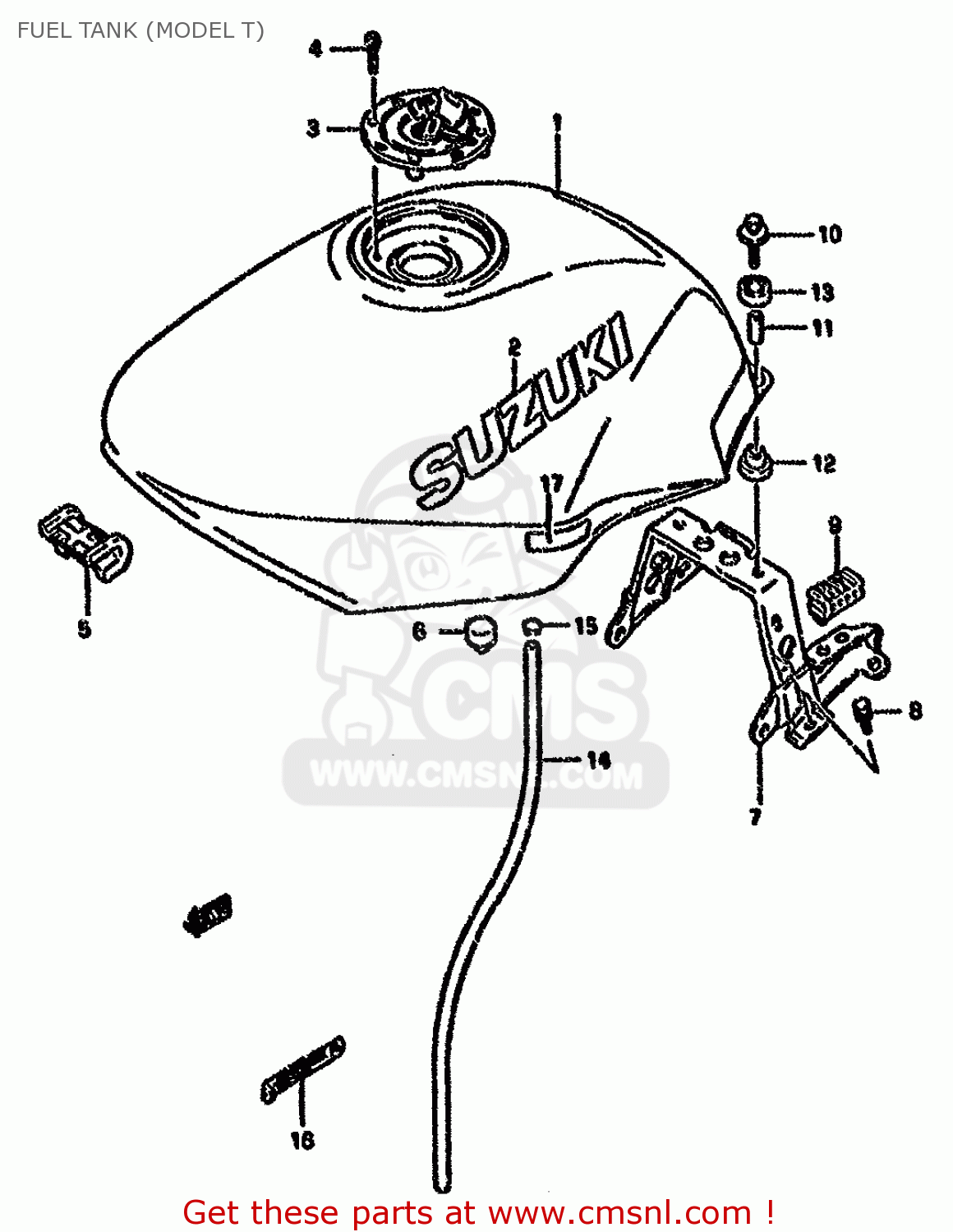

Fuel tank (model t) diagram GSX750FSK 1996 (T) BRAZIL (E37)
FUEL TANK (MODEL T) GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410043C30Y98
ref: 1-1
TANK ASSEMBLY,FUEL
€ 421.00
1-2
4410043C3033J
ref: 1-2
TANK ASSEMBLY,FUEL
€ 847.00
1-3
4410043C40Y98
ref: 1-3
E22
TANK ASSY,FUEL (GREEN)
€ 0.00
1-4
4410043C4033J
ref: 1-4
E22
TANK ASSY, FUEL (BLACK)
€ 0.00
2
6811112C0017U
ref: 2
EMBLEM,FUEL TANK
€ 15.50
3
4420101832
ref: 3
CAP SET,FUEL TANK
€ 204.00
4
0910605017
ref: 4
BOLT(5X20)
€ 3.00
5
4451119C00
ref: 5
CUSHION,FUEL TANK FR
€ 8.00
6
0932110011
ref: 6
CUSHION
€ 3.00
7
4455019C00
ref: 7
BRACKET,FUEL TANK RR
€ 54.50
8
0913706017
ref: 8
SCREW
€ 2.50
9
4514931300
ref: 9
CUSHION,SEAT(40X20X15)
€ 2.00
10
0911606172
ref: 10
BOLT(6X30)
€ 2.50
11
0918006072
ref: 11
SPACER
€ 2.00
12
0932010038
ref: 12
CUSHION
€ 4.00
13
0932014017
ref: 13
CUSHION
€ 3.00
14
4442319C00
ref: 14
HOSE,FUEL TANK WATER DRAIN
€ 13.00
15
0940108401
ref: 15
CLIP
€ 1.50
16
0940408420
ref: 16
CLAMP(L:120 T:1.0)
€ 3.50
17
3285110D00
ref: 17
PROTECTOR(12X40)
€ 4.50
7
0910605017
ref: 7
BOLT(5X20)
€ 3.00
8
4451119C00
ref: 8
CUSHION,FUEL TANK FR
€ 8.00
9
0932110011
ref: 9
CUSHION
€ 3.00
10
4455019C00
ref: 10
BRACKET,FUEL TANK RR
€ 54.50
11
0913706017
ref: 11
SCREW
€ 2.50
12
4514931300
ref: 12
CUSHION,SEAT(40X20X15)
€ 2.00
13
0911606172
ref: 13
BOLT(6X30)
€ 2.50
14
0918006072
ref: 14
SPACER
€ 2.00
15
0932010038
ref: 15
CUSHION
€ 4.00
16
0932014017
ref: 16
CUSHION
€ 3.00
17
4442319C00
ref: 17
HOSE,FUEL TANK WATER DRAIN
€ 13.00
18
0940108401
ref: 18
CLIP
€ 1.50
19
0940408420
ref: 19
CLAMP(L:120 T:1.0)
€ 3.50
20
3285110D00
ref: 20
MODEL R/S
PROTECTOR(12X40)
€ 4.50
12
4455019C00
ref: 12
BRACKET,FUEL TANK RR
€ 54.50
13
0913706017
ref: 13
SCREW
€ 2.50
14
4514931300
ref: 14
CUSHION,SEAT(40X20X15)
€ 2.00
15
0911606172
ref: 15
09116-06078
BOLT(6X30)
€ 2.50
16
0918006072
ref: 16
SPACER
€ 2.00
17
0932010038
ref: 17
CUSHION
€ 4.00
18
0932014017
ref: 18
CUSHION
€ 3.00
19
4442319C00
ref: 19
HOSE,FUEL TANK WATER DRAIN
€ 13.00
20
0940108402
ref: 20
CLIP
€ 1.50
21
0940408420
ref: 21
CLAMP(L:120 T:1.0)
€ 3.50
