FOOTREST
GSX750FSK 1996 (T) BRAZIL (E37)

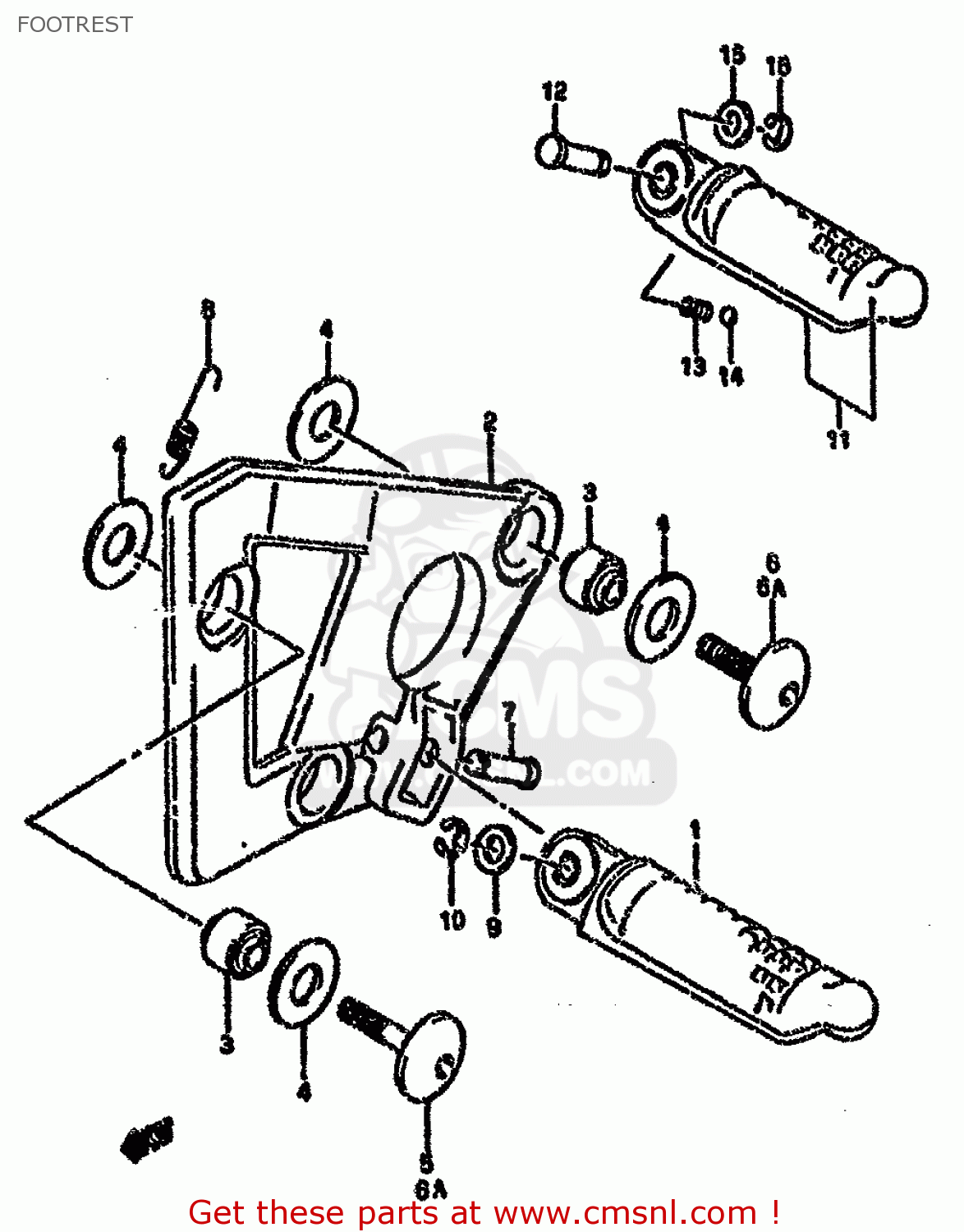

Footrest diagram GSX750FSK 1996 (T) BRAZIL (E37)
FOOTREST GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351019C01
ref: 1-1
BAR,FRONT FOOTREST,RIGHT
€ 64.50
1-2
4352019C01
ref: 1-2
BAR,FRONT FOOTREST,LEFT
€ 72.50
2-1
4351720C00
ref: 2-1
MODEL K/L/M/N/P
HOLDER,FRONT FOOTREST
€ 37.00
2-2
4351720C01
ref: 2-2
MODEL R/S/T
HOLDER,FRONT FOOTREST
€ 37.00
2-3
4352720C00
ref: 2-3
MODEL K/L/M/N/P
HOLDER,FRONT FOOTREST
€ 92.00
2-4
4352720C01
ref: 2-4
MODEL R/S/T
HOLDER,FR FOOTREST
€ 92.00
3
0931908036
ref: 3
BUSH(12X20X16)
€ 23.50
4
0916112007
ref: 4
WASHER (12X24X1.7)
€ 4.00
5
0910608080
ref: 5
MODEL K/L/M/N/P/R
BOLT L:30
€ 6.00
6
0910608089
ref: 6
MODEL K/L/M/N/P/R
BOLT(8X25)
€ 9.00
6A
0910608080
ref: 6A
MODEL S/T
BOLT L:30
€ 6.00
7-1
0920808012
ref: 7-1
MODEL K/L/M/N/P/R
PIN
€ 3.00
7-2
0920808010
ref: 7-2
MODEL S/T
PIN(8X33.2)
€ 3.00
8
0944310037
ref: 8
SPRING
€ 4.50
9-1
0832201087
ref: 9-1
MODEL K/L/M/N/P/R
WASHER
€ 2.00
9-2
0832201083
ref: 9-2
MODEL S/T
WASHER
€ 1.50
10
0833211063
ref: 10
E.RING
€ 2.00
11-1
4361020C00
ref: 11-1
BAR,PILLION FOOTREST,RIGHT
€ 52.50
11-2
4371020C00
ref: 11-2
BAR,PILLION FOOTREST,LEFT
€ 52.50
12
0920808011
ref: 12
PIN
€ 3.00
13
0944005005
ref: 13
SPRING
€ 1.50
14
0611107004
ref: 14
BALL
€ 1.50
15-1
0832211084
ref: 15-1
MODEL K/L/M/N/P
WASHER
€ 1.50
15-2
0832201083
ref: 15-2
MODEL R/S/T
WASHER
€ 1.50
16
0833211063
ref: 16
E.RING
€ 2.00
