FUEL COCK
GSX750FSK 1996 (T) BRAZIL (E37)

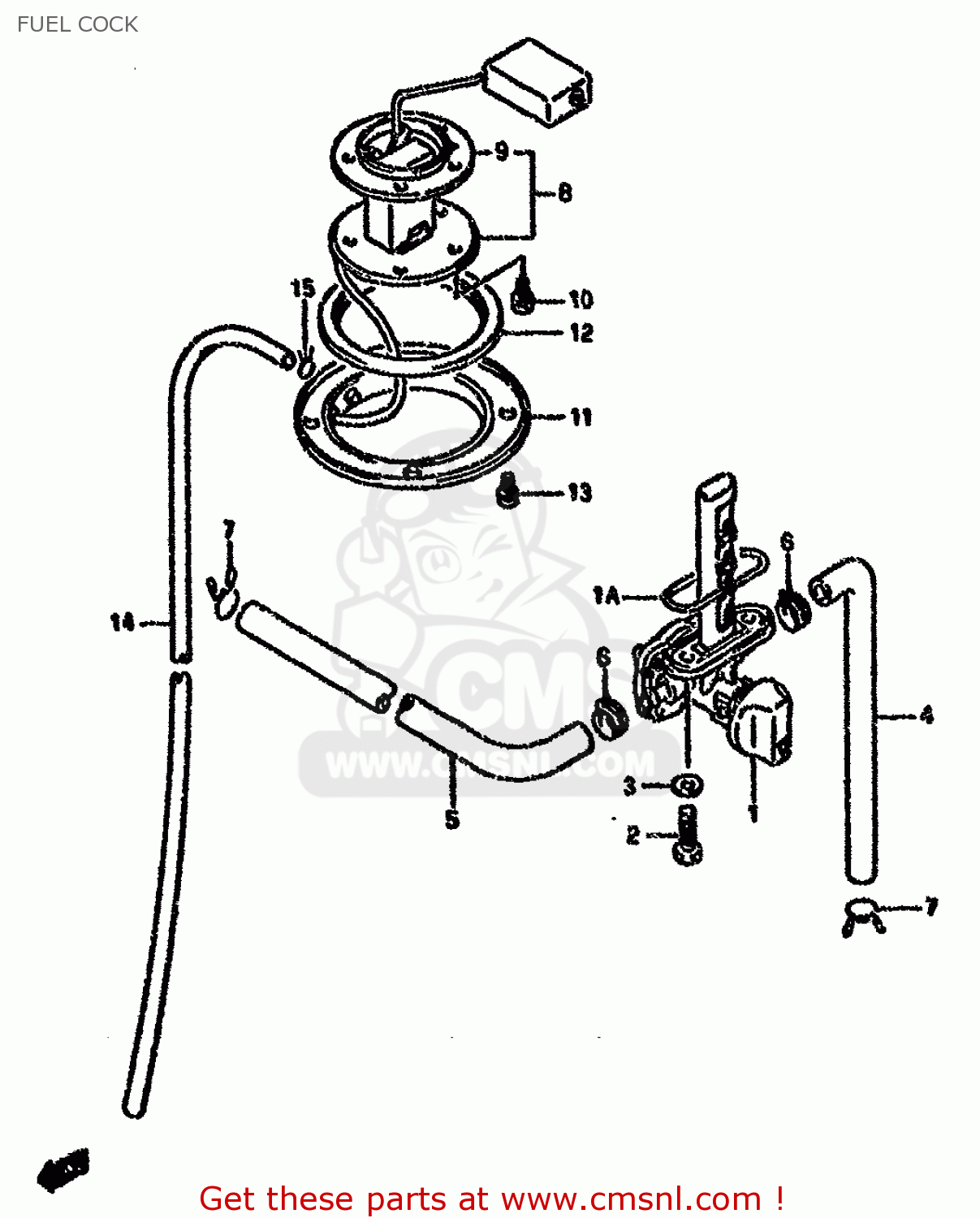

Fuel cock diagram GSX750FSK 1996 (T) BRAZIL (E37)
FUEL COCK GSX750FSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
4430020C00
ref: 1
COCK ASSY,FUEL
€ 128.00
1A
4434849170
ref: 1A
O RING
€ 3.50
2
0912806057
ref: 2
BOLT(6X20)
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0934307502
ref: 4
HOSE (7X12X150)
€ 19.00
5
0934307503
ref: 5
HOSE (7X12X330)
€ 19.00
6-1
0940112406
ref: 6-1
MODEL K/L/M/N/P/R
CLAMP
€ 2.50
6-2
0940111407
ref: 6-2
MODEL S/T
CLIP
€ 2.50
7
0940112403
ref: 7
CLIP
€ 2.00
8
3481020C00
ref: 8
GAUGE ASSY,FUEL LEVEL SENDER
€ 100.50
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
10-1
0113405106
ref: 10-1
MODEL K/L/M/N/P/R
BOLT
€ 2.00
10-2
0157005103
ref: 10-2
MODEL S/T
BOLT
€ 2.00
11
3488540A00
ref: 11
PLATE,FUEL DRAIN
€ 21.00
12
3488840A00
ref: 12
GASKET,FUEL DRAIN PLATE (NAS)
€ 9.00
13-1
0211235083
ref: 13-1
MODEL K/L/M/N/P/R
SUZUKI PART
€ 2.00
13-2
0157005083
ref: 13-2
MODEL S/T
BOLT
€ 2.00
14
093525082300B
ref: 14
HOSE(5X8.2X2000)
€ 13.00
15
0940108402
ref: 15
CLIP
€ 1.50
