CRANKCASE
GSXR1000 2006 (K6) USA (E03)

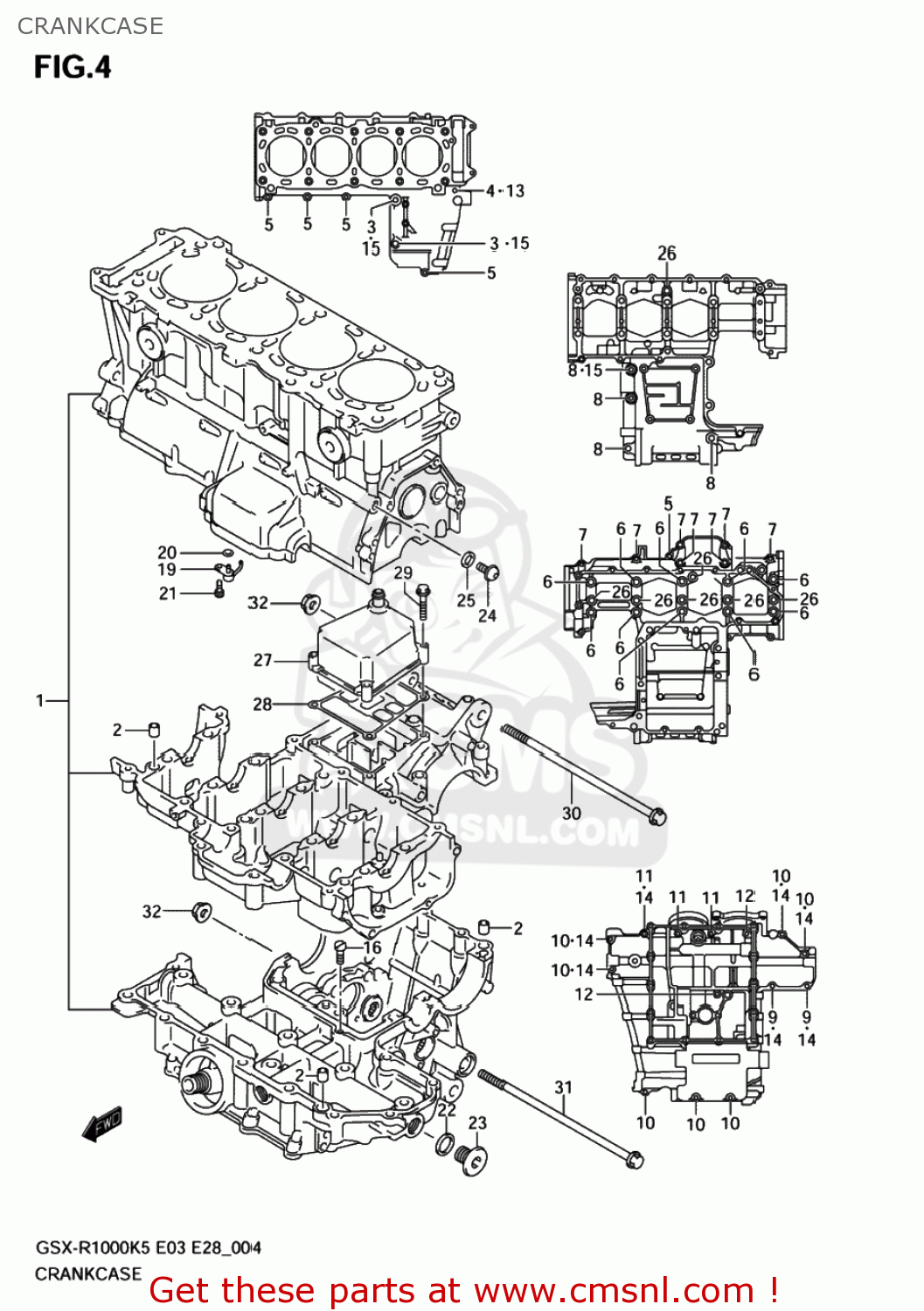

Crankcase diagram GSXR1000 2006 (K6) USA (E03)
CRANKCASE GSXR1000 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130241810
ref: 1
11302-41811
CRANKCASE SET
€ 2,925.50
2
1131933E50
ref: 2
PIN,CRANKCASE
€ 4.00
3
0910608139
ref: 3
BOLT(8X120)
€ 10.00
4
0916806023
ref: 4
GASKET(5.8X13X1.2) (NAS)
€ 2.00
5
0154706403
ref: 5
01547-0640B
BOLT
€ 3.00
6
0910309012
ref: 6
BOLT(9X95)
€ 7.00
7
0910308170
ref: 7
09103-08339
BOLT
€ 3.50
8
0712008653
ref: 8
07120-0865B
BOLT
€ 4.00
9
0154706303
ref: 9
01547-0630B
BOLT,G/S SWITC
€ 3.00
10
0154706403
ref: 10
01547-0640B
BOLT
€ 3.00
11
0154706603
ref: 11
01547-0660B
BOLT
€ 3.50
12
0154706703
ref: 12
01547-0670B
BOLT
€ 3.00
13
0154706803
ref: 13
01547-0680B
BOLT
€ 3.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
€ 2.00
15
0916808016
ref: 15
GASKET(8.2X14X1) (NAS)
€ 1.00
16
0949328012
ref: 16
JET(140)
€ 8.00
17
1222848B000E0
ref: 17
BEARING,CRANK THRUST(GREEN)
€ 8.00
18-1
1222848B000B0
ref: 18-1
BEARING,CRANK THRUST(BROWN)
€ 7.50
18-2
1222848B000C0
ref: 18-2
BEARING,CRANK THRUST(RED)
€ 7.50
18-3
1222848B000D0
ref: 18-3
BEARING,CRANK THRUST(YELLOW)
€ 7.50
18-4
1222848B000E0
ref: 18-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
18-5
1222848B000F0
ref: 18-5
BEARING,CRANK THRUST(BLUE)
€ 7.50
18-6
1222848B000G0
ref: 18-6
BEARING,CRANK THRUST(ORANGE)
€ 7.50
18-7
1222848B000H0
ref: 18-7
BEARING,CRANK THRUST(BLACK)
€ 7.50
19
1139035F00
ref: 19
JET,PISTON COOLING
€ 19.00
20
0928004004
ref: 20
O RING(D:1.2,ID:4)
€ 2.00
21
0910606075
ref: 21
BOLT(6X12)
€ 2.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
€ 2.00
23
0924816013
ref: 23
PLUG
€ 4.50
24
0924810010
ref: 24
PLUG(10X10)
€ 4.00
25
0916810002
ref: 25
GASKET(10X14X3.6) (NAS)
€ 2.00
26
0928008012
ref: 26
O RING(D:1.9,ID:7.8)
€ 4.00
27
1137035F00
ref: 27
COVER,BREATHER
€ 71.00
28
1148435F00
ref: 28
GASKET,BREATHER COVER (NAS)
€ 3.50
29
0154706303
ref: 29
01547-0630B
BOLT,G/S SWITC
€ 3.00
30
0910310041
ref: 30
09103-10041-A05
BOLT 10X215
€ 9.00
31
0910310041
ref: 31
09103-10041-A05
BOLT 10X215
€ 9.00
32
0915910058
ref: 32
09159-10115
NUT
€ 4.00
