FRAME COVER

GSXR1000 2006 (K6) USA (E03)

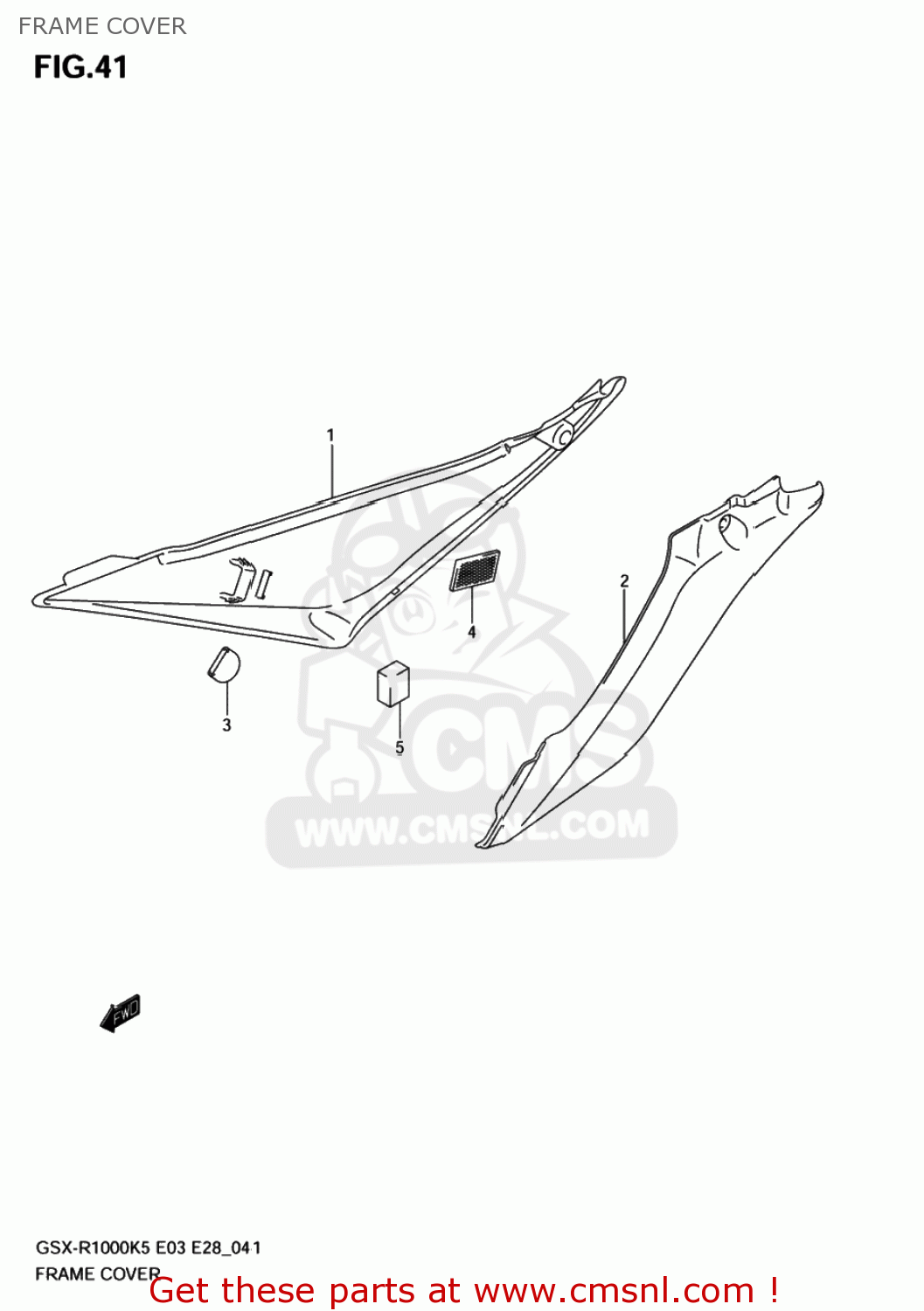

Frame cover diagram GSXR1000 2006 (K6) USA (E03)

FRAME COVER GSXR1000 2006 (K6) USA (E03)

FRAME COVER GSXR1000 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711141G00291
ref: 1

COVER,FRAME,R(BLACK)

€ 49.00

2

4721141G00291
ref: 2

COVER,FRAME,L(BLACK)

€ 49.00

3

4427729G00
ref: 3

CUSHION,FUEL TANK SIDE

€ 6.50

4

4457213G00
ref: 4

FASTENER

€ 6.00

5

1712916F00
ref: 5
17798-39G00

CUSHION

€ 5.50
