UNDER COWLING (MODEL K5)
GSXR1000 2006 (K6) USA (E03)

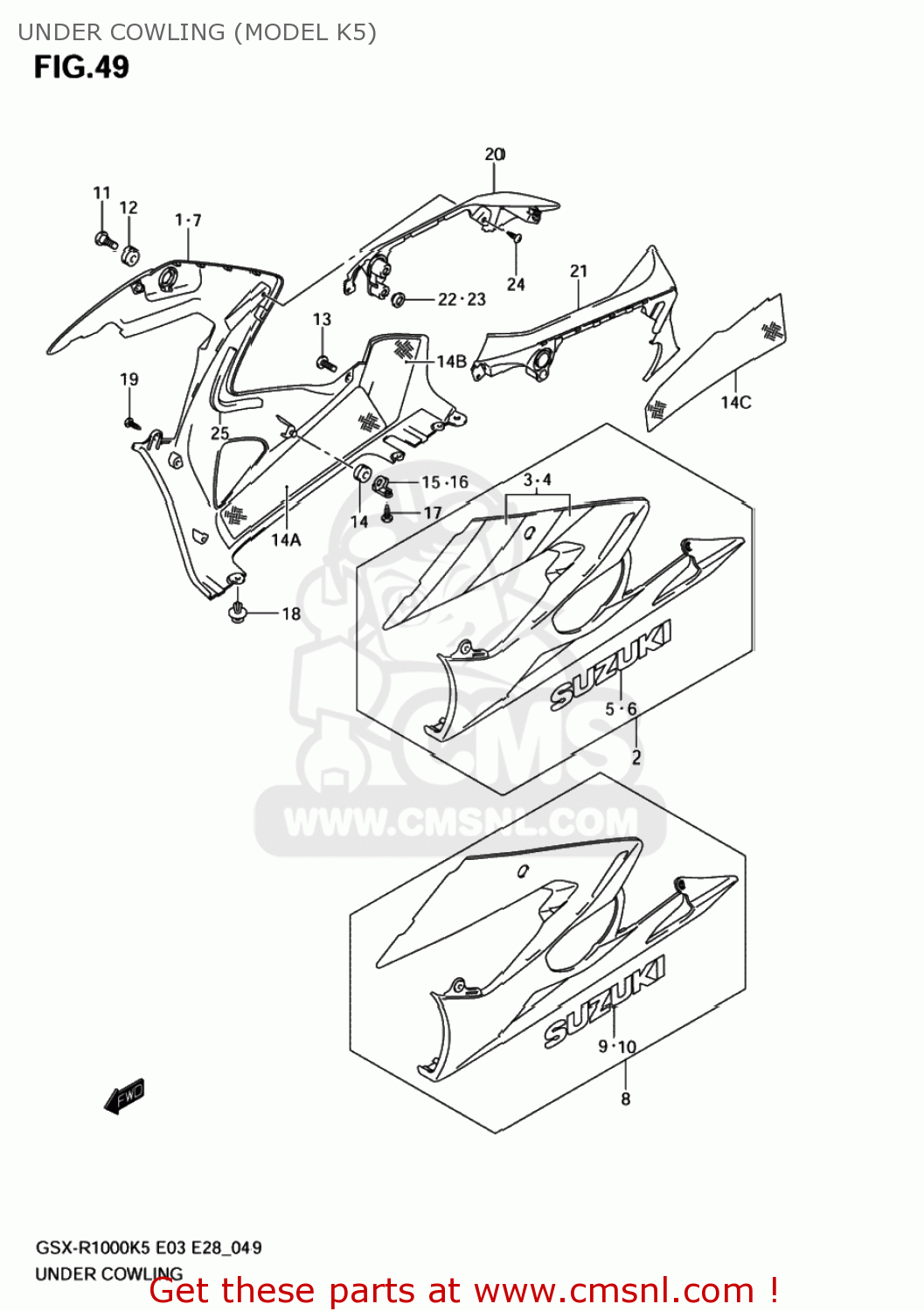

Under cowling (model k5) diagram GSXR1000 2006 (K6) USA (E03)
UNDER COWLING (MODEL K5) GSXR1000 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9447041G10YBD
ref: 1-1
COWLING,UNDER,R
€ 549.50
1-2
9447041G10YEC
ref: 1-2
COWLING,UNDER,R
€ 489.50
1-3
9447041G10YHG
ref: 1-3
COWLING,UNDER,R
€ 419.50
2-1
9448041G10YBD
ref: 2-1
94480-41G11-YBD
COWL,UNDER,L F
€ 475.00
2-2
9448041G10YEC
ref: 2-2
94480-41G11-YEC
COWL,UNDER,L F
€ 470.00
2-3
9448041G10YHG
ref: 2-3
94480-41G11-YHG
COWL,UNDER,L F
€ 419.50
3-1
6818041G00CCE
ref: 3-1
TAPE SET,UNDER COWLING,R
€ 24.50
3-2
6818041G00CCF
ref: 3-2
TAPE SET,UNDER COWLING,R
€ 23.50
3-3
6818041G00CCG
ref: 3-3
TAPE SET,UNDER COWLING,R
€ 23.50
4-1
6819041G00CCE
ref: 4-1
TAPE SET,UNDER COWLING,L
€ 30.00
4-2
6819041G00CCF
ref: 4-2
TAPE SET,UNDER COWLING,L
€ 28.00
4-3
6819041G00CCG
ref: 4-3
TAPE SET,UNDER COWLING,L
€ 23.50
5
6818141G00019
ref: 5
EMBLEM,SUZUKI,R
€ 36.50
6
6819141G00019
ref: 6
EMBLEM,SUZUKI,L
€ 36.50
7
9447041G20YAD
ref: 7
COWLING,UNDER,R
€ 517.50
8
9448041G20YAD
ref: 8
COWLING
€ 470.00
9
6818141G00YU8
ref: 9
EMBLEM,SUZUKI,R
€ 36.50
10
6819141G00YU8
ref: 10
EMBLEM,SUZUKI,L
€ 25.00
11
0913906126
ref: 11
SCREW(6X20)
€ 4.00
12
0932009016
ref: 12
CUSHION
€ 2.50
13
0913905064
ref: 13
SCREW(5X13)
€ 2.50
14
0932008028
ref: 14
CUSHION
€ 2.50
14A
9447241G00
ref: 14A
SHIELD,HEAT UNDER NO.1,R
€ 14.50
14B
9447241G10
ref: 14B
SHIELD,HEAT UNDER NO.2,R
€ 9.50
14C
9448241G00
ref: 14C
SHIELD,HEAT UNDER,L
€ 28.00
15
9453041G00
ref: 15
BRACKET,UNDER COWLING LWR,R
€ 6.50
16
9454041G00
ref: 16
94540-41G01
BRACKET,UNDER
€ 9.00
17
0155006123
ref: 17
01550-0612A
BOLT
€ 2.50
18
9447935F00
ref: 18
CLIP
€ 3.50
19
0354105163
ref: 19
03541-0516A
SCREW
€ 1.50
20
9447541G00
ref: 20
94475-41G01
COVER
€ 99.00
21
9448541G00
ref: 21
94485-41G01
COVER
€ 113.00
22
0932110018
ref: 22
CUSHION
€ 5.00
23
0932110040
ref: 23
CUSHION
€ 12.00
24
0354105163
ref: 24
03541-0516A
SCREW
€ 1.50
25
9447641G00
ref: 25
CUSHION,UNDER COWLING,R
€ 6.50
