STAND

GSXR1000 2006 (K6) USA (E03)

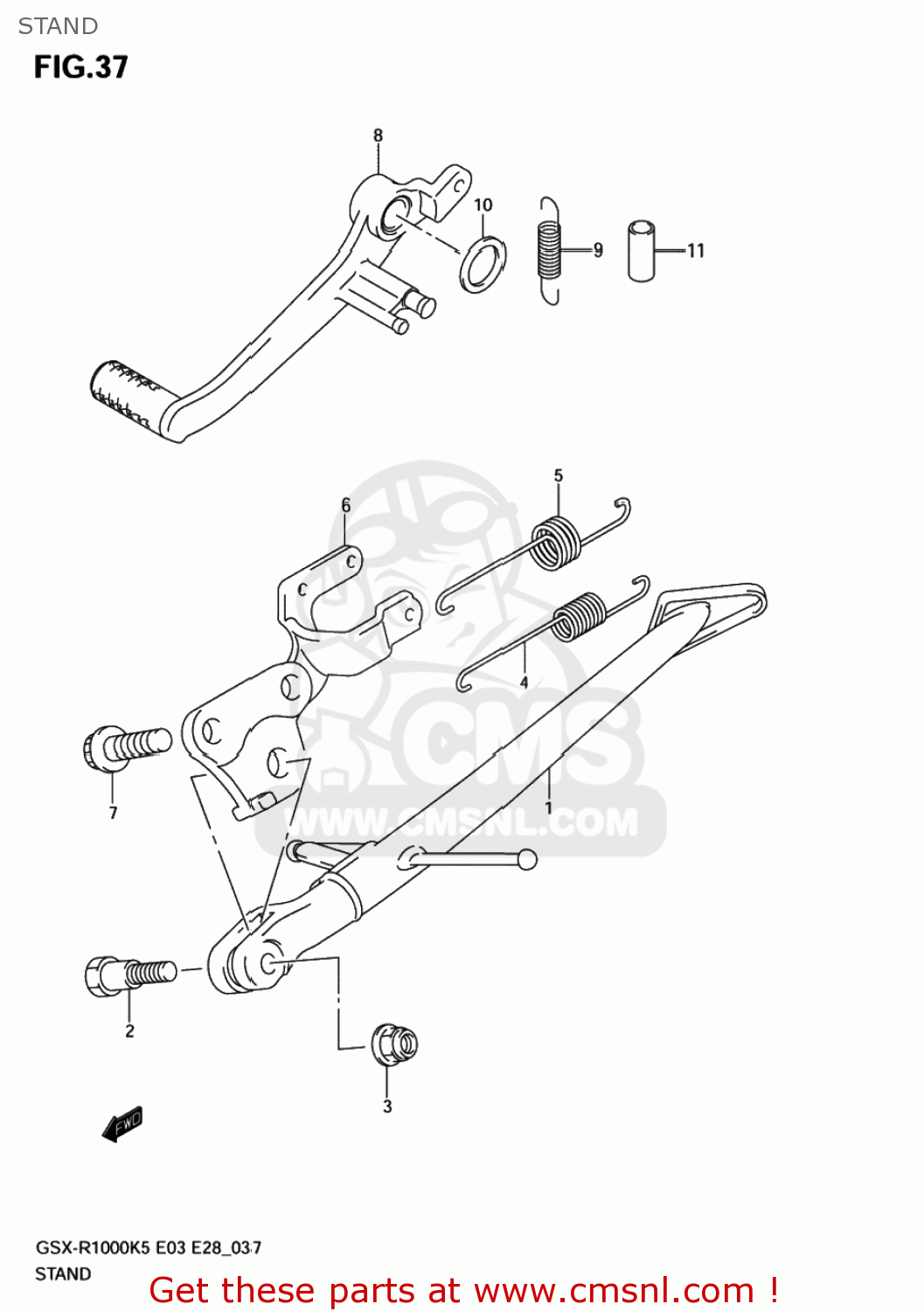

Stand diagram GSXR1000 2006 (K6) USA (E03)

STAND GSXR1000 2006 (K6) USA (E03)

STAND GSXR1000 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231040F20
ref: 1

STAND,PROP

€ 161.00

2

0911110059
ref: 2

BOLT(10X21)

€ 7.00

3

0915910103
ref: 3

NUT

€ 3.00

4

0944314070
ref: 4

SPRING

€ 5.00

5

0944319016
ref: 5

SPRING

€ 5.50

6

4233035F02
ref: 6

BRACKET,PROP STAND

€ 80.50

7

0910610064
ref: 7

BOLT(10X28)

€ 4.50

8

4311041G00
ref: 8

PEDAL,BRAKE

€ 100.50

9

0944311033
ref: 9

SPRING

€ 4.50

10

0916018022
ref: 10

WASHER(18X24X1)

€ 3.00

11

0935211153600
ref: 11

HOSE(11X15X600)

€ 13.50
