WATER PUMP
GSXR1000 2006 (K6) USA (E03)

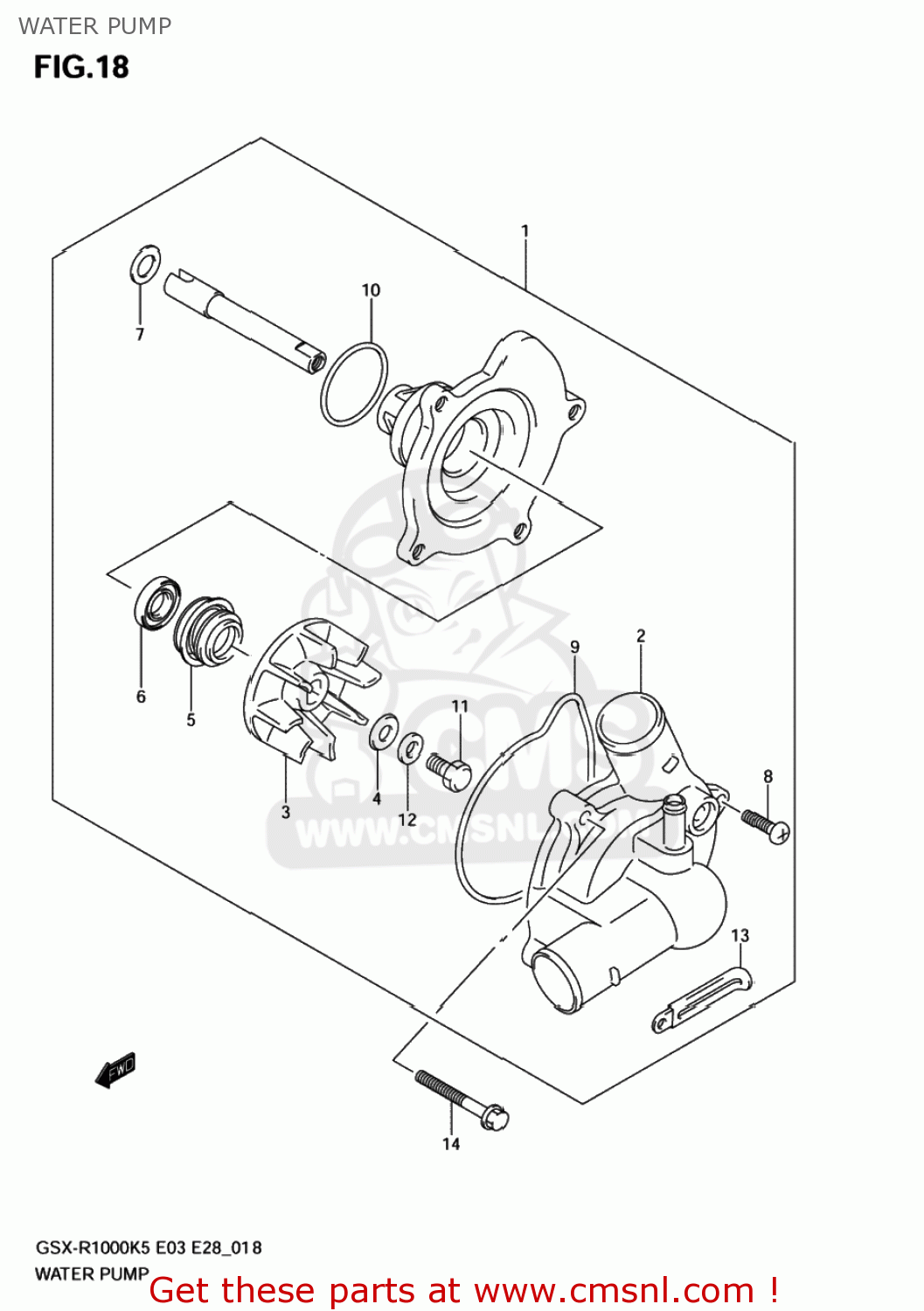

Water pump diagram GSXR1000 2006 (K6) USA (E03)
WATER PUMP GSXR1000 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740041G00
ref: 1
PUMP ASSY,WATER
€ 400.50
2
1741141G00
ref: 2
17410-41G00
CASE WATERPUMP
€ 191.00
3
1749117E01
ref: 3
IMPELLER
€ 15.00
4
0916806025
ref: 4
GASKET(6X15X2.2) (NAS)
€ 3.00
5
1747002F10
ref: 5
SEAL,MECHANICAL
€ 21.50
6
0928310004
ref: 6
SEAL,OIL(10X21X5)
€ 4.50
7
1743207G00
ref: 7
WASHER
€ 2.00
8
0211206163
ref: 8
02112-0616A
SCREW 6X16
€ 2.00
9
1741833400
ref: 9
O RING
€ 4.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
€ 13.00
11
0910006099
ref: 11
BOLT(6X13)
€ 2.00
12
0916406006
ref: 12
WASHER
€ 2.50
13
0940406429
ref: 13
CLAMP(L:45)
€ 2.50
14
0154706353
ref: 14
01547-0635B
BOLT
€ 3.00
