REAR COMBINATION LAMP
GSXR1000 2006 (K6) USA (E03)

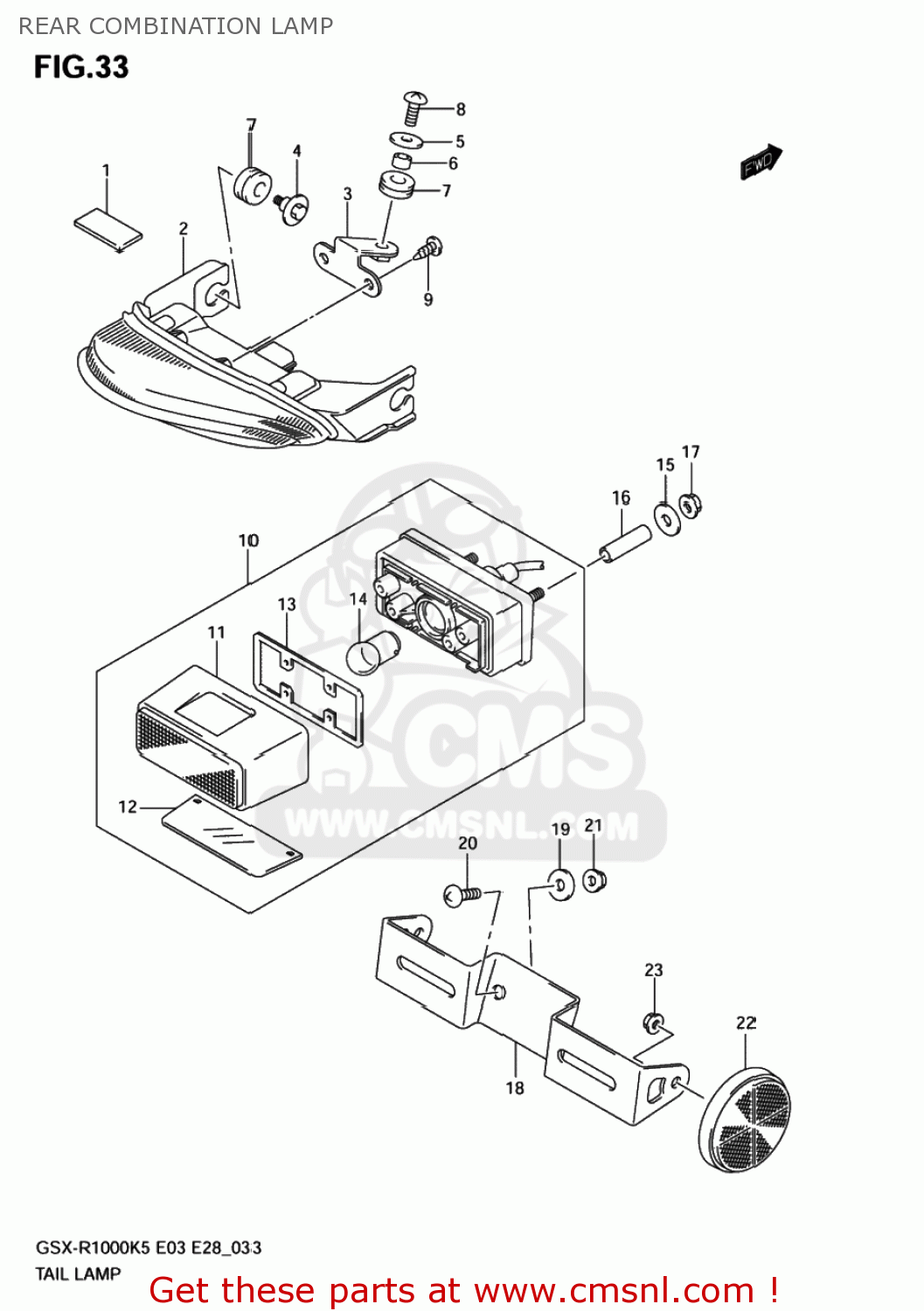

Rear combination lamp diagram GSXR1000 2006 (K6) USA (E03)
REAR COMBINATION LAMP GSXR1000 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3365137000
ref: 1
PROTECTOR(170X95X3.0)
€ 5.00
1
3365137000
ref: 1
PROTECTOR(170X95X3.0)
€ 5.00
2
3571041G30
ref: 2
LAMP ASSY,RR COMBINATION
€ 118.50
3
3572641G00
ref: 3
BRACKET,RR COMBINATION LAMP
€ 3.50
4
0913905080
ref: 4
SCREW(5X16.2)
€ 3.00
5
0916006077
ref: 5
WASHER(6.5X20X1.2)
€ 2.00
6
0918006286
ref: 6
SPACER(6.5X10X9.4)
€ 2.50
7
0932010054
ref: 7
CUSHION
€ 2.00
8
0214206203
ref: 8
02142-0620A
SCREW
€ 2.00
9
0354105123
ref: 9
03541-0512A
SCREW
€ 2.00
10
3591041G30
ref: 10
35910-41G31
LAMP ASSY,LICE
€ 62.50
11
3591741G00
ref: 11
COVER,LICENSE LAMP
€ 27.00
12
3591241G00
ref: 12
LENS LICENCE
€ 19.50
13
3591341G00
ref: 13
GASKET (NAS)
€ 19.00
14
0947112140
ref: 14
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
15
0916006077
ref: 15
WASHER(6.5X20X1.2)
€ 2.00
16
0918006278
ref: 16
SPACER(6.5X9X33.3)
€ 3.50
17
0831610063
ref: 17
08316-1006B
NUT
€ 2.50
18
3592741G30
ref: 18
BRACKET,LICENSE PLATE
€ 0.00
19
0916006077
ref: 19
WASHER(6.5X20X1.2)
€ 2.00
20
0214206163
ref: 20
02142-0616A
SCREW
€ 2.50
21
0831610063
ref: 21
08316-1006B
NUT
€ 2.50
22
3597014A20
ref: 22
REFLECTOR ASSY,RR SIDE
€ 11.00
23
0831610053
ref: 23
08316-1005A
NUT
€ 2.50
