OIL COOLER

GSXR1000 2006 (K6) USA (E03)

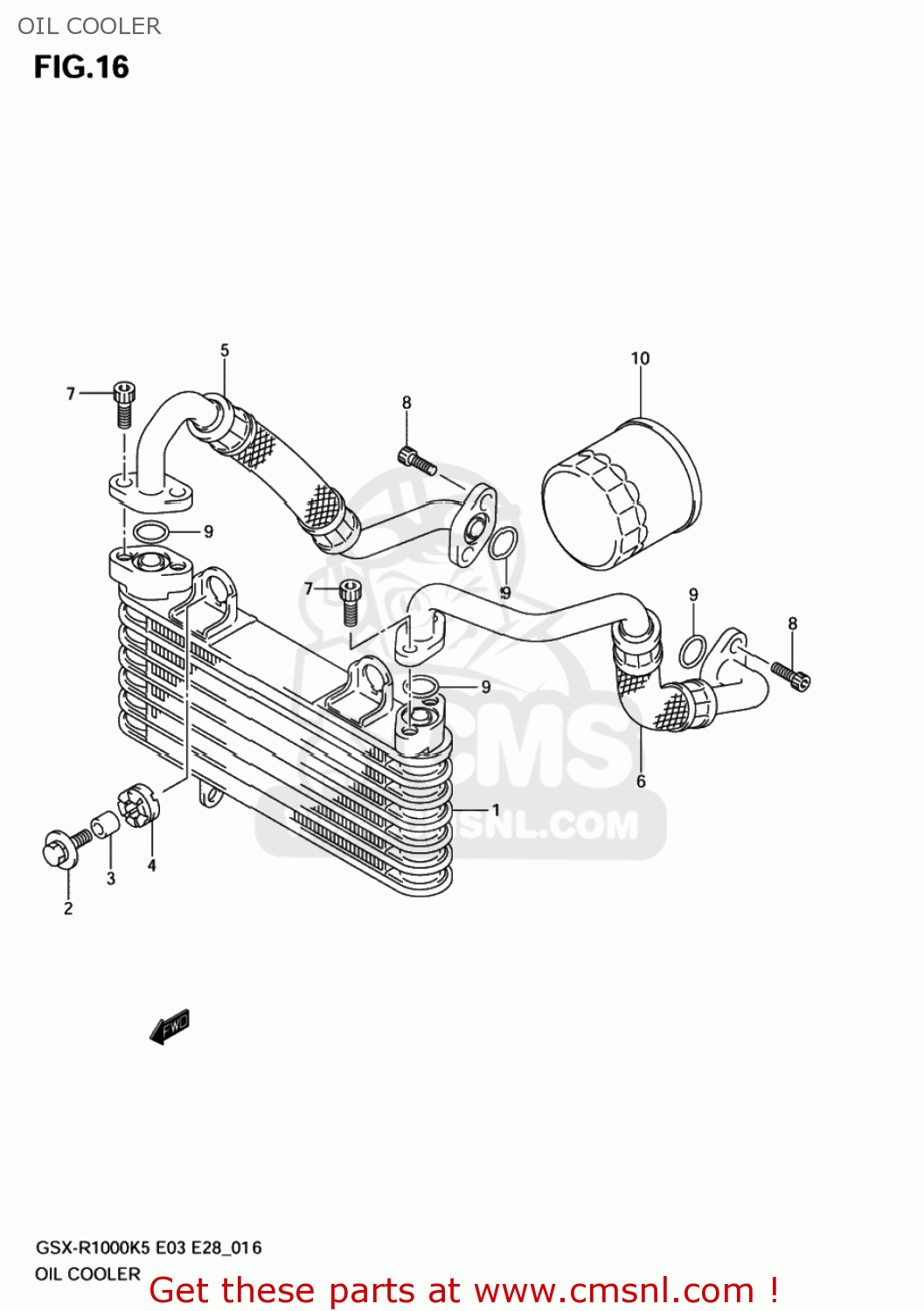

Oil cooler diagram GSXR1000 2006 (K6) USA (E03)

OIL COOLER GSXR1000 2006 (K6) USA (E03)

OIL COOLER GSXR1000 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660040F10
ref: 1

COOLER ASSY,OIL

€ 450.00

2

0911806097
ref: 2

BOLT(6X25)

€ 2.50

3

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

4

0932010055
ref: 4

CUSHION

€ 3.50

5

1646041G00
ref: 5

HOSE,OIL COOLER,R

€ 171.00

6

1647041G00
ref: 6

HOSE,OIL COOLER,L

€ 152.50

7

0910606096
ref: 7

BOLT(6X20)

€ 4.00

8

0910606073
ref: 8

BOLT(6X16)

€ 2.50

9

0928012012
ref: 9

O RING(D:2.4,ID:11.8)

€ 5.00

10

1651003G00X07
ref: 10
16510-07J00

FILTER ASSY,EN

€ 12.50
