FRAME

GSXR1000Z 2004 (K4) USA (E03)

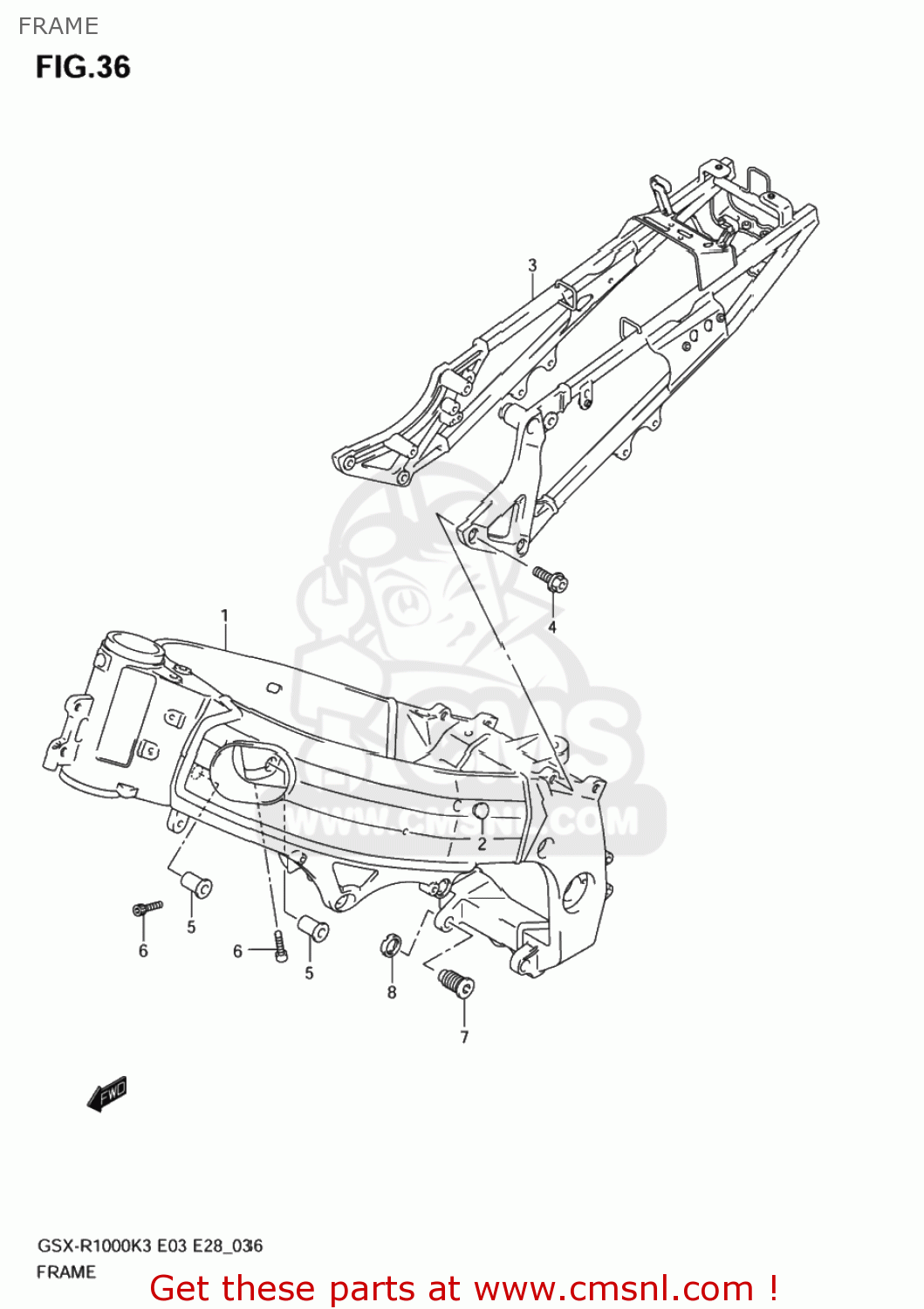

Frame diagram GSXR1000Z 2004 (K4) USA (E03)

FRAME GSXR1000Z 2004 (K4) USA (E03)

FRAME GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110018G00YAP
ref: 1-1
41100-18G01-YAP

FRAME COMP

€ 1,699.50

1-2

4110018G01YAP
ref: 1-2

FRAME(BLACK)

€ 1,699.50

2

4358518G00
ref: 2

CAP,TANK RAIL

€ 3.50

3

4120018G00YAP
ref: 3

RAIL,SEAT(BLACK)

€ 1,053.50

4

4123318G00
ref: 4

BOLT,SEAT RAIL

€ 7.50

5

4191140F01
ref: 5

SPACER,ENGINE MOUNTING

€ 16.50

6

0910608149
ref: 6
09106-08170

BOLT

€ 3.00

7

4192135F00
ref: 7

BOLT,CRANK CASE ADJUST

€ 35.00

8

4192218G00
ref: 8

NUT,ADJUST BOLT

€ 23.50
