THROTTLE BODY HOSE/JOINT

GSXR1000Z 2004 (K4) USA (E03)

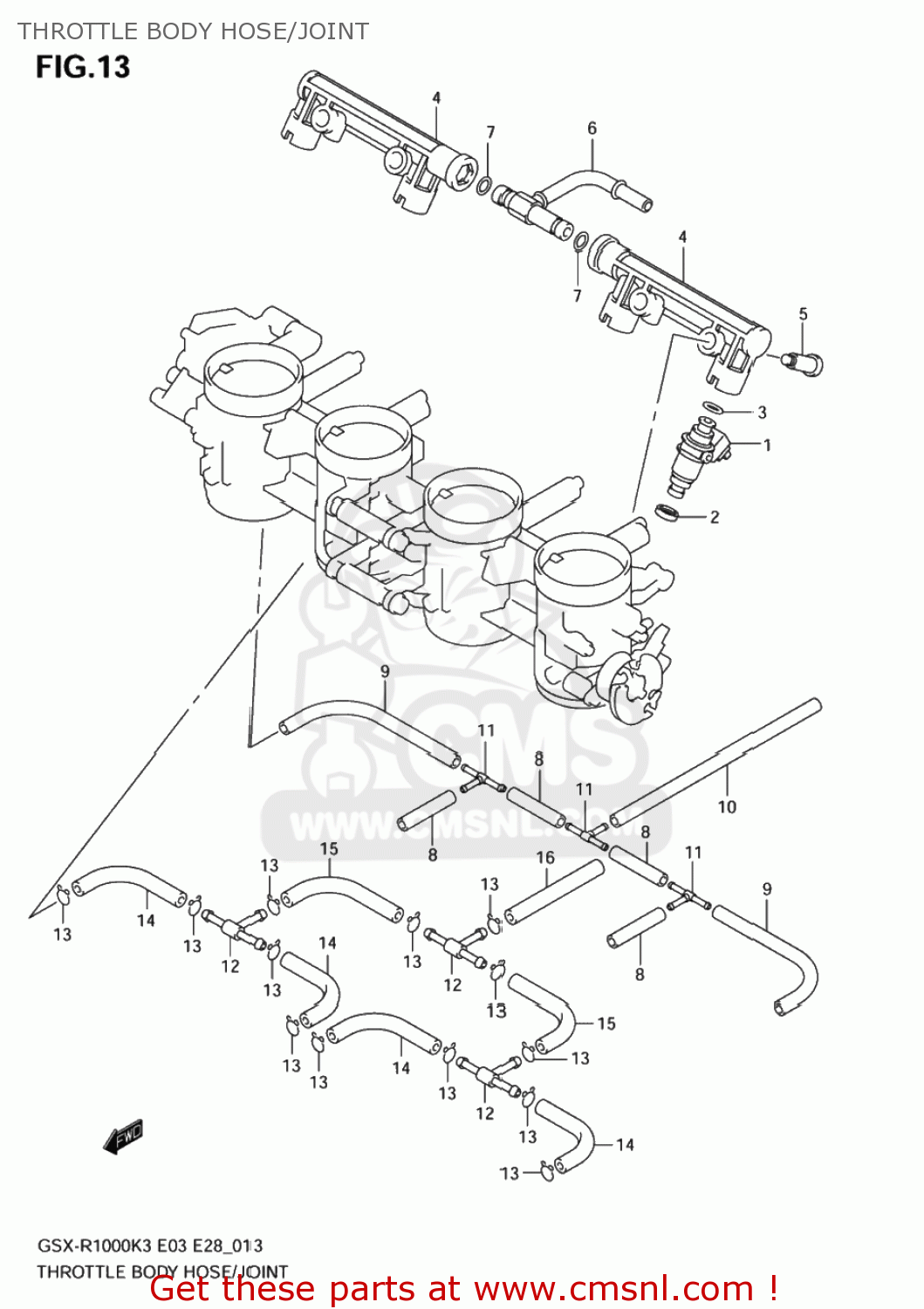

Throttle body hose/joint diagram GSXR1000Z 2004 (K4) USA (E03)

THROTTLE BODY HOSE/JOINT GSXR1000Z 2004 (K4) USA (E03)

THROTTLE BODY HOSE/JOINT GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1571010G00
ref: 1

INJECTOR ASSY

€ 313.50

2

1572210G00
ref: 2

O RING

€ 13.00

3

1572110G00
ref: 3

O RING

€ 7.00

4

1347118G00
ref: 4

PIPE,FUEL

€ 27.00

5

1360135F00
ref: 5

SCREW

€ 7.00

6

1347335F01
ref: 6

JOINT

€ 82.00

7

1572124F00
ref: 7

O RING

€ 7.50

8

1369724F00
ref: 8

HOSE,RUBBER(L:35)

€ 2.50

9

1369724F20
ref: 9

HOSE,RUBBER(L:100)

€ 3.50

10

1369735F00
ref: 10

HOSE,RUBBER(3X7X170)

€ 5.50

11

1347124F30
ref: 11

JOINT

€ 11.50

12

1347140F50
ref: 12

JOINT

€ 0.00

13

1367126E20
ref: 13

CLIP

€ 0.00

14

1368140F50
ref: 14

PIPE

€ 0.00

15

1368240F50
ref: 15

PIPE

€ 0.00

16

1368340F50
ref: 16

PIPE

€ 0.00
