GENERATOR

GSXR1000Z 2004 (K4) USA (E03)

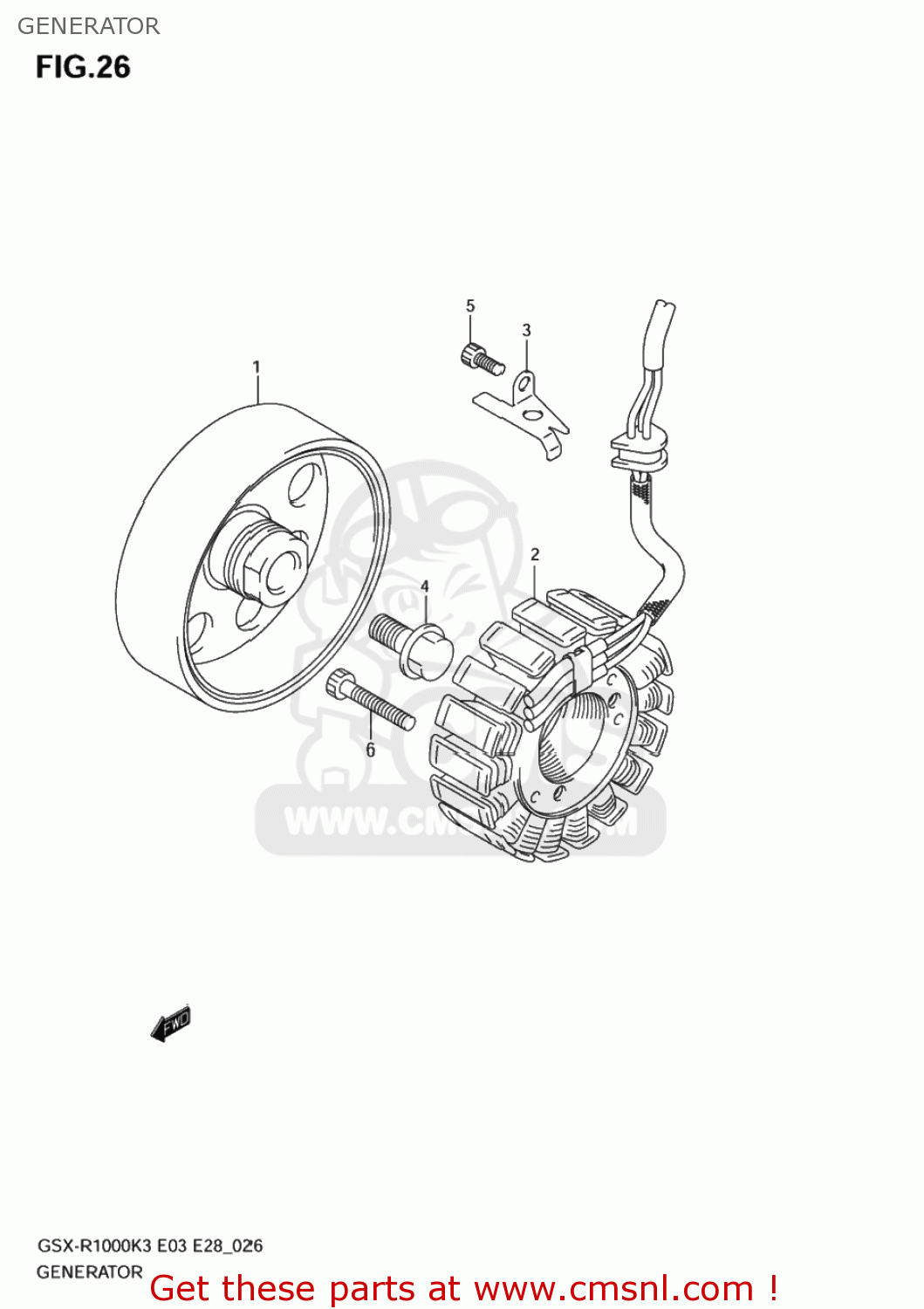

Generator diagram GSXR1000Z 2004 (K4) USA (E03)

GENERATOR GSXR1000Z 2004 (K4) USA (E03)

GENERATOR GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140240F00
ref: 1

ROTOR ASSY

€ 458.00

2

3140118G00
ref: 2

STARTER ASSY

€ 490.00

3

3237133E00
ref: 3

CLAMP,MAGNETO LEAD

€ 3.50

4

0910312005
ref: 4

BOLT(12X23)

€ 5.50

5

0713006123
ref: 5
07130-0612A

BOLT,STRANGER

€ 2.50

6

0713006353
ref: 6
07130-0635B

BOLT

€ 3.50
