HEADLAMP

GSXR1000Z 2004 (K4) USA (E03)

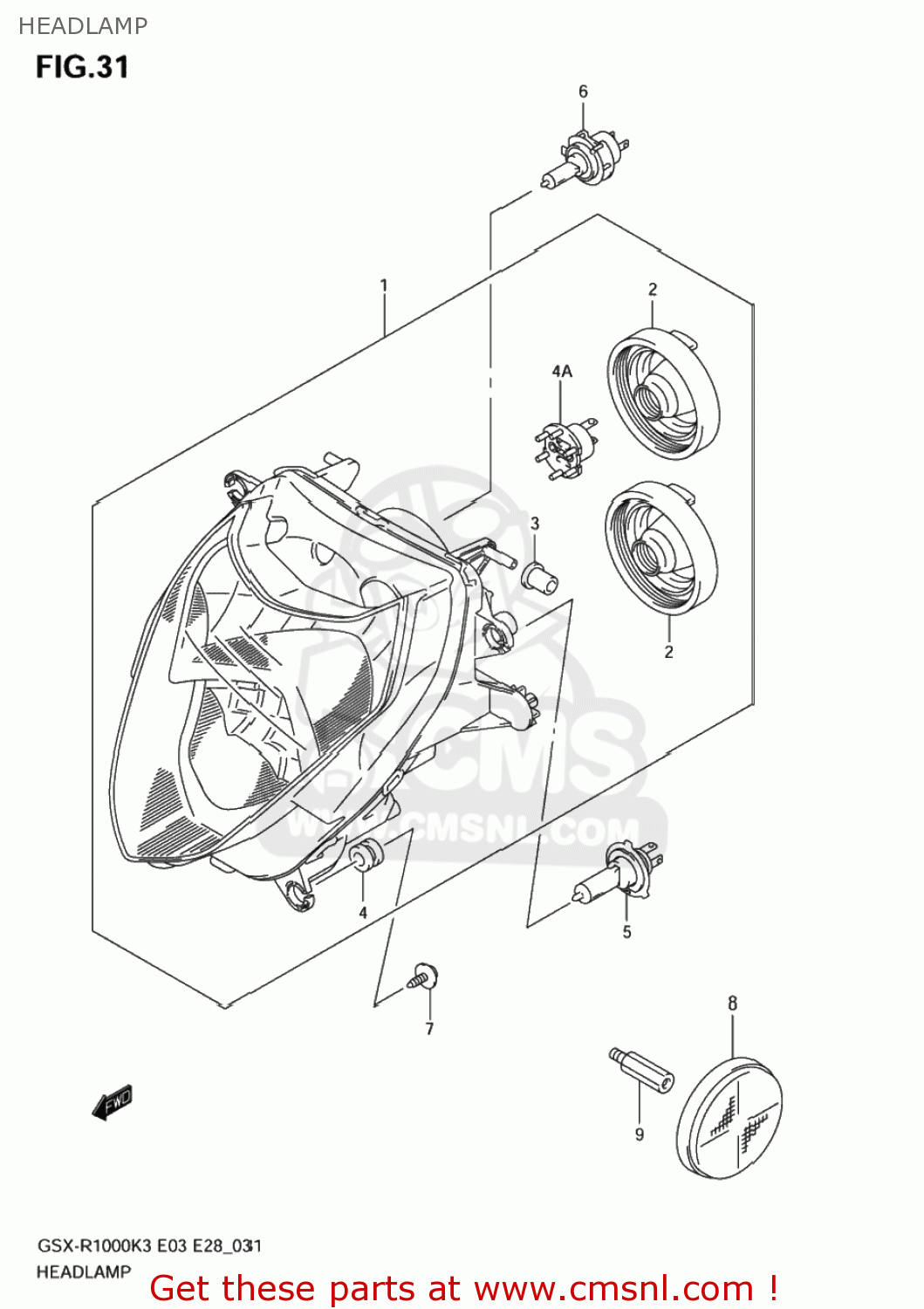

Headlamp diagram GSXR1000Z 2004 (K4) USA (E03)

HEADLAMP GSXR1000Z 2004 (K4) USA (E03)

HEADLAMP GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510018G30999
ref: 1

HEADLAMP ASSY

€ 0.00

2

3517964G00
ref: 2

COVER,SOCKET

€ 8.00

3

0932007010
ref: 3

CUSHION

€ 3.50

4

0932009039
ref: 4

CUSHION

€ 6.00

4A

3417533E50
ref: 4A

ADAPTER ASSY

€ 20.50

5

0947112182
ref: 5

BULB(12V60/55W,H4)

€ 8.00

6

0947112188
ref: 6

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

7

0913605062
ref: 7

SCREW(5X15)

€ 2.50

8

3595014A00
ref: 8

REFLECTOR,REFLEX FR

€ 15.00

9

0911906104
ref: 9

BOLT

€ 9.50
