REAR FENDER

GSXR1000Z 2004 (K4) USA (E03)

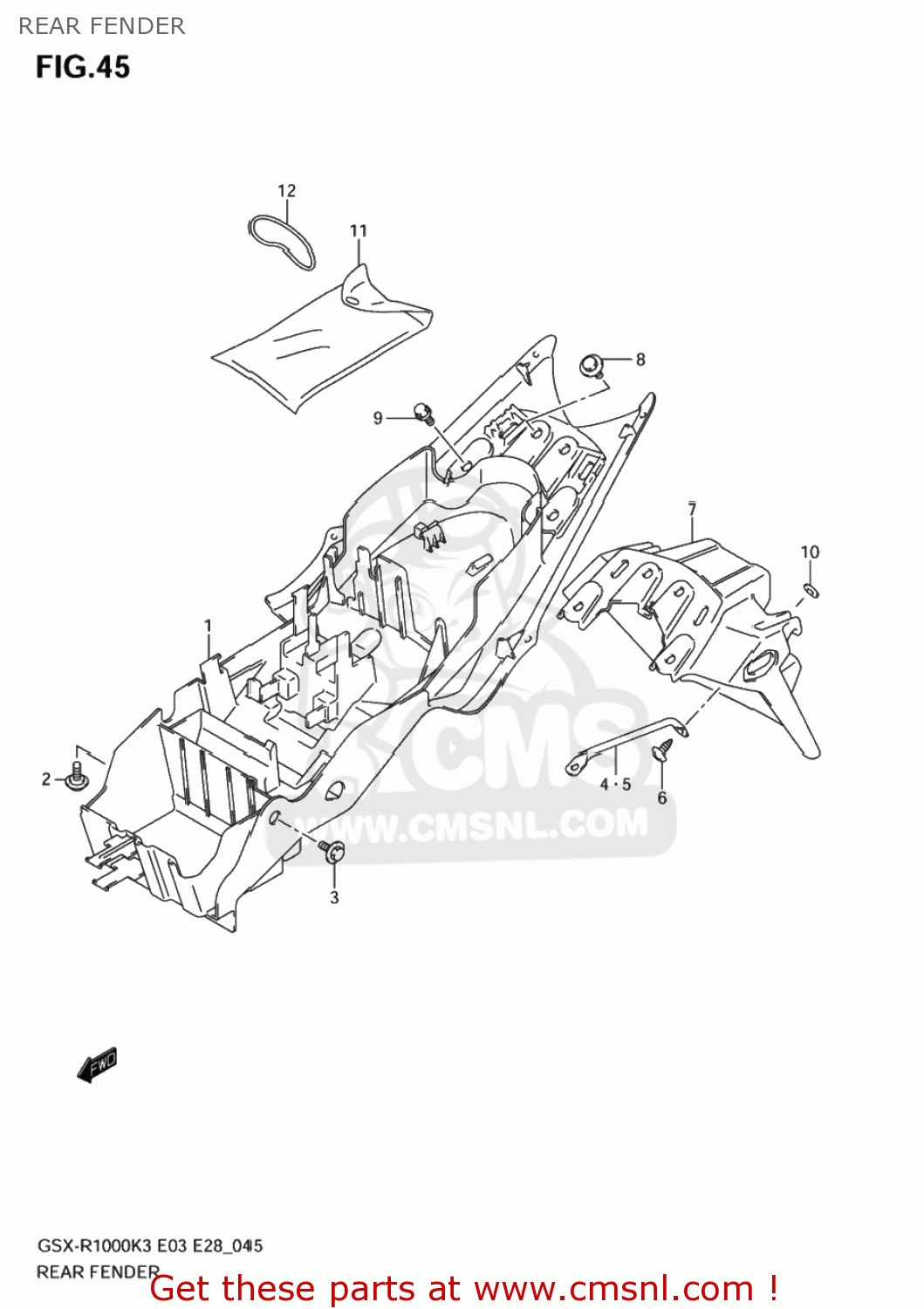

Rear fender diagram GSXR1000Z 2004 (K4) USA (E03)

REAR FENDER GSXR1000Z 2004 (K4) USA (E03)

REAR FENDER GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311018G00291
ref: 1-1

FENDER,RR FR

€ 124.00

1-2

6311018G10291
ref: 1-2

FENDER,RR FR

€ 0.00

2

0911106081
ref: 2

BOLT(6X18)

€ 4.50

3

0911606168
ref: 3

BOLT(6X16)

€ 2.50

4

6312118G00
ref: 4
63121-18G01

REINF,REAR FEN

€ 16.00

5

6312218G00
ref: 5
63122-18G01

REINF,REAR FEN

€ 14.50

6

0354206163
ref: 6
03541-0616A

SCREW

€ 2.00

7

6311218G10291
ref: 7
63112-18G01-291

FENDER,RR RR

€ 38.50

8

0911606168
ref: 8

BOLT(6X16)

€ 2.50

9

0155006163
ref: 9
01550-0616A

BOLT

€ 2.50

10

0832201063
ref: 10
08322-0106B

WASHER

€ 2.00

11

0980021039
ref: 11

TOOL ASSY

€ 73.00

12

0928061002
ref: 12

O RING(D:3.5,ID:61)

€ 5.00
