REAR CUSHION LEVER
GSXR1000Z 2004 (K4) USA (E03)

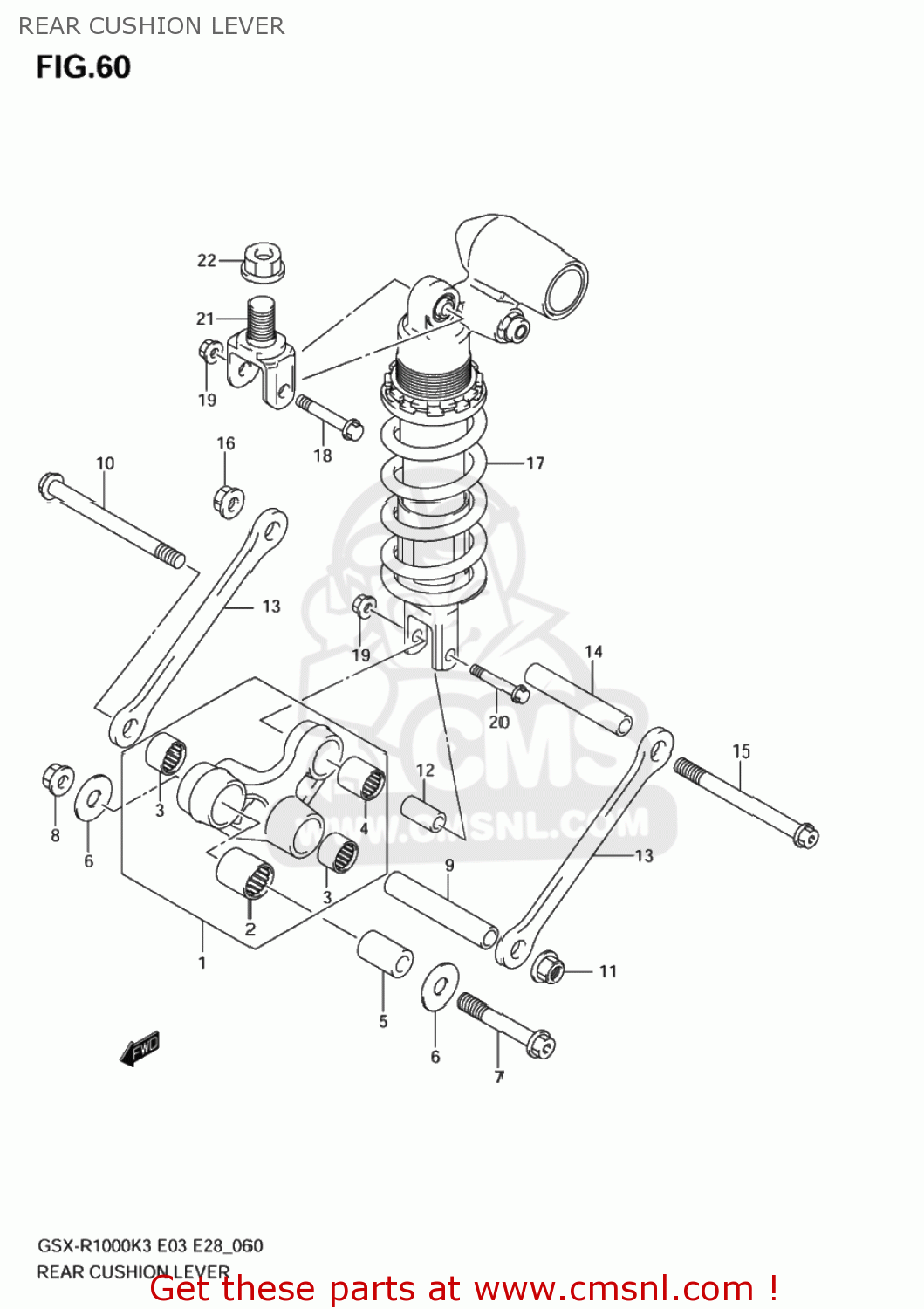

Rear cushion lever diagram GSXR1000Z 2004 (K4) USA (E03)
REAR CUSHION LEVER GSXR1000Z 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260035810
ref: 1
62600-35870
LEVER SET,REAR CUSHION
€ 253.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268412C00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 12.50
6
0916012037
ref: 6
WASHER(12X34X1)
€ 4.00
7
6265835F00
ref: 7
BOLT,RR CUSHION LEVER FR
€ 36.50
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
6262633D00
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 17.50
10
6262135F00
ref: 10
BOLT,RR CUSHION LEVER CTR
€ 28.50
11
0831931128
ref: 11
08319-3112A
NUT 12MM
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264135F00
ref: 13
ROD,RR CUSHION
€ 51.50
14
6262633D00
ref: 14
SPACER,RR CUSHION LEVER CTR
€ 17.50
15
6262135F00
ref: 15
BOLT,RR CUSHION LEVER CTR
€ 28.50
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17-1
6210040F30163
ref: 17-1
ABSORBER ASSY,RR SHOCK(YELLOW)
€ 1,217.50
17-2
6210040F40163
ref: 17-2
ABSORBER ASSY,RR SHOCK(YELLOW)
€ 0.00
18
0910310143
ref: 18
BOLT(10X55)
€ 3.50
19
0831931107
ref: 19
NUT
€ 3.00
20
0910310143
ref: 20
BOLT(10X55)
€ 3.50
21
6299335F00
ref: 21
BRACKET,RR SHOCK ABSORBER UPR
€ 113.00
22
0915920006
ref: 22
NUT
€ 19.00
